RG 58 C/U

XBK-Kabel data line series RG-58C/U

PVC coaxial cables with 50Ohm impedance and a PE insulation. These cables have a Cu wire as well as a Cu-braided shielding. They are suitable for data communication and tinned. We offer the type RG 58 C/U  of this XBK-Kabel series.

  • inner conductor composition: 19x0,18mm
  • outer diameter: Ø4,95mm
  • colour: black
  • rated capacitance: 100pF/m
  • rated impedance: 50Ω

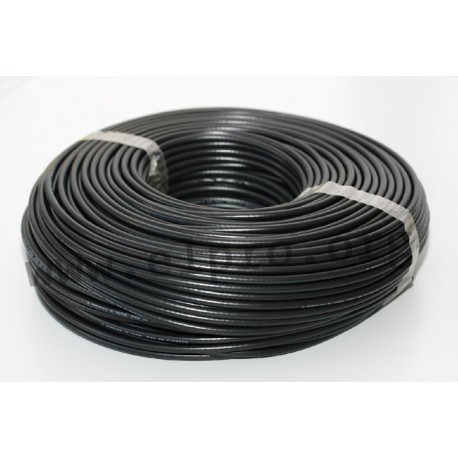

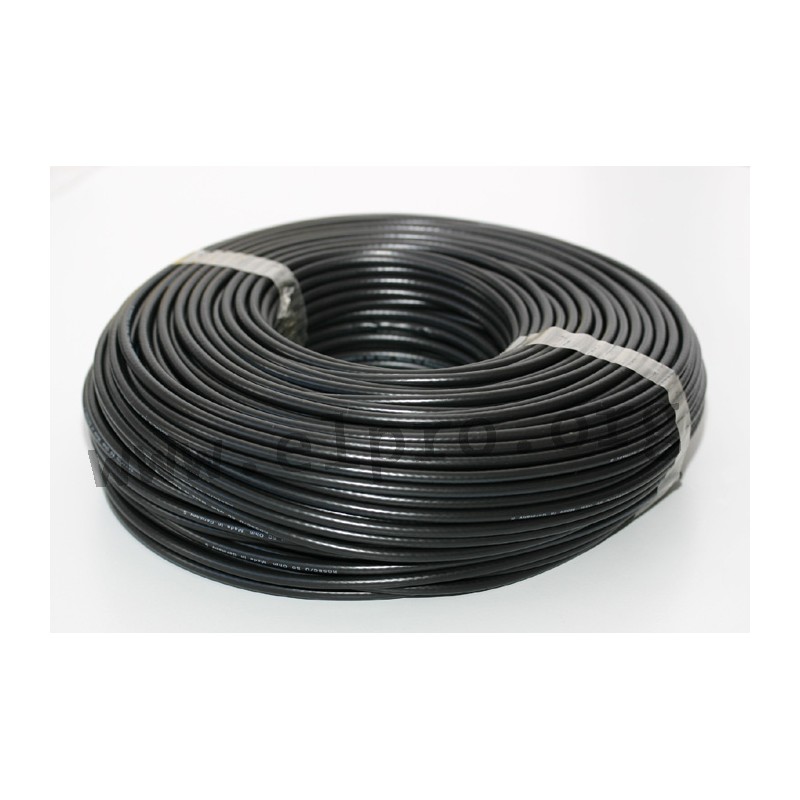

  • one unit equals a 100m ring

Matching protective sleeves

RG 58 C/U

RG 58 C/U

16442 RG 58 C/U 30090201 100M RING 30090201 100M RING XBK-Kabel data line series RG-58C/U. PVC coaxial cables with 50Ohm impedance and a PE insulation. These cables have a Cu wire as well as a Cu-braided shielding. They are suitable for data communication and tinned. We offer the type RG 58 C/U  of this XBK-Kabel series. inner conductor composition: 19x0,18mm outer diameter: Ø4,95mm colour: black rated capacitance: 100pF/m rated impedance: 50Ω one unit equals a 100m ring Matching protective sleeves

Specifications

manufacturer
Manufacturer's name 30090201 100M RING
Colour black
Data Sheet

Unit price

0,805 €

Stock: 400
Next incoming goods:
CW 47/2024
500 units

Further delivery:
CW 01/2025

Minimum order quantity 100 units or
multiples of 100.
