H05VK 0,75 weiß

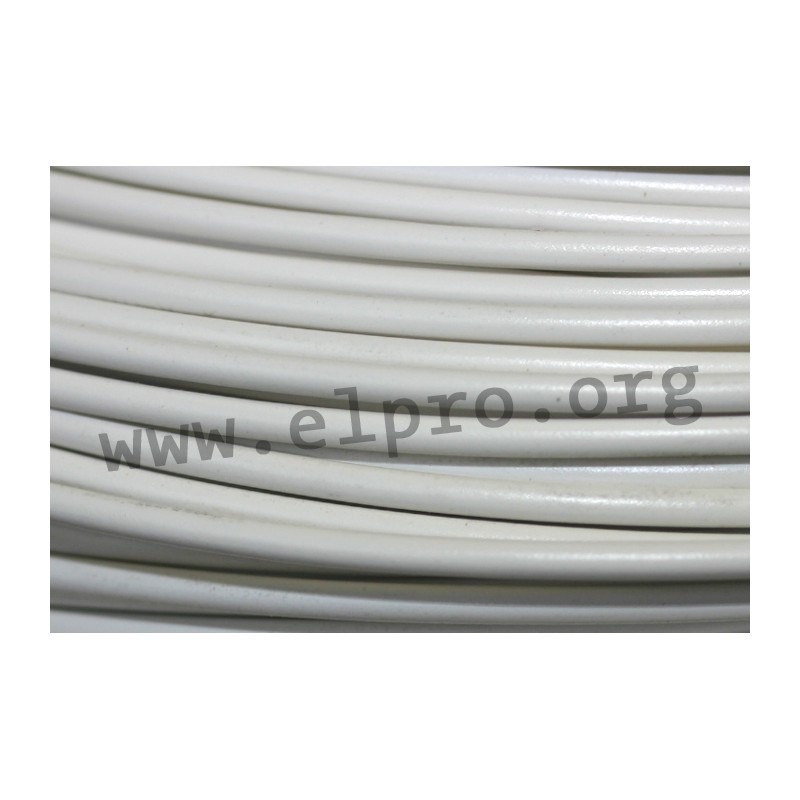

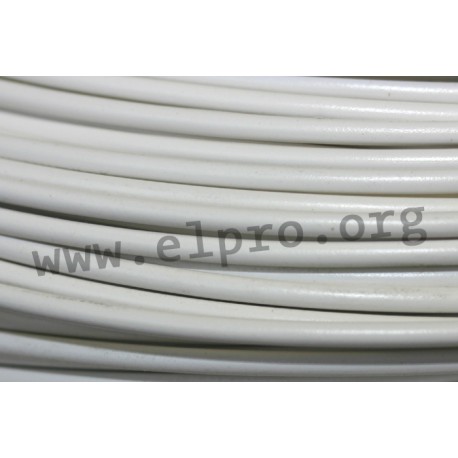

PVC stranded hook-up wires, 0.75mm²

Harmonized PVC stranded hook-up wires for internal wiring of devices, being used to wire lighting, tubes, surfaces and concealed installations for signal systems. This device has a stranded copper wire conductor according to VDE 0295 class 5, is insulated with PVC TI 1 according to HD 21.1 S3, and the conductor identification meets VDE 0293. We offer various types of this series.

  • outer diameter: 2.3mm
  • rated voltage, UO / U: 300V/500V
  • test voltage: 2000V
  • conductor cross-section: 0.75mm²
  • conductor composition: 24x0.195mm
  • minimum bend radius: 4 x diameter
  • temperature range fixed installation: -40 to +70°C
  • temperature range at installation: +5 to +70°C
  • delivery quantity: 100-meter ring
  • price corresponds to one meter
H05VK 0,75 weiß

H05VK 0,75 weiß

30074 H05VK 0,75 weiß 20015102 100M KARTON 20015102 100M KARTON PVC stranded hook-up wires, 0.75mm². Harmonized PVC stranded hook-up wires for internal wiring of devices, being used to wire lighting, tubes, surfaces and concealed installations for signal systems. This device has a stranded copper wire conductor according to VDE 0295 class 5, is insulated with PVC TI 1 according to HD 21.1 S3, and the conductor identification meets VDE 0293. We offer various types of this series. outer diameter: 2.3mm rated voltage, UO / U: 300V/500V test voltage: 2000V conductor cross-section: 0.75mm² conductor composition: 24x0.195mm minimum bend radius: 4 x diameter temperature range fixed installation: -40 to +70°C temperature range at installation: +5 to +70°C delivery quantity: 100-meter ring price corresponds to one meter

Specifications

manufacturer
Manufacturer's name 20015102 100M KARTON
Colour white
Cross section 0,75mm²

Unit price

0,197 €

Stock: 1200
Further delivery:
CW 04/2025

Minimum order quantity 100 units or
multiples of 100.
