> Passive elements>Cables>Control lines>XBK-Kabel PVC control wires, 0,75mm², YSLY, 10123 series>YSLY 3x0,75 grau

Manufacturers

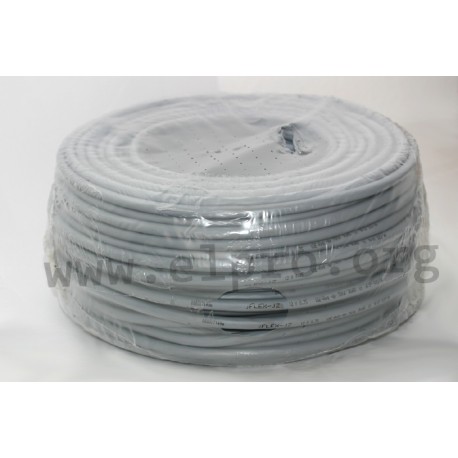

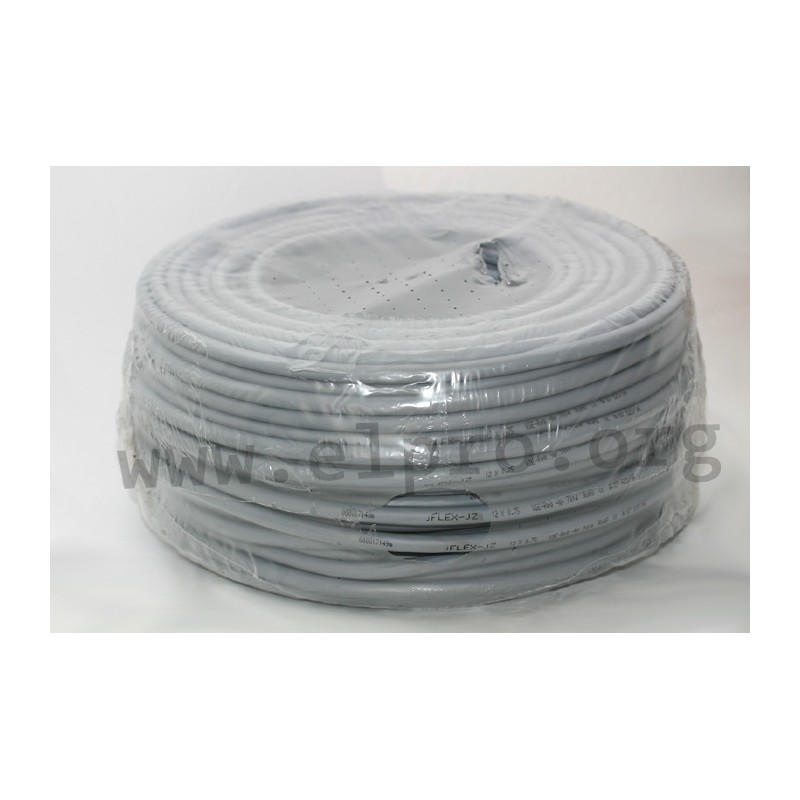

YSLY 3x0,75 grau

PVC control cables

PVC insulated finely stranded wire with Cu strands according to VDE 0295 class 5/IEC Cl.5, in a conductor and jacket with PVC insulation. The conductor is marked with white identification digits, and these control cables have a rated voltage of 300V/500V, as well as a test voltage of 4000V. We offer various types of this XBK-Kabel series.

  • conductor cross-section: 0.75mm²
  • conductor composition: 24x0.195mm
  • colour of jacket: silver-grey (RAL 7001)
  • temperature range moving: -5 to +70°C
  • temperature range fixed installation: -30 to +70°C
  • flammability: flame resistant IEC332.1
  • delivery quantity: 100-meter ring
  • price corresponds to one meter
YSLY 3x0,75 grey

YSLY 3x0,75 grau

30119 YSLY 3x0,75 grau 10123106 100M RING 10123106 100M RING PVC control cables. PVC insulated finely stranded wire with Cu strands according to VDE 0295 class 5/IEC Cl.5, in a conductor and jacket with PVC insulation. The conductor is marked with white identification digits, and these control cables have a rated voltage of 300V/500V, as well as a test voltage of 4000V. We offer various types of this XBK-Kabel series. conductor cross-section: 0.75mm² conductor composition: 24x0.195mm colour of jacket: silver-grey (RAL 7001) temperature range moving: -5 to +70°C temperature range fixed installation: -30 to +70°C flammability: flame resistant IEC332.1 delivery quantity: 100-meter ring price corresponds to one meter

Specifications

manufacturer
Manufacturer's name 10123106 100M RING
Colour grey

Unit price

0,601 €

Stock: 800
Further delivery:
CW 03/2025

Minimum order quantity 100 units or
multiples of 100.
