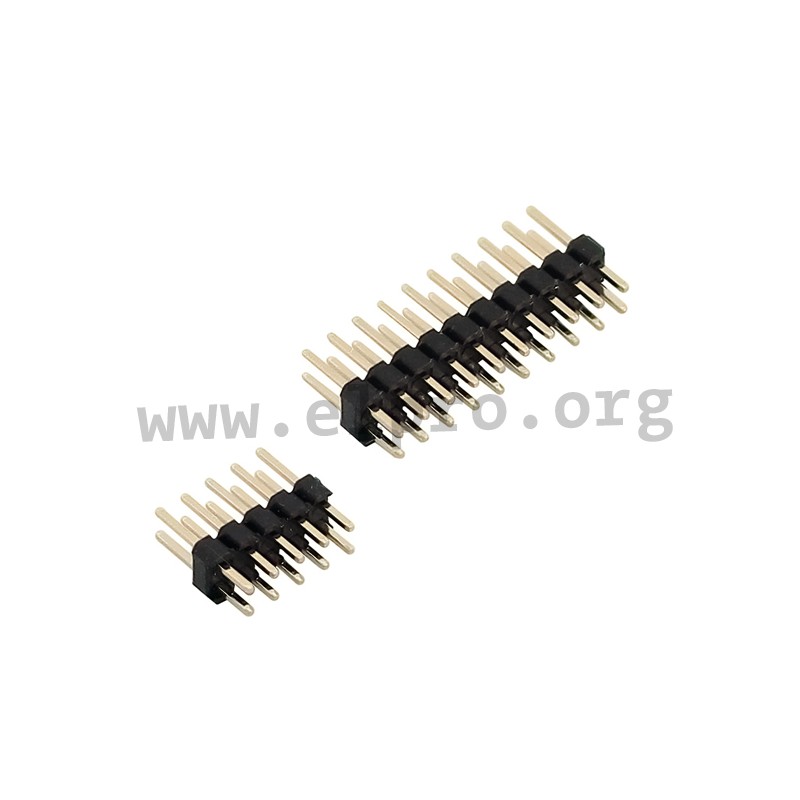

WWD 10 G gold 2,54

W+P pin header series 944

Double-row pin headers with a pitch of 2,54mm. These connectors have gold-plated contacts and an insulator made of thermoplastic (UL94V-0). They have a straight design and are suitable for wave or reflow soldering. We offer the following types of this W+P series: 944-12-010-00 and 944-12-020-00.

  • rated current: 3A
  • rated voltage: 250V AC
  • pitch: 2,54mm
  • operating temperature: -40 to +125°C

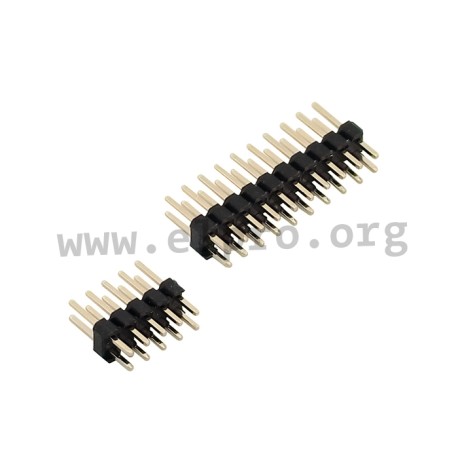

944-12-010-00, WP pin headers, pitch 2,54mm, double-row, straight, gold-plated, 944 series

WWD 10 G gold 2,54

245649 WWD 10 G gold 2,54 944-12-010-00 944-12-010-00 W+P pin header series 944. Double-row pin headers with a pitch of 2,54mm. These connectors have gold-plated contacts and an insulator made of thermoplastic (UL94V-0). They have a straight design and are suitable for wave or reflow soldering. We offer the following types of this W+P series: 944-12-010-00 and 944-12-020-00. rated current: 3A rated voltage: 250V AC pitch: 2,54mm operating temperature: -40 to +125°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 944-12-010-00
Type gold-plated
Number of poles 10
Data Sheet

Unit price

0,09 €

Stock: 663
