WWS 03 G gold 2,54

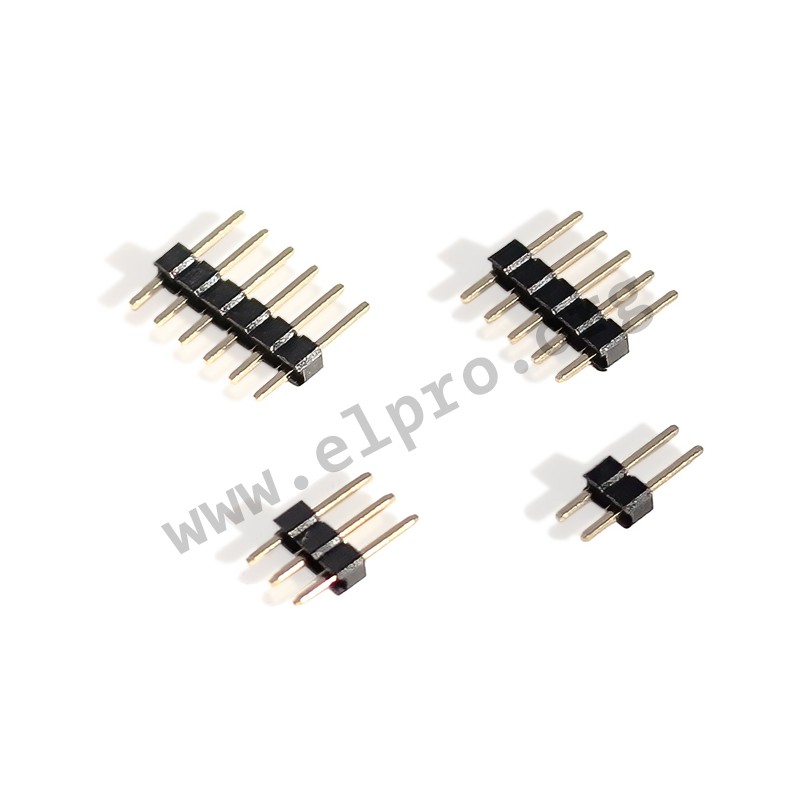

W+P pin header series 943

Single-row pin headers with a pitch of 2,54mm. These connectors have gold-plated contacts and an insulator made of thermoplastic (UL94V-0). We offer the following types of this W+P series: 943-12-002-00, 943-12-003-00, 943-12-005-00, 943-12-006-00 and 943-12-020-00.

  • rated current: 3A
  • rated voltage: 250V AC
  • pitch: 2,54mm
  • operating temperature: -40 to +125°C

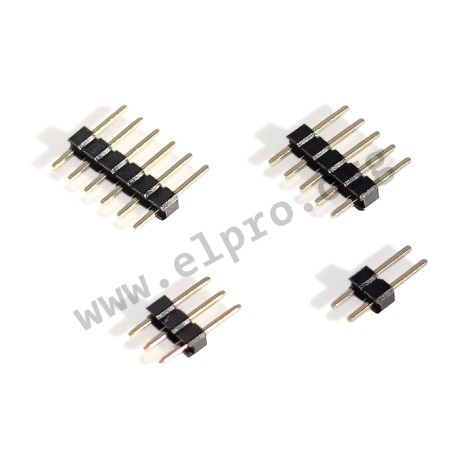

943-12-003-00, WP pin headers, single-row, straight, pitch 2,54mm, gold-plated, 943 series

WWS 03 G gold 2,54

32956 WWS 03 G gold 2,54 943-12-003-00 943-12-003-00 W+P pin header series 943. Single-row pin headers with a pitch of 2,54mm. These connectors have gold-plated contacts and an insulator made of thermoplastic (UL94V-0). We offer the following types of this W+P series: 943-12-002-00, 943-12-003-00, 943-12-005-00, 943-12-006-00 and 943-12-020-00. rated current: 3A rated voltage: 250V AC pitch: 2,54mm operating temperature: -40 to +125°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 943-12-003-00
Type gold-plated
Number of poles 3
Data Sheet

Unit price

0,10 €

Stock: 640
