SQP-5 12 R

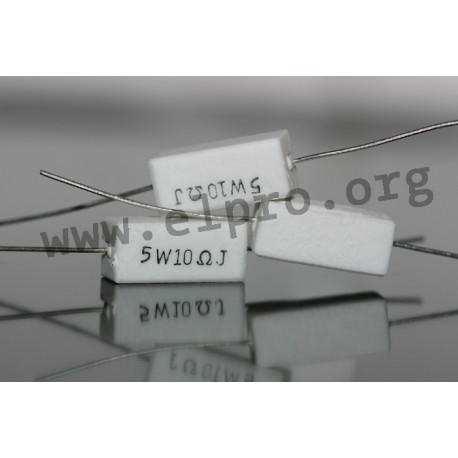

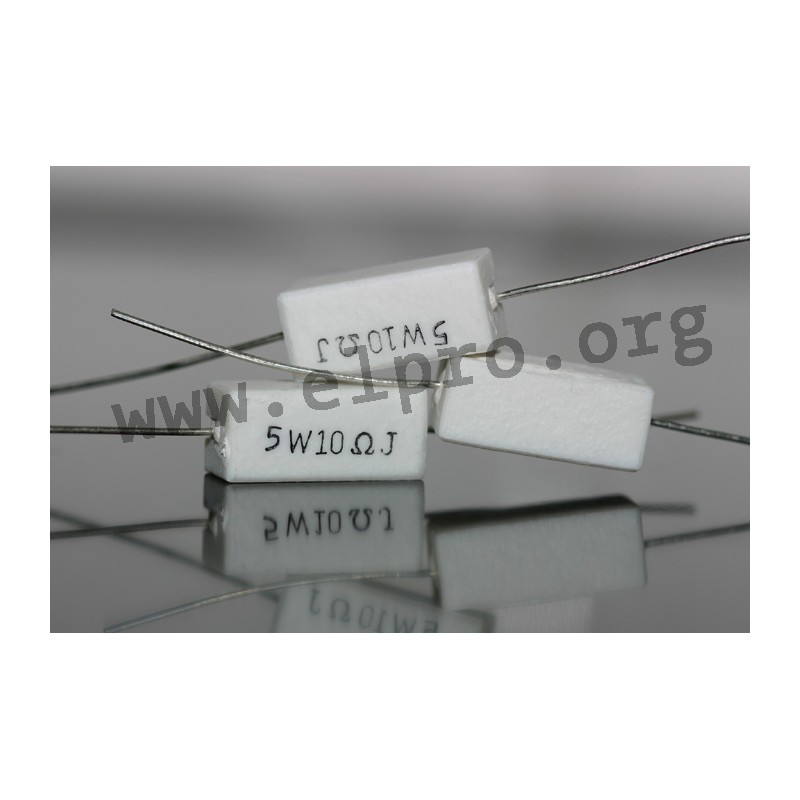

wirewound power resistors SQP5

* power: 5 W
* tolerance: 5%
* style: bulk
* low cost, small size, excellent stability in high temperature
* low noise level, super heat dissipation
* resistor elements manufactured utilising wirewound elements embedded in a ceramic housing to offer high insulation
* values up to 100Ohm are wirewounds, values greater than 100Ohm are SQP+MOF
* leads made from tin-coated copper wire
* dielectric withstanding voltage: 1000V
* temperature coefficient: ±300ppm/°C
* insulation resistance, min.: 100MΩ
SQP-5

SQP-5 12 R

44448 SQP-5 12 R KWH570JC-AX-12RAA KWH570JC-AX-12RAA wirewound power resistors SQP5. * power: 5 W* tolerance: 5%* style: bulk* low cost, small size, excellent stability in high temperature* low noise level, super heat dissipation* resistor elements manufactured utilising wirewound elements embedded in a ceramic housing to offer high insulation* values up to 100Ohm are wirewounds, values greater than 100Ohm are SQP+MOF* leads made from tin-coated copper wire* dielectric withstanding voltage: 1000V* temperature coefficient: ±300ppm/°C* insulation resistance, min.: 100MΩ

Specifications

manufacturer
Manufacturer's name KWH570JC-AX-12RAA
Resistance [Ω] 12
Power [W] 5
Tolerance [%] 5
Data Sheet

Unit price

0,215 €

Stock: 1321
Further delivery:
CW 21/2025

Minimum order quantity 1 to 21 units or multiples of 25 plus 0 to 21 .
