SQP-5 6,8 R

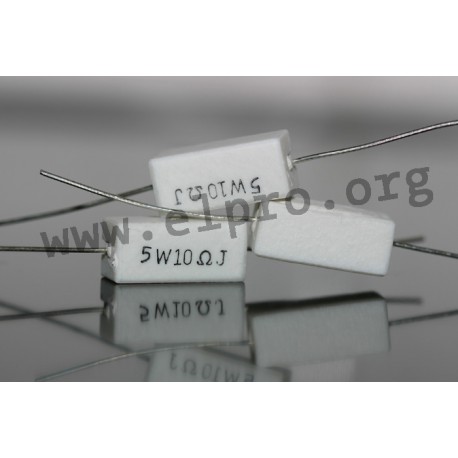

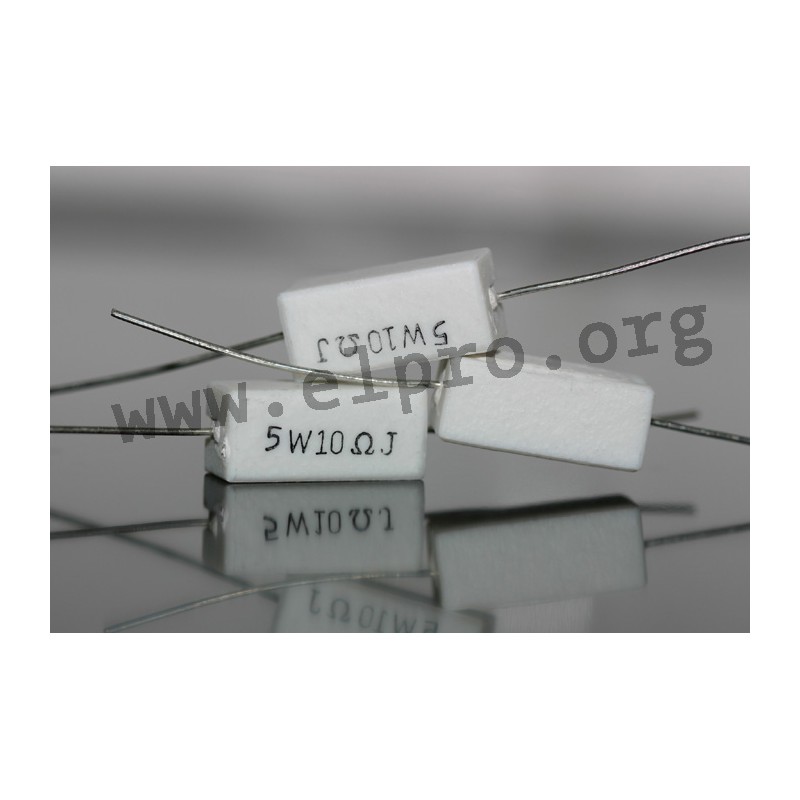

wirewound power resistors SQP5

• power: 5 W
• tolerance: 5%
• style: bulk
• low cost, small size, excellent stability in high temperature
• low noise level, super heat dissipation
• resistor elements manufactured utilising wirewound elements embedded in a ceramic housing to offer high insulation
• values up to 100Ohm are wirewounds, values greater than 100Ohm are SQP+MOF
• leads made from tin-coated copper wire
• dielectric withstanding voltage: 1000V
• temperature coefficient: ±300ppm/°C
• insulation resistance, min.: 100MΩ

SQP-5 6,8 R

44433 SQP-5 6,8 R KWH570JC-AX-6R8AA KWH570JC-AX-6R8AA wirewound power resistors SQP5. * power: 5 W* tolerance: 5%* style: bulk* low cost, small size, excellent stability in high temperature* low noise level, super heat dissipation* resistor elements manufactured utilising wirewound elements embedded in a ceramic housing to offer high insulation* values up to 100Ohm are wirewounds, values greater than 100Ohm are SQP+MOF* leads made from tin-coated copper wire* dielectric withstanding voltage: 1000V* temperature coefficient: ±300ppm/°C* insulation resistance, min.: 100MΩ

Specifications

manufacturer
Manufacturer's name KWH570JC-AX-6R8AA
Resistance [Ω] 6,8
Power [W] 5
Tolerance [%] 5
Data Sheet

Unit price

0,215 €

Stock: 895
Further delivery:
CW 28/2025

Minimum order quantity 1 to 20 units or multiples of 25 plus 0 to 20 .
