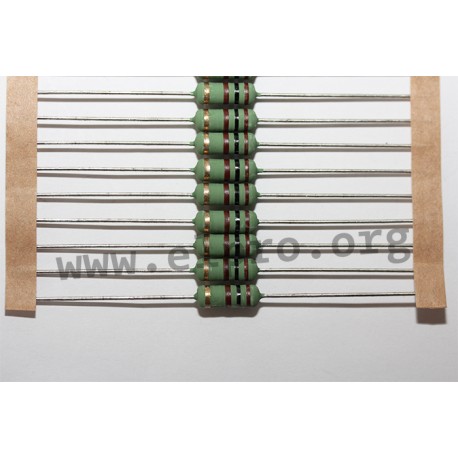

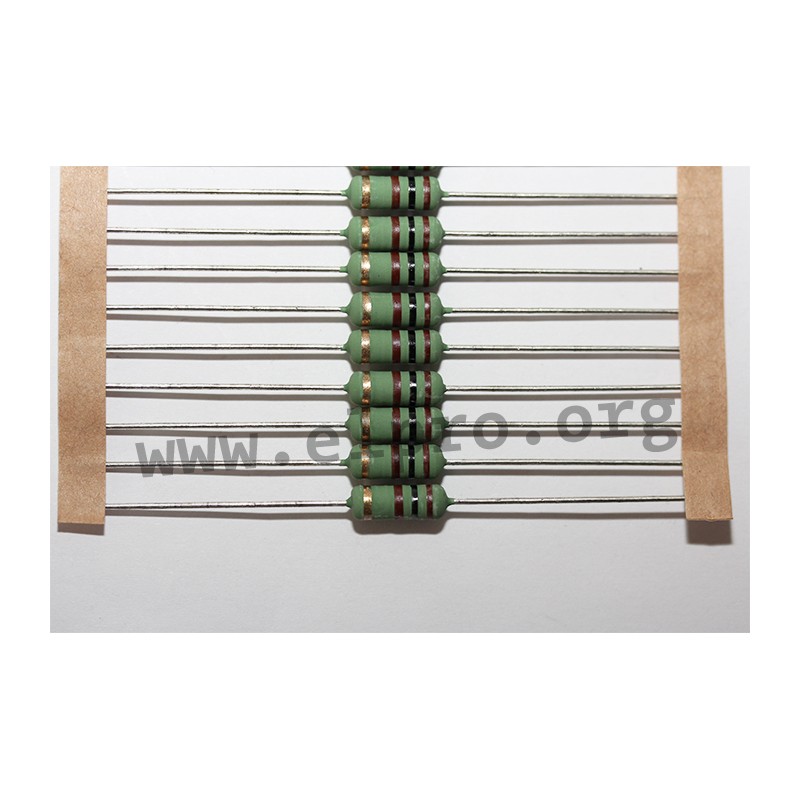

0411 5% 4,7 R

wirewound resistors

• housing: 0411
• taped
• wound on a ceramic core
• resistance wire securely crimped to the terminals
• small size
• electrical and mechanical stability and high reliability
• resistance tolerance: ±5%
• power rating (TU = 40°C): 1W
• temperature coefficient: ±100ppm/°C
• insulation resistance: >100MΩ

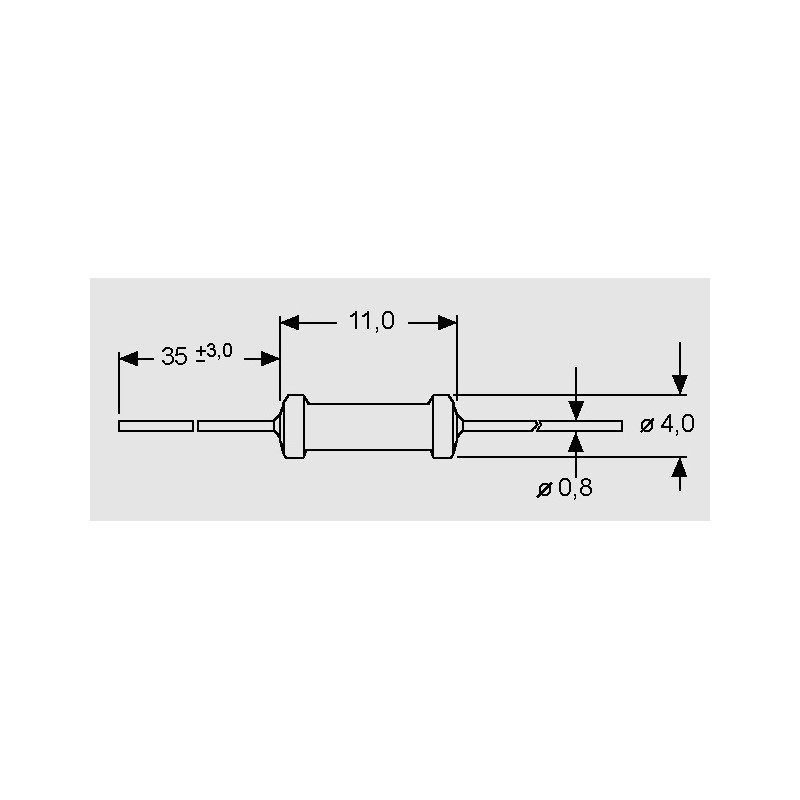

dimensions

0411 5% 4,7 R

42320 0411 5% 4,7 R KNP100JT-73-4R7 KNP100JT-73-4R7 wirewound resistors. * housing: 0411* taped* wound on a ceramic core* resistance wire securely crimped to the terminals* small size* electrical and mechanical stability and high reliability* resistance tolerance: ±5%* power rating (TU = 40°C): 1W* temperature coefficient: ±100ppm/°C* insulation resistance: >100MΩ

Specifications

manufacturer
Manufacturer's name KNP100JT-73-4R7
Design 0411
Resistance [Ω] 4,7
Power [W] 1
Tolerance [%] 5

Unit price

0,108 €

Stock: 12.000
Further delivery:
CW 33/2025

Minimum order quantity 100 units or
multiples of 100.
