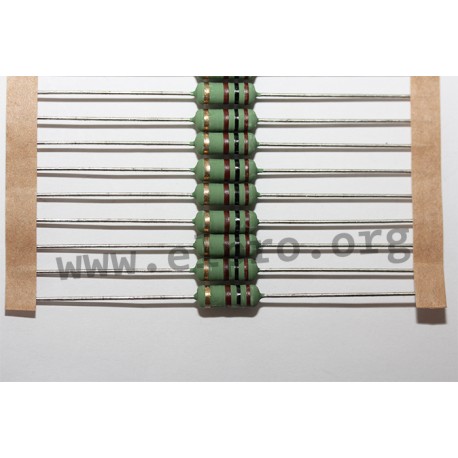

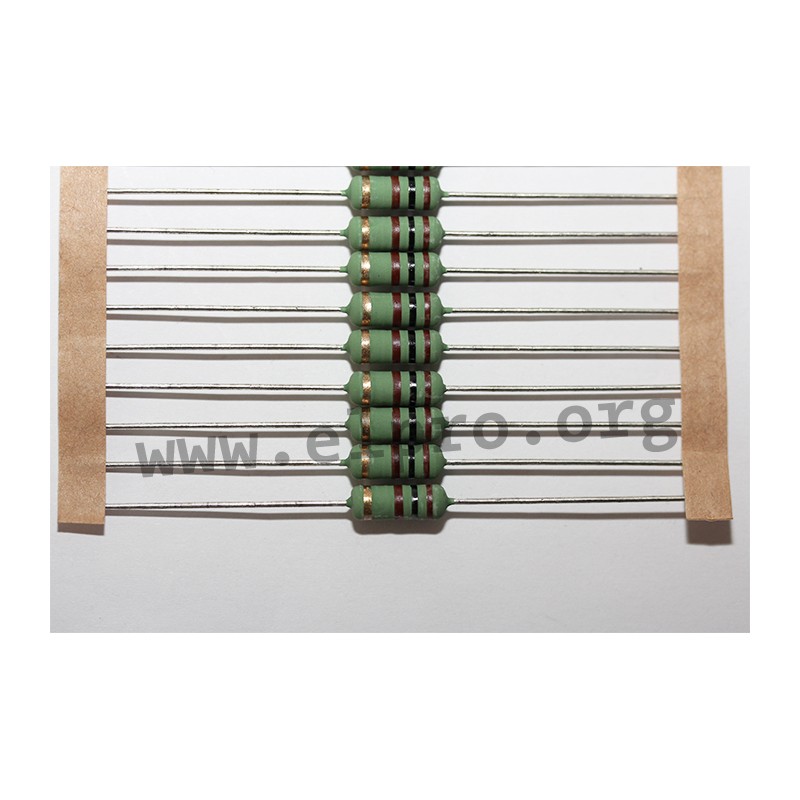

0411 5% 3,9 R

wirewound resistors

* housing: 0411
* taped
* wound on a ceramic core
* resistance wire securely crimped to the terminals
* small size
* electrical and mechanical stability and high reliability
* resistance tolerance: ±5%
* power rating (TU = 40°C): 1W
* temperature coefficient: ±100ppm/°C
* insulation resistance: >100MΩ

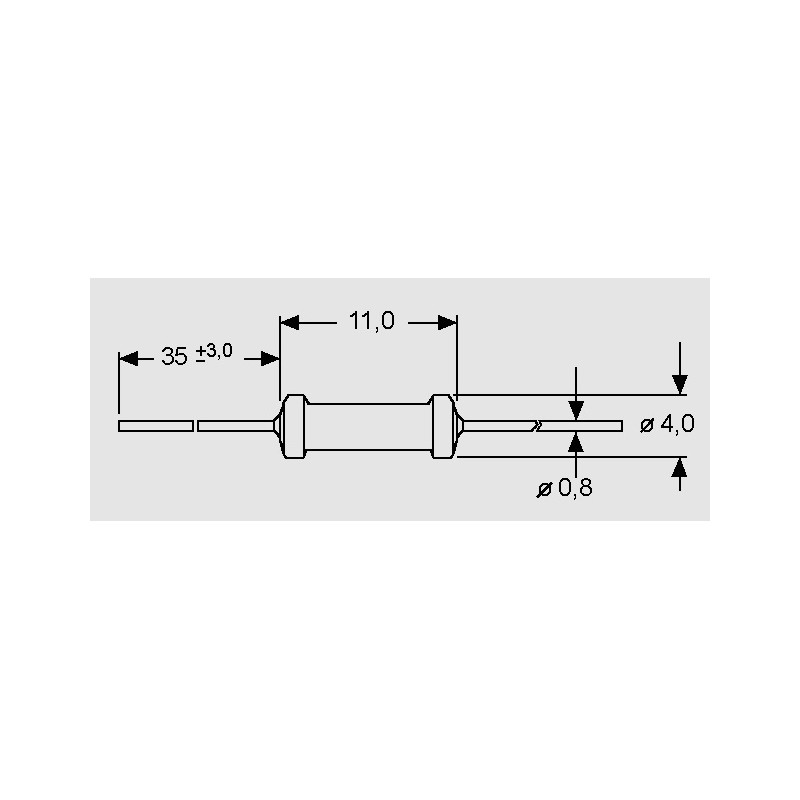

dimensions

0411 5% 3,9 R

42319 0411 5% 3,9 R KNP100JT-73-3R9 KNP100JT-73-3R9 wirewound resistors. * housing: 0411* taped* wound on a ceramic core* resistance wire securely crimped to the terminals* small size* electrical and mechanical stability and high reliability* resistance tolerance: ±5%* power rating (TU = 40°C): 1W* temperature coefficient: ±100ppm/°C* insulation resistance: >100MΩ

Specifications

manufacturer
Manufacturer's name KNP100JT-73-3R9
Design 0411
Resistance [Ω] 3,9
Power [W] 1
Tolerance [%] 5

Unit price

0,108 €

Stock: 200
Next incoming goods:
CW 09/2025
5000 units

Further delivery:
CW 20/2025

Minimum order quantity 100 units or
multiples of 100.
