2787-2147

Wago DIN rail power supply series Pro2

DIN rail switching power supplies in an enclosed housing (IP20) with a parallel function, TopBoost, PowerBoost, a configurable overload behaviour and cooling by free air convection. These no-load and short circuit proof devices have an optional IO-Link connection, a pluggable connection technology, a communication interface for configuration and monitoring, an adjustable digital signal input and output as well as an output voltage of 24V. They are suitable for DIN rail mounting (TS-35) and comply with UL/EN 61010-1, UL/EN 61010-2-201 as well as EN 61204-3. We offer the switching power supplies 2787-2144, 2787-2146, 2787-2147 and 2787-2448 of this Wago series as well as the communication module 2789-9080.

  • 1-phase
  • output: 120 to 960W
  • input voltage 2787-2144/2146/2147: 90 to 264V AC (47 to 63Hz), 130 to 373V DC
  • input voltage 2787-2448: 180 to 264V AC (47 to 63Hz), 255 to 373V DC
  • input voltage 2789-9080: 18 to 30V DC
  • overvoltage category: III
  • ripple and noise: ≤70mVp-p
  • operating temperature: -20 to +70°C

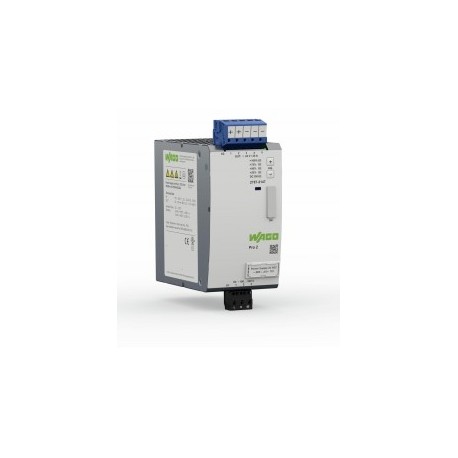

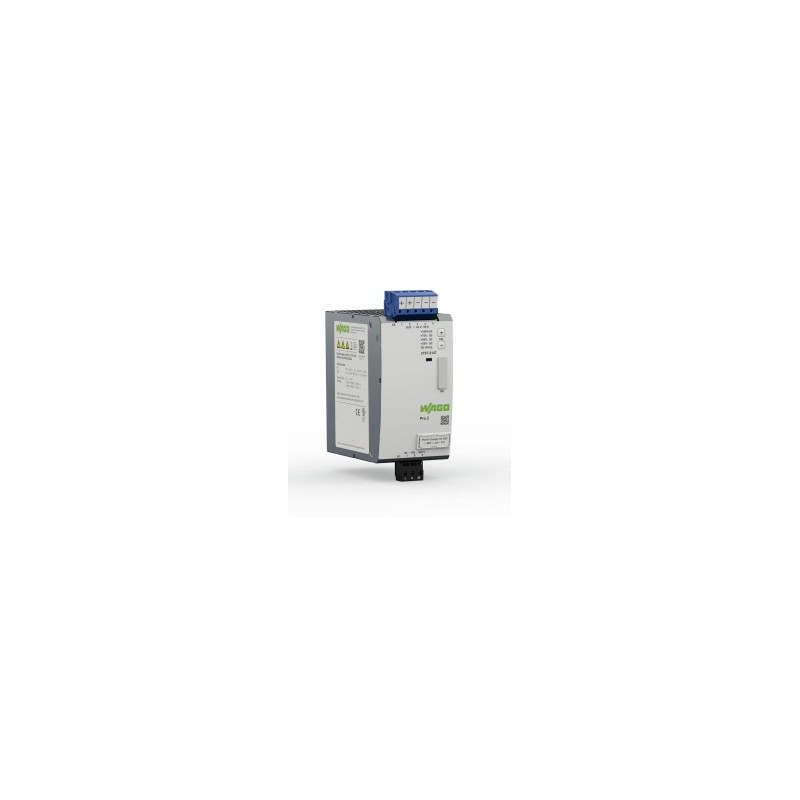

2787-2147, Wago DIN rail switching power supplies, 120 to 960W, IO link interface, parallel function, Pro2 series

2787-2147

234001 2787-2147 2787-2147 Wago DIN rail power supply series Pro2. DIN rail switching power supplies in an enclosed housing (IP20) with a parallel function, TopBoost, PowerBoost, a configurable overload behaviour and cooling by free air convection. These no-load and short circuit proof devices have an optional IO-Link connection, a pluggable connection technology, a communication interface for configuration and monitoring, an adjustable digital signal input and output as well as an output voltage of 24V. They are suitable for DIN rail mounting (TS-35) and comply with UL/EN 61010-1, UL/EN 61010-2-201 as well as EN 61204-3. We offer the switching power supplies 2787-2144, 2787-2146, 2787-2147 and 2787-2448 of this Wago series as well as the communication module 2789-9080. 1-phase output: 120 to 960W input voltage 2787-2144/2146/2147: 90 to 264V AC (47 to 63Hz), 130 to 373V DC input voltage 2787-2448: 180 to 264V AC (47 to 63Hz), 255 to 373V DC input voltage 2789-9080: 18 to 30V DC overvoltage category: III ripple and noise: ≤70mVp-p operating temperature: -20 to +70°C

Specifications

manufacturer
Manufacturer's name 2787-2147
Output voltage [V] 24
Efficiency [%] 95,4
Output current [A] 20
Output power [W] 480
Data Sheet

Unit price

475,39 €

Stock: 2
Further delivery:
CW 14/2025
