2091-1428

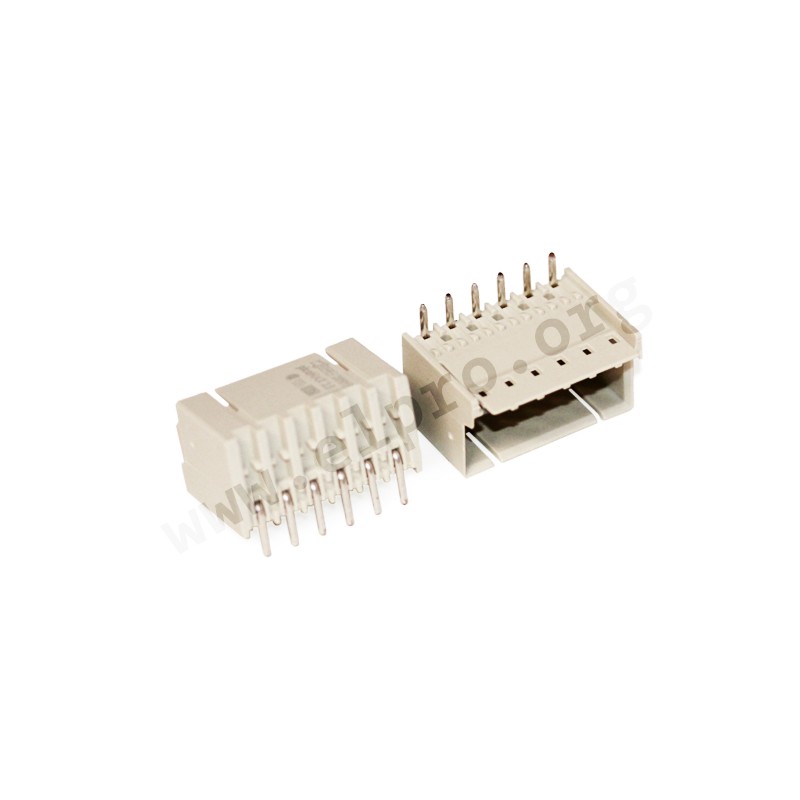

male header, angled, series 2091, picoMAX, by WAGO

• with angled solder pins
• assembly of female connectors without loss of poles, allowing different functions to be divided within one male header
• coding pins inserted into the header interface prevent mismating, allowing subsequent coding in panel feedthrough applications
• female connector is fully shrouded by the male header's housing, providing high vibration resistance
• pitch: 3,5 mm
• rated voltage (EN 60664-1): 160 Volt
• insulating material: PPA-GF
• temperature range: -60 to +105°C
• flammability class: UL94V-0
• colour: light grey

• suitable female conductors

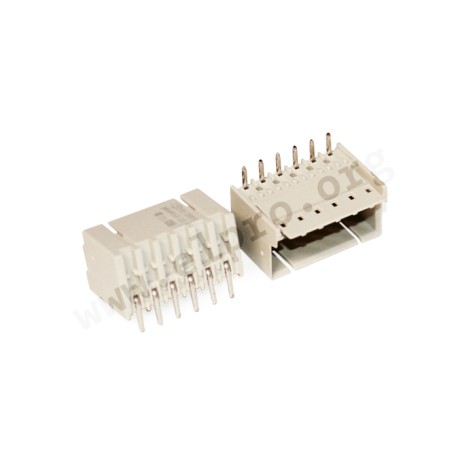

2091-1428, Wago male headers, angled, pitch 3,5mm, 10A, picoMAX series

2091-1428

106800 2091-1428 2091-1428 male header, angled, series 2091, picoMAX, by WAGO. • with angled solder pins• assembly of female connectors without loss of poles, allowing different functions to be divided within one male header• coding pins inserted into the header interface prevent mismating, allowing subsequent coding in panel feedthrough applications• female connector is fully shrouded by the male header's housing, providing high vibration resistance• pitch: 3,5 mm• rated voltage (EN 60664-1): 160 Volt• insulating material: PPA-GF• temperature range: -60 to +105°C• flammability class: UL94V-0• colour: light grey • suitable female conductors

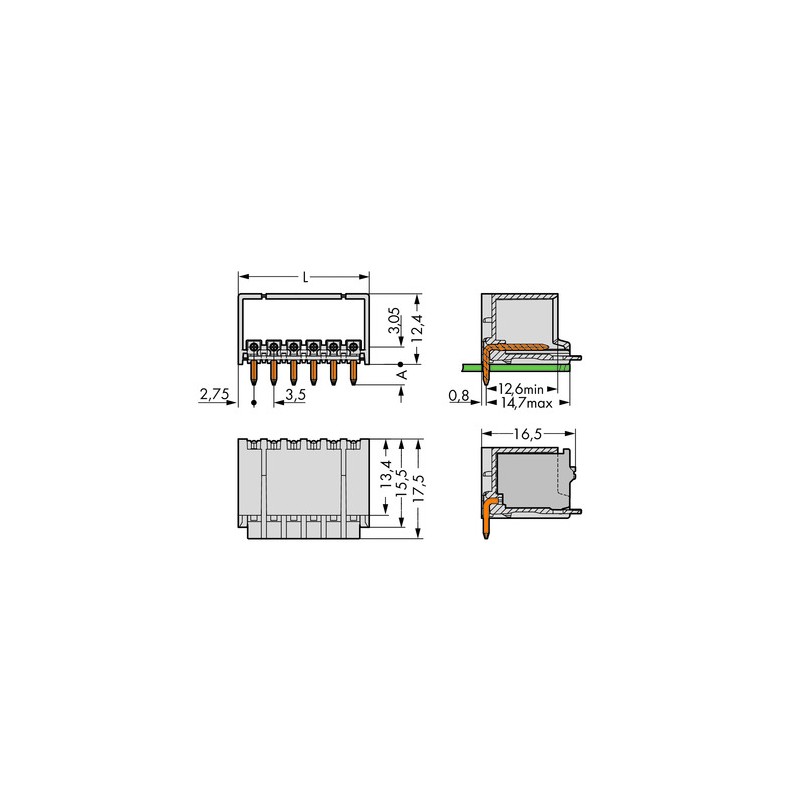

Specifications

manufacturer
Manufacturer's name 2091-1428
Design 90°angled
Number of poles 8
Pitch [mm] 3,5
L [mm] 30
Data Sheet

Unit price

1,36 €

Stock: 165
Further delivery:
CW 05/2025

Minimum order quantity 5 units or
multiples of 5.
