2091-1408

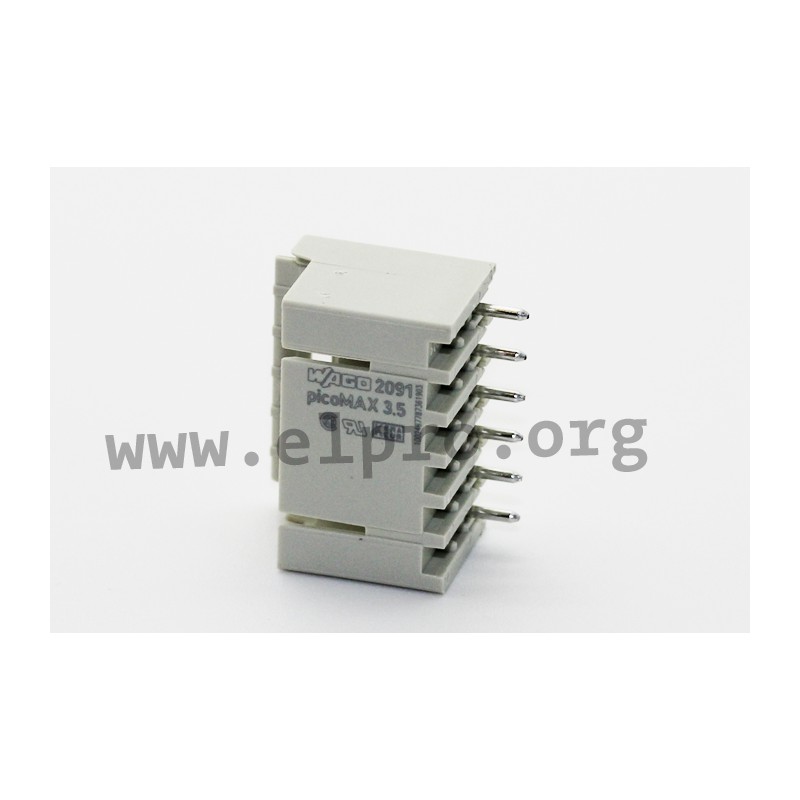

male header, straight, series 2091, picoMAX, by WAGO

• with straight solder pins
• assembly of female connectors without loss of poles, allowing different functions to be divided within one male header
• coding pins inserted into the header interface prevent mismating, allowing subsequent coding in panel feedthrough applications
• female connector is fully shrouded by the male header's housing, providing high vibration resistance
• pitch: 3,5 mm
• rated voltage (EN 60664-1): 160 Volt
• insulating material: PPA-GF
• temperature range: -60 to +105°C
• flammability class: UL94V-0
• colour: light grey

• suitable female conductors

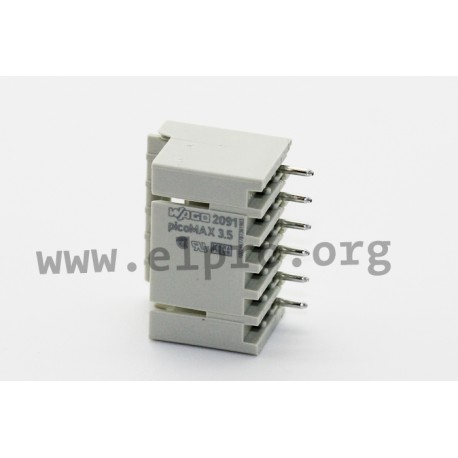

2091-1408, male headers, straight, pitch 3.5, 10A, series picoMAX by Wago

2091-1408

106793 2091-1408 2091-1408 male header, straight, series 2091, picoMAX, by WAGO. • with straight solder pins• assembly of female connectors without loss of poles, allowing different functions to be divided within one male header• coding pins inserted into the header interface prevent mismating, allowing subsequent coding in panel feedthrough applications• female connector is fully shrouded by the male header's housing, providing high vibration resistance• pitch: 3,5 mm• rated voltage (EN 60664-1): 160 Volt• insulating material: PPA-GF• temperature range: -60 to +105°C• flammability class: UL94V-0• colour: light grey • suitable female conductors

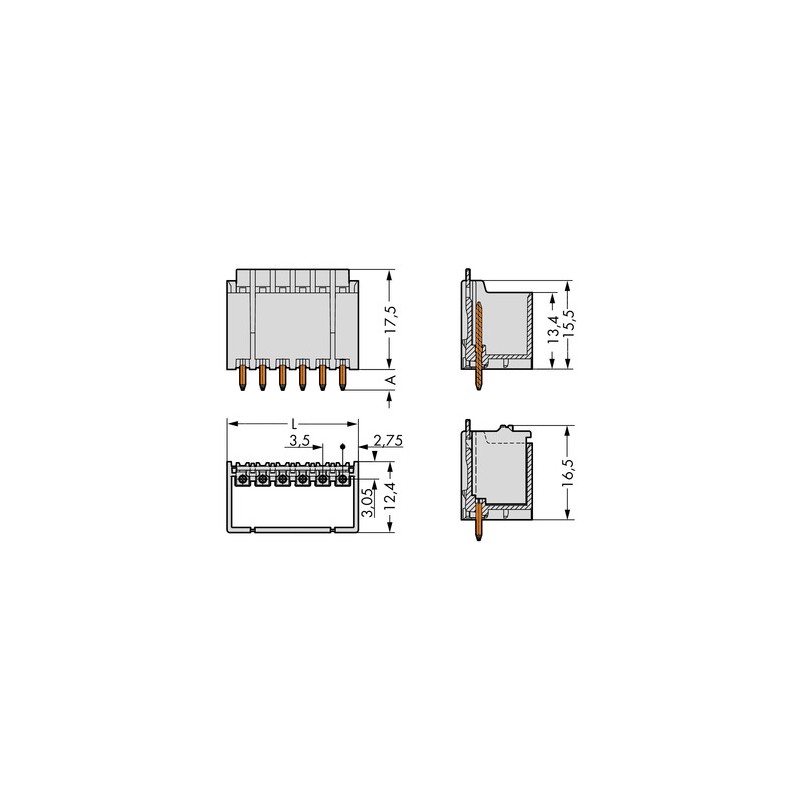

Specifications

manufacturer
Manufacturer's name 2091-1408
Design straight
Number of poles 8
Pitch [mm] 3,5
L [mm] 30
Data Sheet

Unit price

1,36 €

Stock: 0
Next incoming goods:
CW 49/2024
100 units

Further delivery:
CW 01/2025

Minimum order quantity 5 units or
multiples of 5.
