2091-1110/002-000

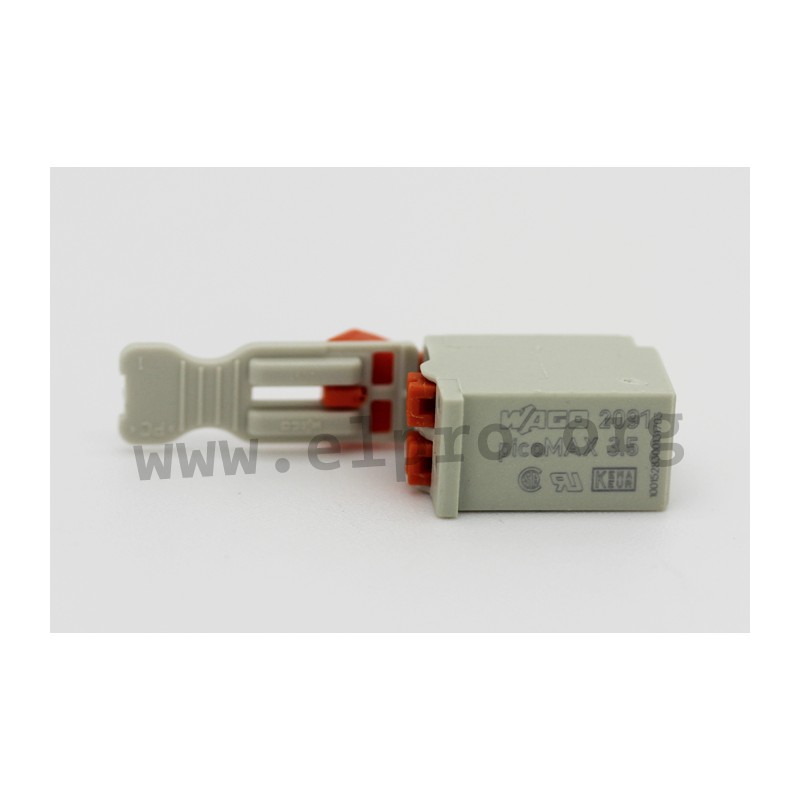

female terminal block with conductor terminal series 2091, picoMAX, by WAGO

• universal connection for all types of conductors
• simple, push-in termination of solid and ferruled conductors
• easy-to-use design does not require special tools
• ability to wire while mated or unmated
• testing parallel to conductor entry – tip contact
• with gripping plate and unlocking tool
• integrated locking latches prevent accidental disconnection
• pitch: 3.5 mm
• rated voltage (EN 60664-1): 160 Volt
• rated cross section single/fine stranded wire: 0.2 to 1.5 mm²
• fine strandet wire, end sleeves, insulated ferrules: 0.25 to 0.75mm²
• fine strandet wire, end sleeves, uninsulated ferrules: 0.25 to 1.5mm²
• stripped length: 8 to 9 mm
• insulating material: PPA-GF
• temperature range: -60 to +105°C
• flammability class: UL94V-0
• colour: light grey

• suitable male headers, straight

• suitable male headers, 90° angled

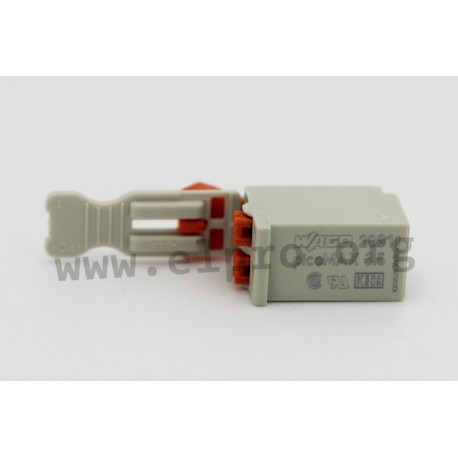

series 2091-11_, picoMAX, by WAGO

2091-1110/002-000

106787 2091-1110/002-000 2091-1110/002-000 female terminal block with conductor terminal series 2091, picoMAX, by WAGO. • universal connection for all types of conductors• simple, push-in termination of solid and ferruled conductors• easy-to-use design does not require special tools• ability to wire while mated or unmated• testing parallel to conductor entry – tip contact• with gripping plate and unlocking tool• integrated locking latches prevent accidental disconnection• pitch: 3.5 mm• rated voltage (EN 60664-1): 160 Volt• rated cross section single/fine stranded wire: 0.2 to 1.5 mm²• fine strandet wire, end sleeves, insulated ferrules: 0.25 to 0.75mm²• fine strandet wire, end sleeves, uninsulated ferrules: 0.25 to 1.5mm²• stripped length: 8 to 9 mm• insulating material: PPA-GF• temperature range: -60 to +105°C• flammability class: UL94V-0• colour: light grey • suitable male headers, straight • suitable male headers, 90° angled

Specifications

manufacturer
Manufacturer's name 2091-1110/002-000
Number of poles 10
Pitch [mm] 3,5
Length [mm] 35
Data Sheet

Unit price

4,99 €

Stock: 65
Further delivery:
CW 01/2025

Minimum order quantity 5 units or
multiples of 5.
