734-162

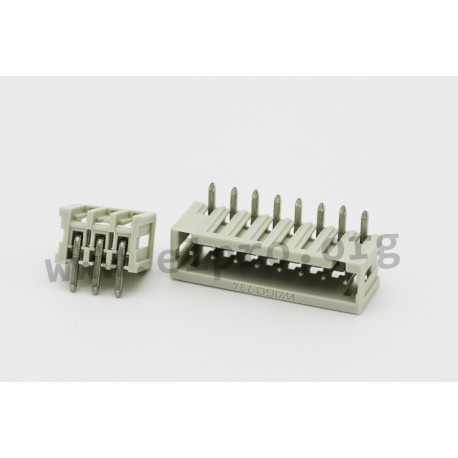

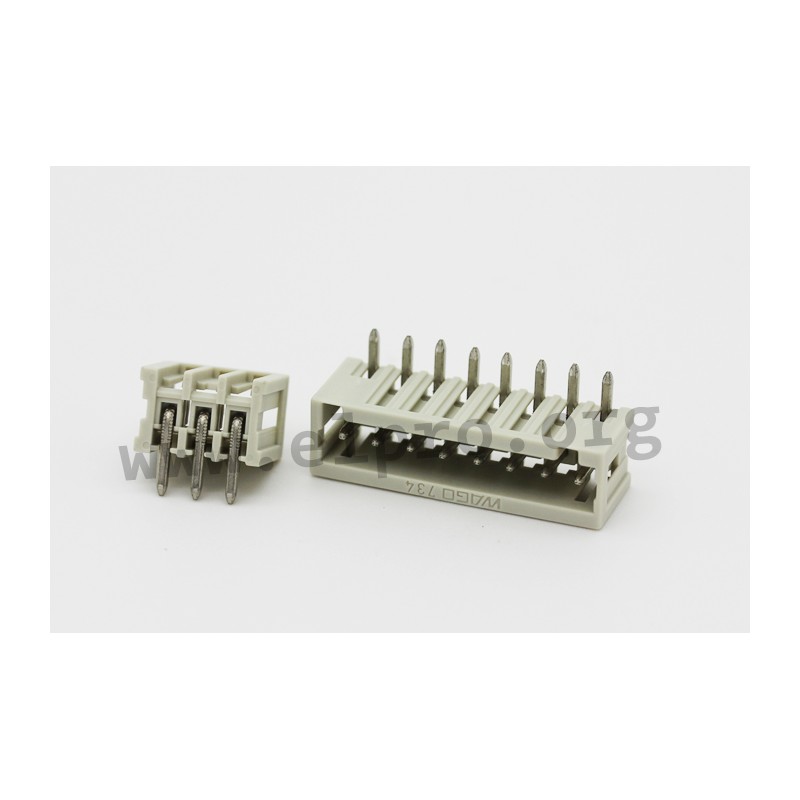

Male connectors, MCS-Mini by Wago

Angled soldering pins for parallel connections to the PCB. The pin cross section of the MCS-Mini series is 1x1mm - therefore a rated current of 10A is possible. The double deck headers have a small footprint on the PCB and allow a high number of "wire-to-board" connections. They are codable and 100% mismating-protected.

• pitch: 3.5mm
• rated voltage: 160V
• rated impulse withstand voltage: 2,5kV
• rated current: 10A
• solderin pin (LxB): 4.5mm /1x1mm
• solderin pin, drill hole Ø: 1.4mm+0,1
• insulating group: I
• material: Polyamid 6.6
• contacts: Electrolytic Copper(ECu), tin-plated
• flammability (nach UL 94): V-0
• temperature range: -60 to +100°C

Suitable female connectors
We also offer a straight version

734-16_

734-162

106712 734-162 734-162 Male connectors, MCS-Mini by Wago. Angled soldering pins for parallel connections to the PCB. The pin cross section of the MCS-Mini series is 1x1mm - therefore a rated current of 10A is possible. The double deck headers have a small footprint on the PCB and allow a high number of "wire-to-board" connections. They are codable and 100% mismating-protected. • pitch: 3.5mm• rated voltage: 160V• rated impulse withstand voltage: 2,5kV• rated current: 10A• solderin pin (LxB): 4.5mm /1x1mm• solderin pin, drill hole Ø: 1.4mm+0,1• insulating group: I• material: Polyamid 6.6• contacts: Electrolytic Copper(ECu), tin-plated• flammability (nach UL 94): V-0• temperature range: -60 to +100°C Suitable female connectorsWe also offer a straight version

Specifications

manufacturer
Manufacturer's name 734-162
Data Sheet

Unit price

0,42 €

Stock: 765
Further delivery:
CW 51/2024

Minimum order quantity 5 units or
multiples of 5.
