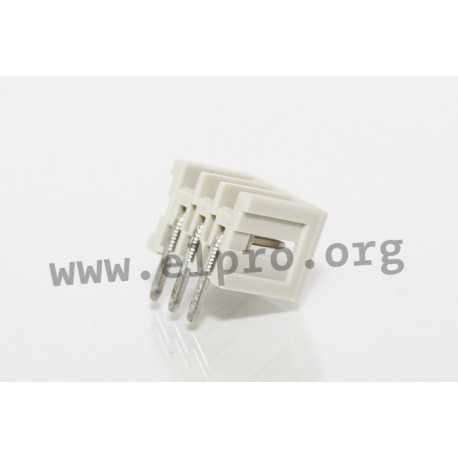

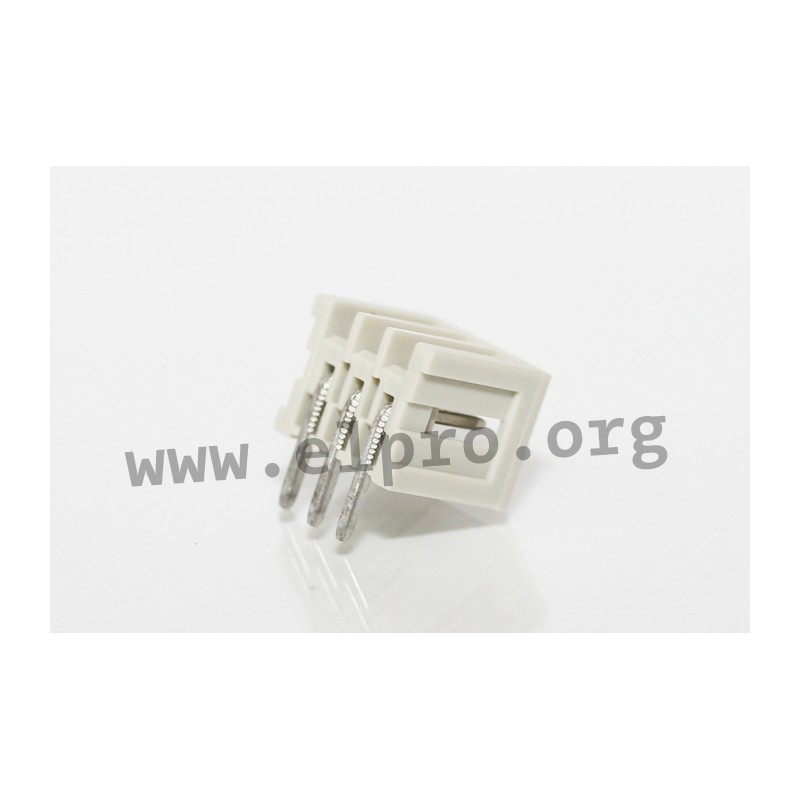

733-370

male headers series 733 by Wago

• MCS-MICRO
• pitch: 2.5mm
• 10-pole
• 90° angled solderpins
• for vertical and horizontal PCB mounting
• codable
• by Wago
• rated voltage: 160V
• rated current: 6A
• insulating material: PA 6.6
• temperature range: -60 to +100°C
• flammability class: UL94V-0
• colour: grey

attachment:
• 733-130: actuator for female connectors and male headers, colour nature
• 733-191: actuator for female connectors and male headers, colour yellow
• 733-330: coding key, snap-on type, colour white



733-370

41910 733-370 733-370 male headers series 733 by Wago. • MCS-MICRO• pitch: 2.5mm• 10-pole• 90° angled solderpins• for vertical and horizontal PCB mounting• codable• by Wago• rated voltage: 160V• rated current: 6A• insulating material: PA 6.6• temperature range: -60 to +100°C• flammability class: UL94V-0• colour: grey attachment:• 733-130: actuator for female connectors and male headers, colour nature• 733-191: actuator for female connectors and male headers, colour yellow• 733-330: coding key, snap-on type, colour white

Specifications

manufacturer
Manufacturer's name 733-370
Connection 90° angled
Number of poles 10
Length [mm] 27,5
Data Sheet

Unit price

2,09 €

Stock: 260
Further delivery:
CW 01/2025

Minimum order quantity 5 units or
multiples of 5.
