Manufacturers

733-105

female connectors series 733 by Wago

• MCS-MICRO
• pitch: 2.5mm
• 5-pole
• universal connection for all conductor types, spring force terminals
• conductor: horizontal
• easy cable pre-assembly and on-unit wiring via vertical and horizontal actuation
• codable
• by Wago
• rated cross section single and fine stranded wire: 0.08 to 0.5mm2
• stripped length: 5 to 6mm
• rated voltage: 160V
• rated current: 6A
• insulating material: PA 6.6
• temperature range: -60 to +100°C
• flammability class: UL94V-0
• colour: grey
• by Wago

attachment
• 733-130: actuator for female connectors and male headers, colour nature
• 733-191: actuator for female connectors and male headers, colour yellow

series 733-1_ by Wago

733-105

41891 733-105 733-105 female connectors series 733 by Wago. • MCS-MICRO• pitch: 2.5mm• 5-pole• universal connection for all conductor types, spring force terminals• conductor: horizontal• easy cable pre-assembly and on-unit wiring via vertical and horizontal actuation• codable• by Wago• rated cross section single and fine stranded wire: 0.08 to 0.5mm2• stripped length: 5 to 6mm• rated voltage: 160V• rated current: 6A• insulating material: PA 6.6• temperature range: -60 to +100°C• flammability class: UL94V-0• colour: grey• by Wagoattachment• 733-130: actuator for female connectors and male headers, colour nature• 733-191: actuator for female connectors and male headers, colour yellow

Specifications

manufacturer
Manufacturer's name 733-105
Number of poles 5

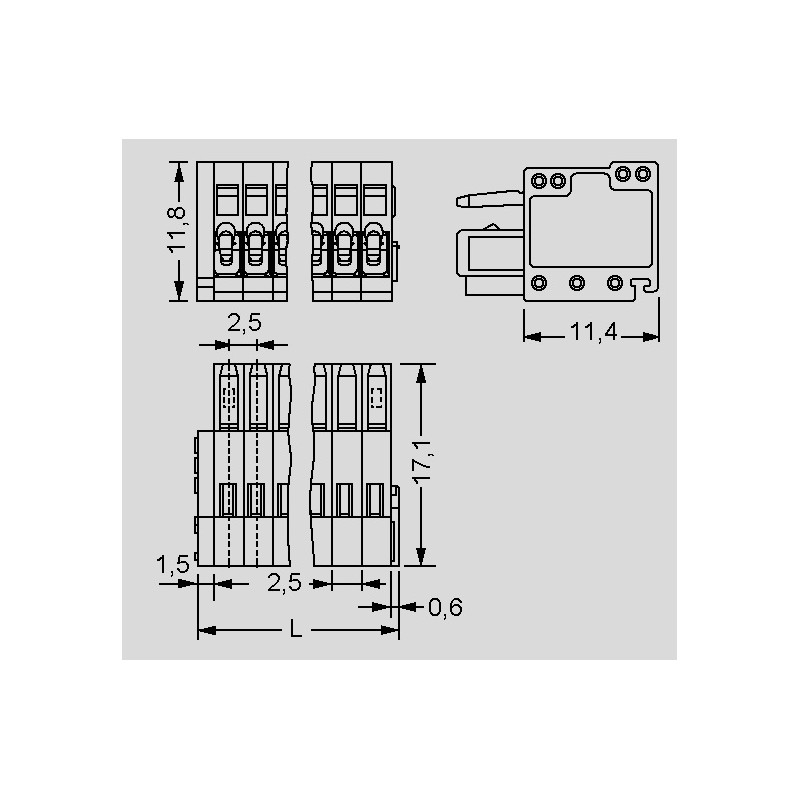

Length [mm] 14,6
Data Sheet

Unit price

2,89 €

Stock: 60
Next incoming goods:
CW 49/2024
100 units

Further delivery:
CW 03/2025

Minimum order quantity 5 units or
multiples of 5.
