> Passive elements>Terminals>Terminal multiconnectors>Wago female connectors and male headers, pitch 2,5mm, 6A, MCS-MICRO series>733-103

Manufacturers

733-103

female connectors series 733 by Wago

• MCS-MICRO
• pitch: 2.5mm
• 3-pole
• universal connection for all conductor types, spring force terminals
• conductor: horizontal
• easy cable pre-assembly and on-unit wiring via vertical and horizontal actuation
• codable
• by Wago
• rated cross section single and fine stranded wire: 0.08 to 0.5mm2
• stripped length: 5 to 6mm
• rated voltage: 160V
• rated current: 6A
• insulating material: PA 6.6
• temperature range: -60 to +100°C
• flammability class: UL94V-0
• colour: grey
• by Wago

attachment
• 733-130: actuator for female connectors and male headers, colour nature
• 733-191: actuator for female connectors and male headers, colour yellow

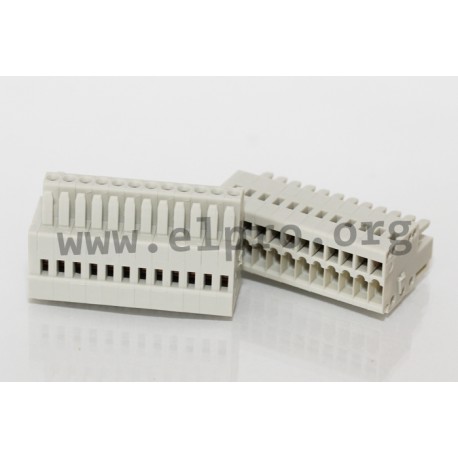

series 733-1_ by Wago

733-103

41889 733-103 733-103 female connectors series 733 by Wago. • MCS-MICRO• pitch: 2.5mm• 3-pole• universal connection for all conductor types, spring force terminals• conductor: horizontal• easy cable pre-assembly and on-unit wiring via vertical and horizontal actuation• codable• by Wago• rated cross section single and fine stranded wire: 0.08 to 0.5mm2• stripped length: 5 to 6mm• rated voltage: 160V• rated current: 6A• insulating material: PA 6.6• temperature range: -60 to +100°C• flammability class: UL94V-0• colour: grey• by Wagoattachment• 733-130: actuator for female connectors and male headers, colour nature• 733-191: actuator for female connectors and male headers, colour yellow

Specifications

manufacturer
Manufacturer's name 733-103
Number of poles 3
Length [mm] 9,6
Data Sheet

Unit price

1,88 €

Stock: 830
Further delivery:
CW 01/2025

Minimum order quantity 5 units or
multiples of 5.
