890-1615

connector system WINSTA, series 890 by WAGO

• mini T-distribution connector, 2-pole
• 1xplug, 2xsockets
• for 'flying leads'
• with 3. locking lever
• 100 % protected against mismating
• pluggable
• marking: L N

• rated voltage: 250 V
​• rated surge voltage: 4 kV
• nominal current: 16 A
• processing temperature: -5 to +40 °C

All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for 'flying leads' (plug/socket).

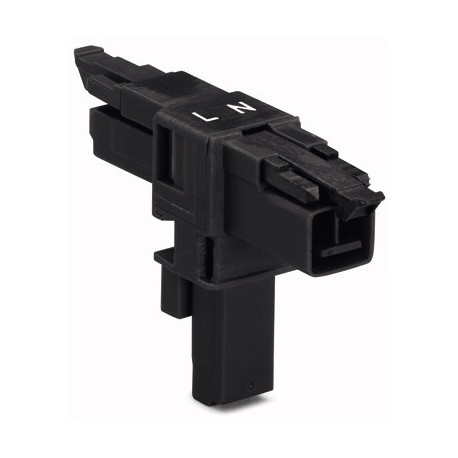

890-1615 by WAGO

890-1615

106866 890-1615 890-1615 connector system WINSTA, series 890 by WAGO. • mini T-distribution connector, 2-pole• 1xplug, 2xsockets• for 'flying leads'• with 3. locking lever• 100 % protected against mismating• pluggable• marking: L N • rated voltage: 250 V​• rated surge voltage: 4 kV• nominal current: 16 A• processing temperature: -5 to +40 °C All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for 'flying leads' (plug/socket).

Specifications

manufacturer
Manufacturer's name 890-1615
Colour black
Number of poles 2
Pitch [mm] 4,4
Connection points 2
Data Sheet

Unit price

4,29 €

Stock: 0
Further delivery:
CW 04/2025

Minimum order quantity 25 units or
multiples of 25.
