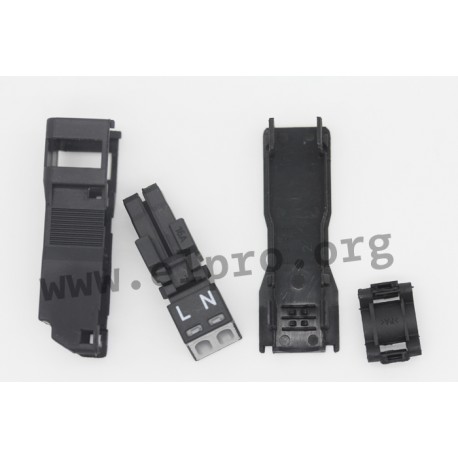

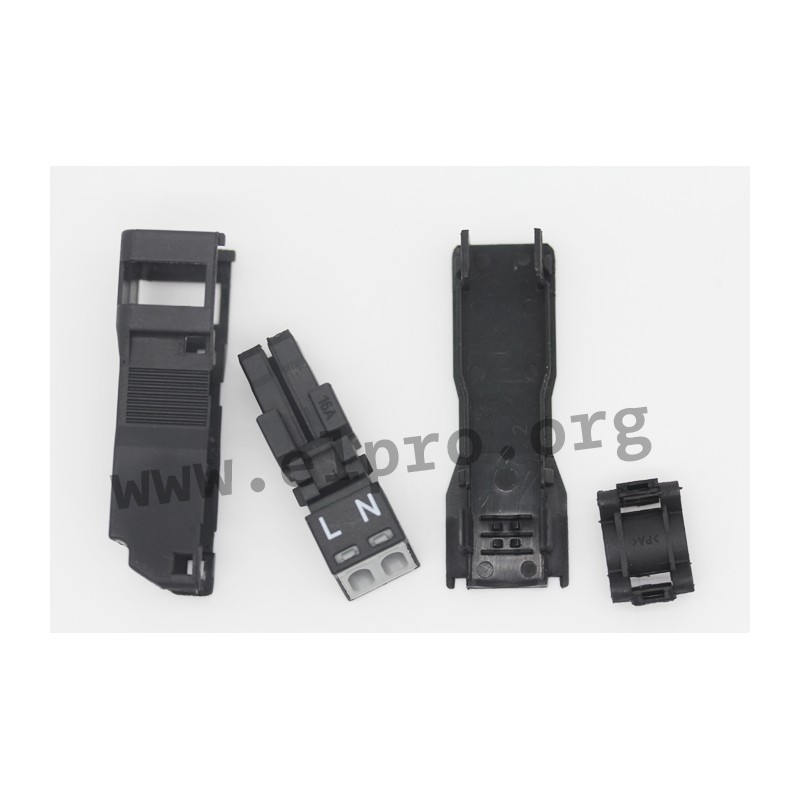

890-102

connector system WINSTA, series 890 by WAGO

• mini socket, 2-pole
• with strain relief housing
• for connection and disconnection while not unter load
• cable diamter: 3.8 to 8.2 mm
• 100% protected aigainst mismating
• marking: L N
• push-in CAGE CLAMP® connection technology
• rated voltage: 250 V
• rated surge voltage: 4 kV
• nominal current: 16 A
• single/fine stranded wire rated cross section: 0.25 to 1.5 mm²
• strip length: 9 mm
• processing temperature: -5 to +40 °C

All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for 'flying leads' (plug/socket).

890-102

890-102

106862 890-102 890-102 connector system WINSTA, series 890 by WAGO. • mini socket, 2-pole• with strain relief housing• for connection and disconnection while not unter load• cable diamter: 3.8 to 8.2 mm• 100% protected aigainst mismating• marking: L N• push-in CAGE CLAMP® connection technology• rated voltage: 250 V• rated surge voltage: 4 kV• nominal current: 16 A• single/fine stranded wire rated cross section: 0.25 to 1.5 mm²• strip length: 9 mm• processing temperature: -5 to +40 °C All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for 'flying leads' (plug/socket).

Specifications

manufacturer
Manufacturer's name 890-102
Colour black
Number of poles 2
Pitch [mm] 4,4
Connection points 2
Data Sheet

Unit price

3,59 €

Stock: 50
Further delivery:
CW 04/2025

Minimum order quantity 5 units or
multiples of 5.
