> Passive elements>Terminals>Installation terminals>Wago sockets with strain relief housing, WINSTA MIDI, 770 series>770-634

Manufacturers

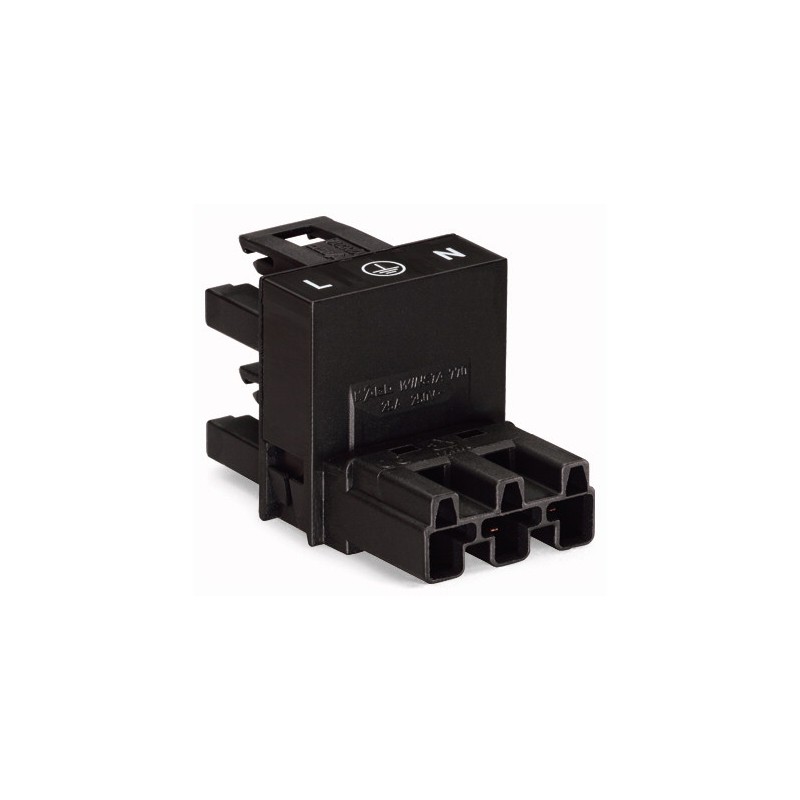

770-634

connector system WINSTA, series 770 by WAGO

• midi h-distribution connector, 3-pole
​• 1xplug, 2xsockets
• unidirectional
• 100 % protected against mismating
• pluggable, to socket at output side
• marking: L ⏚ N
​• rated voltage: 250 V
• rated surge voltage: 4 kV
• nominal current: 25 A
• processing temperature: -5 to +40 °C

All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for 'flying leads' (plug/socket).

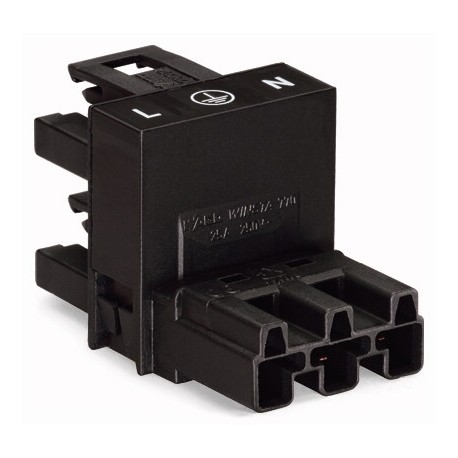

770-623 by WAGO

770-634

106861 770-634 770-634 connector system WINSTA, series 770 by WAGO. • midi h-distribution connector, 3-pole​• 1xplug, 2xsockets• unidirectional• 100 % protected against mismating• pluggable, to socket at output side• marking: L ⏚ N​• rated voltage: 250 V• rated surge voltage: 4 kV• nominal current: 25 A• processing temperature: -5 to +40 °C All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for 'flying leads' (plug/socket).

Specifications

manufacturer
Manufacturer's name 770-634
Colour black
Number of poles 3
Pitch [mm] 10
Data Sheet

Unit price

7,19 €

Stock: 0
Next incoming goods:
CW 02/2025
50 units

Further delivery:
CW 04/2025

Minimum order quantity 5 units or
multiples of 5.
