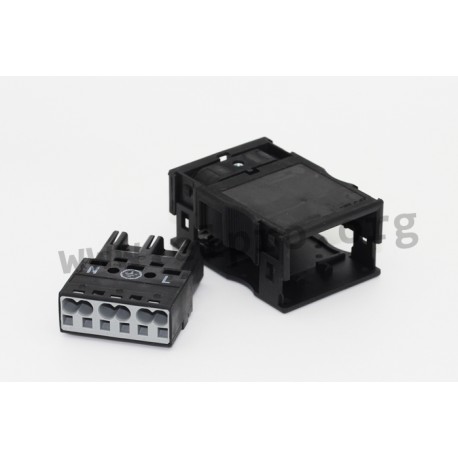

770-113

connector system WINSTA, series 770 by WAGO

• midi plug, 3-pole
• with strain relief housing
​* for connection and disconnection while not under load
• cable diamter: 8 to 11.5 mm
• 100% protected aigainst mismating
• marking: (L ⏚ N)
• push-in CAGE CLAMP® connection technology
• rated voltage: 250 V
• rated surge voltage: 4 kV
• nominal current: 25 A
• single/fine stranded wire rated cross section: 0.5 to 4 mm²
• strip length: 9 mm
• processing temperature: -5 to +40 °C

All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for 'flying leads' (plug/socket).

770-113

770-113

106858 770-113 770-113 connector system WINSTA, series 770 by WAGO. • midi plug, 3-pole• with strain relief housing​* for connection and disconnection while not under load• cable diamter: 8 to 11.5 mm• 100% protected aigainst mismating• marking: (L ⏚ N)• push-in CAGE CLAMP® connection technology• rated voltage: 250 V• rated surge voltage: 4 kV• nominal current: 25 A• single/fine stranded wire rated cross section: 0.5 to 4 mm²• strip length: 9 mm• processing temperature: -5 to +40 °C All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for 'flying leads' (plug/socket).

Specifications

manufacturer
Manufacturer's name 770-113
Colour black
Number of poles 3
Pitch [mm] 10
Connection points 6
Data Sheet

Unit price

4,59 €

Stock: 39
Further delivery:
CW 52/2024

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
