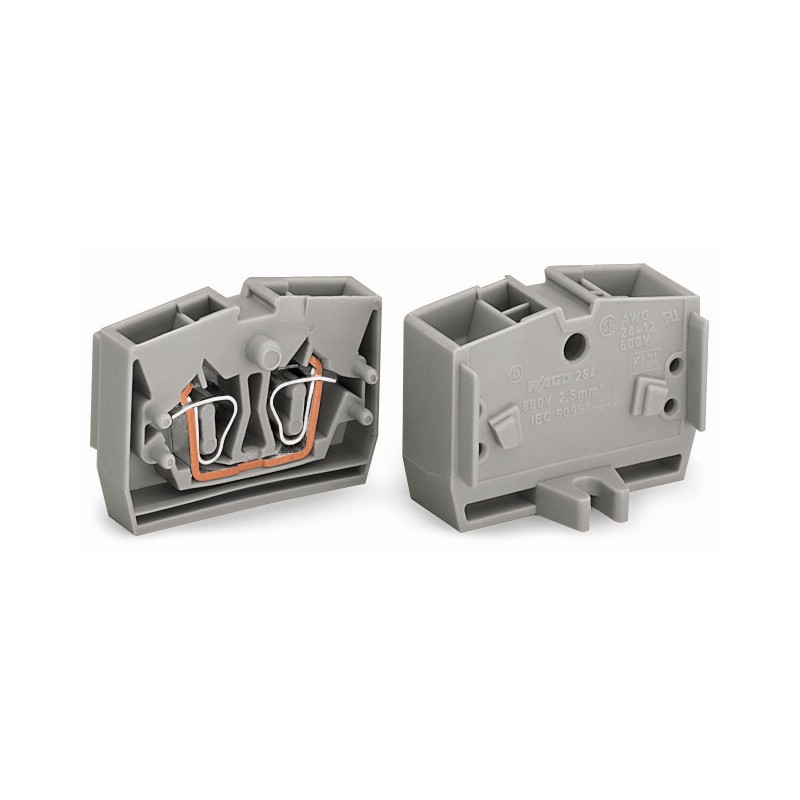

264-331

terminal blocks series 264 by WAGO

• 4 conductors end terminal block
• with fixing flange
• for screw or similar mounting types
• fixing hole: Ø 3,2 mm
• CAGE CLAMP® connection technology
• front-entry wiring
• horizontal design
• center marking
• rated voltage (EN 60664-1): 800 V
• rated surge voltage: 8 kV
• rated current: 24 A
• single/ fine stranded wire rated cross section: 0.08 to 2.5 mm²
​stripped length: 8 to 9 mm

• suitable mounting carrier must be ordered separately


264-331 by WAGO

264-331

106829 264-331 264-331 terminal blocks series 264 by WAGO. • 4 conductors end terminal block• with fixing flange• for screw or similar mounting types• fixing hole: Ø 3,2 mm• CAGE CLAMP® connection technology• front-entry wiring• horizontal design• center marking• rated voltage (EN 60664-1): 800 V• rated surge voltage: 8 kV• rated current: 24 A• single/ fine stranded wire rated cross section: 0.08 to 2.5 mm²​stripped length: 8 to 9 mm • suitable mounting carrier must be ordered separately

Specifications

manufacturer
Manufacturer's name 264-331
Colour grey
Depth [mm] 32
Height [mm] 22,1
Width [mm] 10
Connection points 4
Data Sheet

Unit price

1,06 €

Stock: 500
Further delivery:
CW 04/2025

Minimum order quantity 10 units or
multiples of 10.
