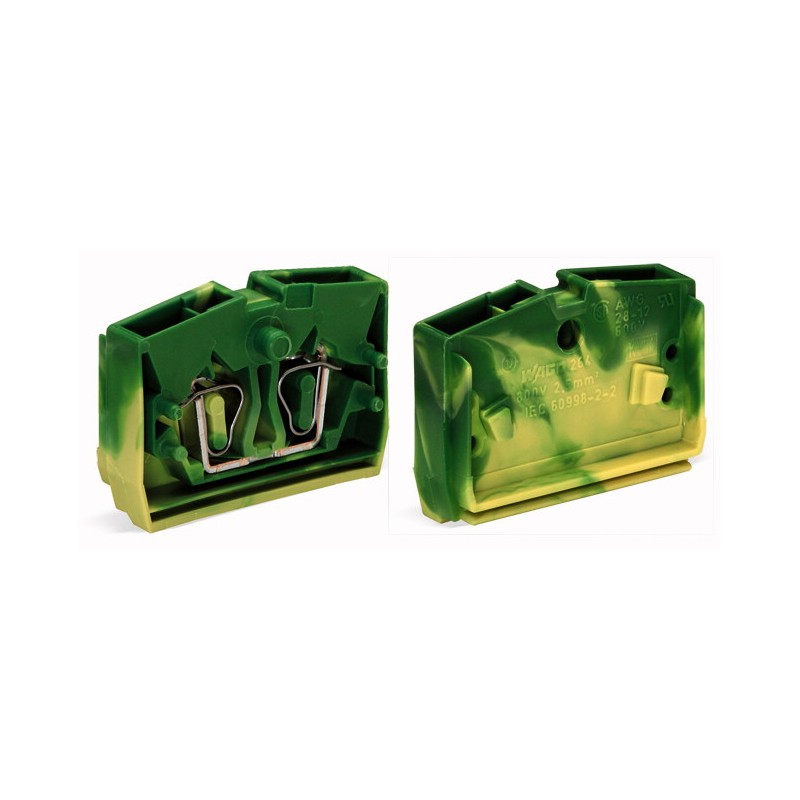

264-327

terminal blocks series 264 by WAGO

• 2 conductors center terminal block
• required between end plate and end terminal block for terminal strips with fixing flanges
• CAGE CLAMP® connection technology
• front-entry wiring
• horizontal design
• center marking
• rated voltage (EN 60664-1): 800 V
• rated surge voltage: 8 kV
• rated current: 24 A
• single/ fine stranded wire rated cross section: 0.08 to 2.5 mm²
​• strip length: 8 to 9 mm

• suitable mounting carrier must be ordered separately

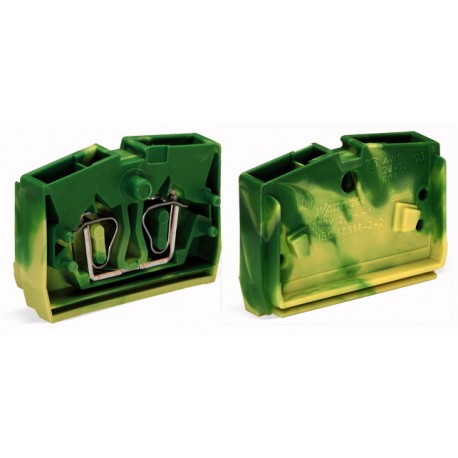

264-327 by WAGO

264-327

106828 264-327 264-327 terminal blocks series 264 by WAGO. • 2 conductors center terminal block• required between end plate and end terminal block for terminal strips with fixing flanges• CAGE CLAMP® connection technology• front-entry wiring• horizontal design• center marking• rated voltage (EN 60664-1): 800 V• rated surge voltage: 8 kV• rated current: 24 A• single/ fine stranded wire rated cross section: 0.08 to 2.5 mm²​• strip length: 8 to 9 mm • suitable mounting carrier must be ordered separately

Specifications

manufacturer
Manufacturer's name 264-327
Colour green/yellow
Depth [mm] 32
Height [mm] 22,1
Width [mm] 6
Connection points 2
Data Sheet

Unit price

0,75 €

Stock: 70
Further delivery:
CW 04/2025

Minimum order quantity 10 units or
multiples of 10.
