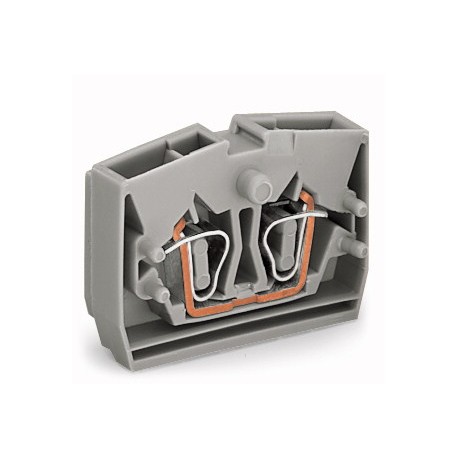

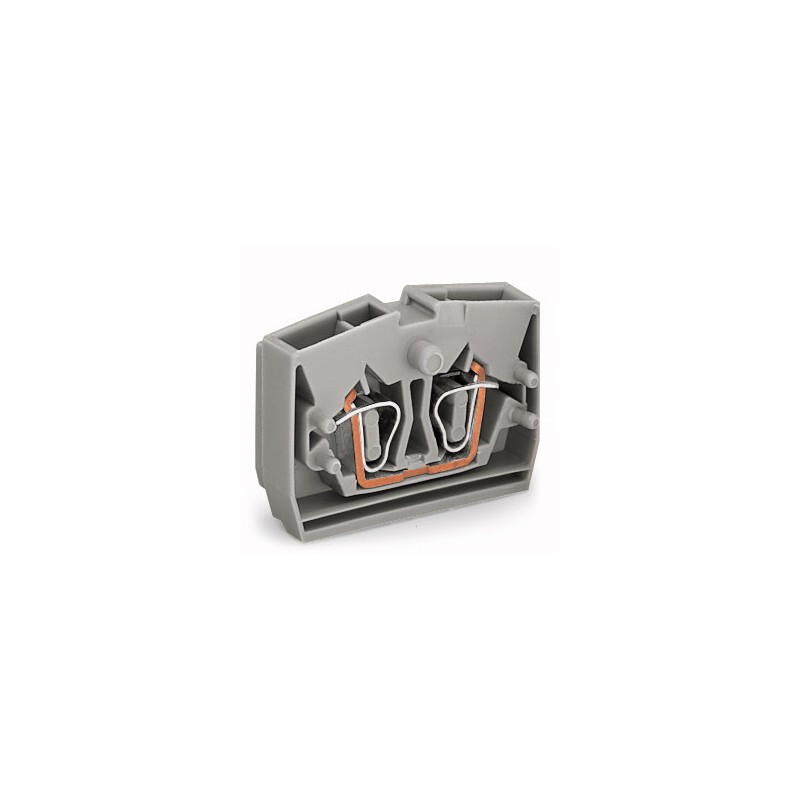

264-321

terminal blocks series 264 by WAGO

• 2 conductors center terminal block
• required between end plate and end terminal block for terminal strips with fixing flanges
• CAGE CLAMP® connection technology
• front-entry wiring
• horizontal design
• center marking
• rated voltage (EN 60664-1): 800 V
• rated surge voltage: 8 kV
• rated current: 24 A
• single/ fine stranded wire rated cross section: 0.08 to 2.5 mm²
​​• strip length: 8 to 9 mm


• suitable mounting carrier must be ordered separately

264-321 by WAGO

264-321

106825 264-321 264-321 terminal blocks series 264 by WAGO. • 2 conductors center terminal block• required between end plate and end terminal block for terminal strips with fixing flanges• CAGE CLAMP® connection technology• front-entry wiring• horizontal design• center marking• rated voltage (EN 60664-1): 800 V• rated surge voltage: 8 kV• rated current: 24 A• single/ fine stranded wire rated cross section: 0.08 to 2.5 mm²​​• strip length: 8 to 9 mm • suitable mounting carrier must be ordered separately

Specifications

manufacturer
Manufacturer's name 264-321
Colour grey
Depth [mm] 32
Height [mm] 22,1
Width [mm] 6
Connection points 2
Data Sheet

Unit price

0,703 €

Stock: 100
Further delivery:
CW 07/2025

Minimum order quantity 10 units or
multiples of 10.
