264-307

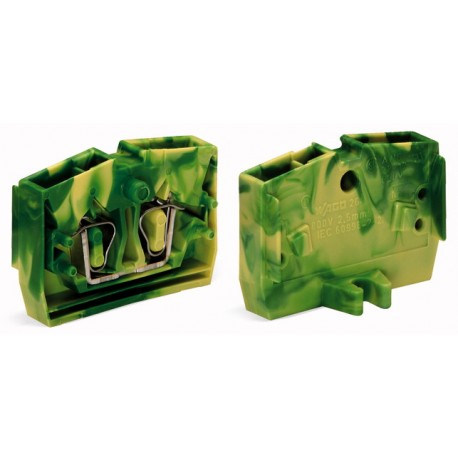

terminal blocks series 264 by WAGO

• 2 conductors end terminal block
• with fixing flange
• for screw or similar mounting types
• CAGE CLAMP® connection technology
• fixing hole: Ø 3,2 mm
• front-entry wiring
• horizontal design
• center marking
• rated voltage (EN 60664-1): 800 V
• rated surge voltage: 8 kV
• rated current: 24 A
• single/ fine stranded wire rated cross section: 0.08 to 2.5 mm²
​​• strip length: 8 to 9 mm

• suitable mounting carrier must be ordered separately

264-307 by WAGO

264-307

106824 264-307 264-307 terminal blocks series 264 by WAGO. • 2 conductors end terminal block• with fixing flange• for screw or similar mounting types• CAGE CLAMP® connection technology• fixing hole: Ø 3,2 mm• front-entry wiring• horizontal design• center marking• rated voltage (EN 60664-1): 800 V• rated surge voltage: 8 kV• rated current: 24 A• single/ fine stranded wire rated cross section: 0.08 to 2.5 mm²​​• strip length: 8 to 9 mm • suitable mounting carrier must be ordered separately

Specifications

manufacturer
Manufacturer's name 264-307
Colour green/yellow
Depth [mm] 32
Height [mm] 22,1
Width [mm] 6
Connection points 2
Data Sheet

Unit price

0,75 €

Stock: 90
Further delivery:
CW 52/2024

Minimum order quantity 10 units or
multiples of 10.
