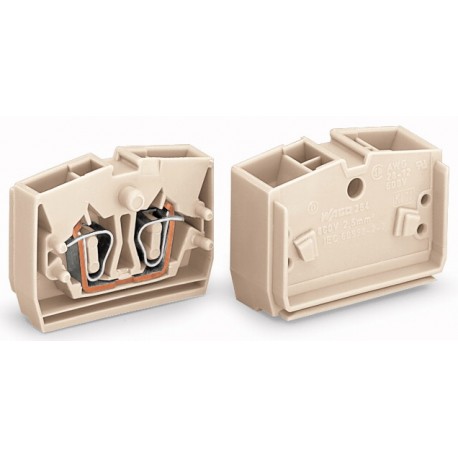

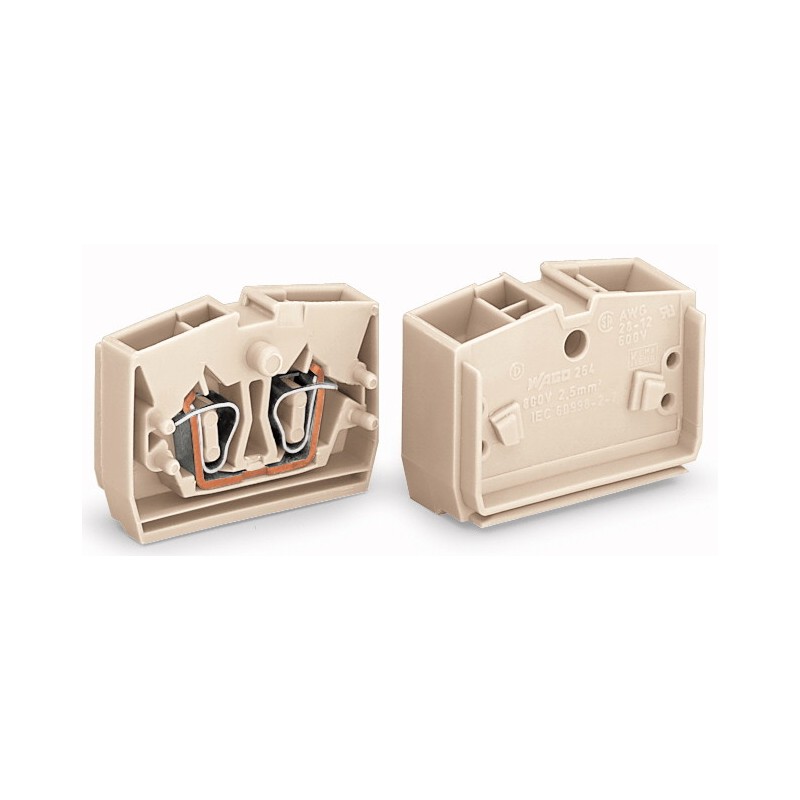

264-231

terminal blocks series 264 by WAGO

• 4 conductors center terminal block
• required between end plate and end terminal block for terminal strips with fixing flanges
• suitable for Ex e II applications
• CAGE CLAMP® connection technology
• front-entry wiring
• horizontal design
• center marking
• rated voltage (EN 60664-1): 690 V
• rated surge voltage: 8 kV
• rated current: 23 A
• single/ fine stranded wire rated cross section: 0.08 to 2.5 mm²
​* stripped length: 8 to 9 mm

• suitable mounting carrier must be ordered separately


264-231 by WAGO

264-231

106820 264-231 264-231 terminal blocks series 264 by WAGO. • 4 conductors center terminal block• required between end plate and end terminal block for terminal strips with fixing flanges• suitable for Ex e II applications• CAGE CLAMP® connection technology• front-entry wiring• horizontal design• center marking• rated voltage (EN 60664-1): 690 V• rated surge voltage: 8 kV• rated current: 23 A• single/ fine stranded wire rated cross section: 0.08 to 2.5 mm²​* stripped length: 8 to 9 mm • suitable mounting carrier must be ordered separately

Specifications

manufacturer
Manufacturer's name 264-231
Colour light grey
Depth [mm] 32
Height [mm] 22,1
Width [mm] 10
Connection points 4
Data Sheet

Unit price

1,10 €

Stock: 200
Further delivery:
CW 04/2025

Minimum order quantity 10 units or
multiples of 10.
