> Passive elements>Terminals>DIN rail terminals>Wago terminal blocks, 2,5mm², for DIN rail, 261 series>261-306

Manufacturers

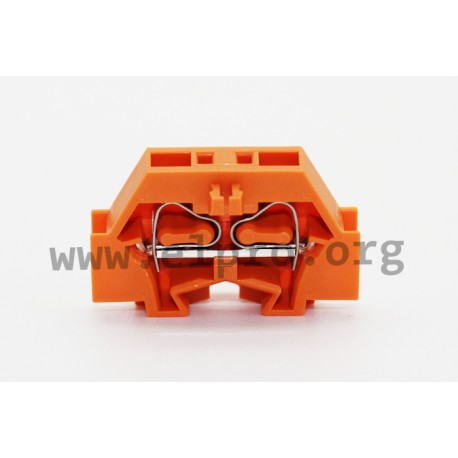

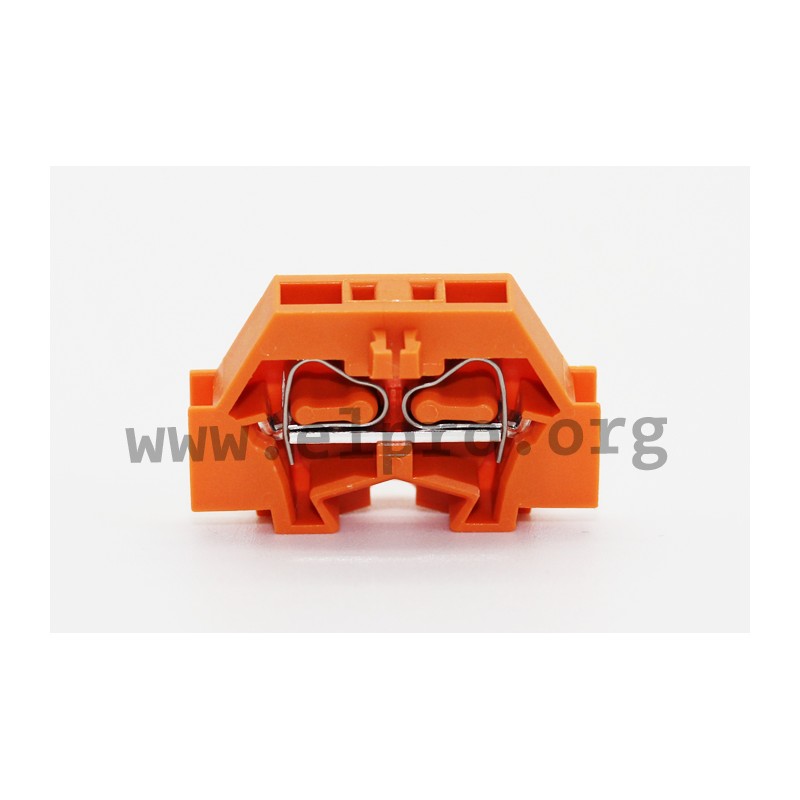

261-306

terminal blocks series 261 by WAGO

* 2 conductors
* with fixing flange
* CAGE CLAMP® connection technology
* for screw or similar mounting types
* fixing hole: Ø 3,2 mm
* side-entry wiring
• horizontal design
• side marking
• rated voltage (EN 60664-1): 500 V
* rated surge voltage: 6 kV
* rated current: 24 A
• single/ fine stranded wire rated cross section: 0.08 to 2.5 mm²
* stripped length: 8 to 9 mm

• suitable mounting carrier must be ordered separately

261-306, 2.5mm², DIN rail, Serie 261 by Wago

261-306

106812 261-306 261-306 terminal blocks series 261 by WAGO. * 2 conductors* with fixing flange* CAGE CLAMP® connection technology* for screw or similar mounting types* fixing hole: Ø 3,2 mm* side-entry wiring• horizontal design• side marking• rated voltage (EN 60664-1): 500 V* rated surge voltage: 6 kV* rated current: 24 A• single/ fine stranded wire rated cross section: 0.08 to 2.5 mm²* stripped length: 8 to 9 mm • suitable mounting carrier must be ordered separately

Specifications

manufacturer
Manufacturer's name 261-306
Colour orange
Depth [mm] 28
Height [mm] 18
Width [mm] 6
Connection points 2
Data Sheet

Unit price

0,399 €

Stock: 50
Further delivery:
CW 52/2024

Minimum order quantity 10 units or
multiples of 10.
