2606-3105/020-000

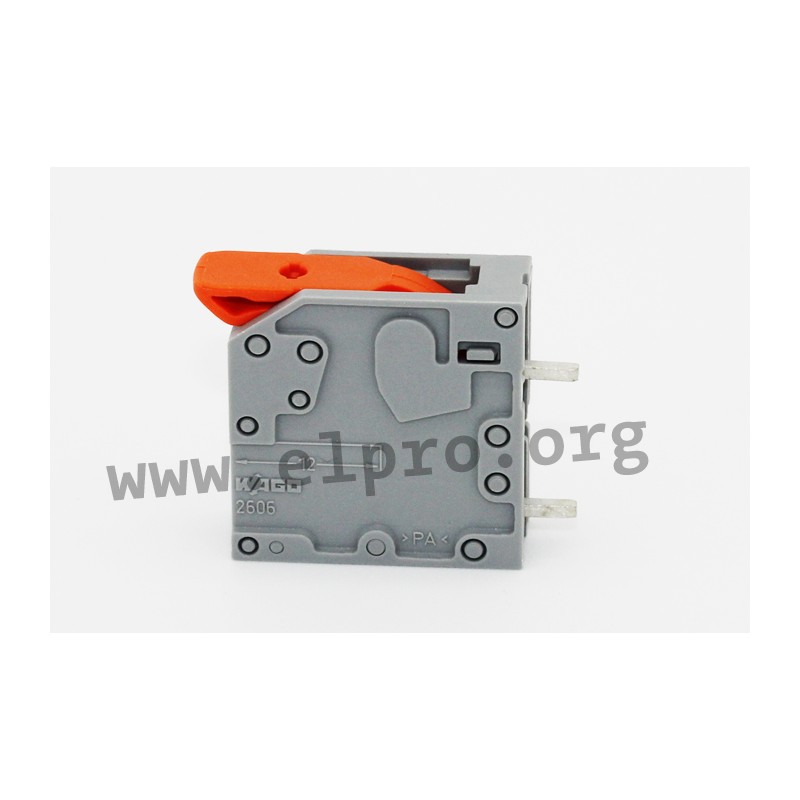

Spring force terminals series 2606 by WAGO

PCB terminal block (6mm²) with Push-In Cage Clamp and lever allow 100% tool-free handling. They are suitable for power supplies and enable a secure bonding by easy closing the lever. The flush-mount push-buttons close with minimal force. We are offering the following types by manufacturer WAGO in straight or angled design: 2606-1101, 2606-1103/020-000, 2606-1104/020-000, 2606-1105/020-000, 2606-3101, 2606-3103/020-000, 2606-3104/020-000 and 2606-3105/020-000.

  • rated cross section single stranded wire: 0.5 to 10mm²
  • rated cross section fine stranded wire: 0.5 to 10mm²
  • rated voltage: 800V
  • rated current: 41A
  • stripped length: 11 to 13mm
  • insulating material: PA 6.6
  • temperature range: -60 to +105°C
  • flammability class: UL94V-0
  • colour: grey
  • pitch: 7,5mm

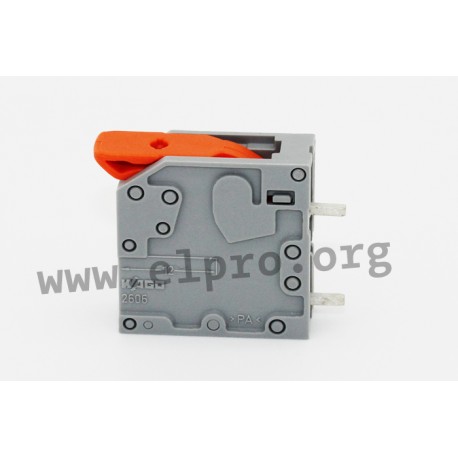

Wago 2606 series

2606-3105/020-000

109179 2606-3105/020-000 2606-3105/020-000 Spring force terminals series 2606 by WAGO. PCB terminal block (6mm²) with Push-In Cage Clamp and lever allow 100% tool-free handling. They are suitable for power supplies and enable a secure bonding by easy closing the lever. The flush-mount push-buttons close with minimal force. We are offering the following types by manufacturer WAGO in straight or angled design: 2606-1101, 2606-1103/020-000, 2606-1104/020-000, 2606-1105/020-000, 2606-3101, 2606-3103/020-000, 2606-3104/020-000 and 2606-3105/020-000. rated cross section single stranded wire: 0.5 to 10mm² rated cross section fine stranded wire: 0.5 to 10mm² rated voltage: 800V rated current: 41A stripped length: 11 to 13mm insulating material: PA 6.6 temperature range: -60 to +105°C flammability class: UL94V-0 colour: grey pitch: 7,5mm

Specifications

manufacturer
Manufacturer's name 2606-3105/020-000
Design straight
Number of poles 5
Actuator lever
Data Sheet

Unit price

6,19 €

Stock: 50
Further delivery:
CW 52/2024

Minimum order quantity 5 units or
multiples of 5.
