2604-1102

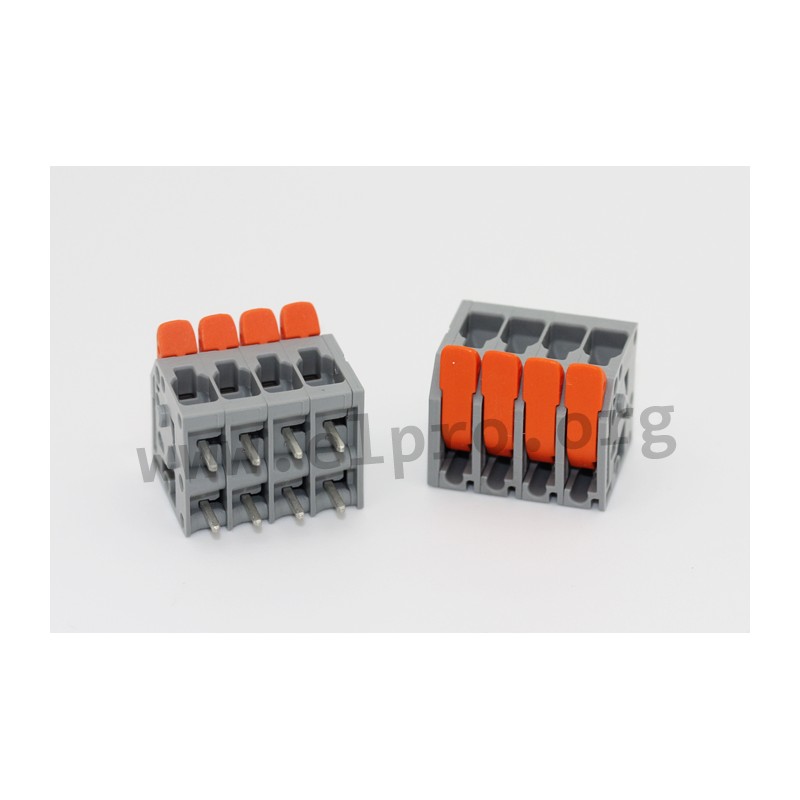

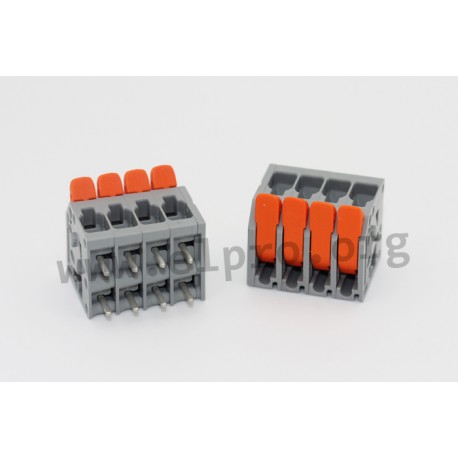

Wago spring force terminal series 2604

PCB terminal block (4mm²) with push-in cage clamp and lever allow 100% tool-free handling. They are suitable for power supplies and enable a secure bonding by easy closing the lever. The flush-mount push-buttons close with minimal force. We are offering various types by manufacturer WAGO in straight or angled design.

  • rated cross section single stranded wire: 0.2 to 4mm²
  • rated cross section fine stranded wire: 0.2 to 4mm²
  • stripped length: 9 to 11mm
  • insulating material: PA 6.6
  • temperature range: -60 to +105°C
  • flammability class: UL94V-0
  • colour: grey
2604-1102, Wago spring force terminals, pitch 5mm, 32A, with lever, 2604 series

2604-1102

131570 2604-1102 2604-1102 Wago spring force terminal series 2604. PCB terminal block (4mm²) with push-in cage clamp and lever allow 100% tool-free handling. They are suitable for power supplies and enable a secure bonding by easy closing the lever. The flush-mount push-buttons close with minimal force. We are offering various types by manufacturer WAGO in straight or angled design. rated cross section single stranded wire: 0.2 to 4mm² rated cross section fine stranded wire: 0.2 to 4mm² stripped length: 9 to 11mm insulating material: PA 6.6 temperature range: -60 to +105°C flammability class: UL94V-0 colour: grey

Specifications

manufacturer
Manufacturer's name 2604-1102
Design angled
Number of poles 2
Actuator lever
Data Sheet

Unit price

1,36 €

Stock: 325
Next incoming goods:
CW 01/2025
170 units

Further delivery:
CW 06/2025

Minimum order quantity 5 units or
multiples of 5.
