2604-3104

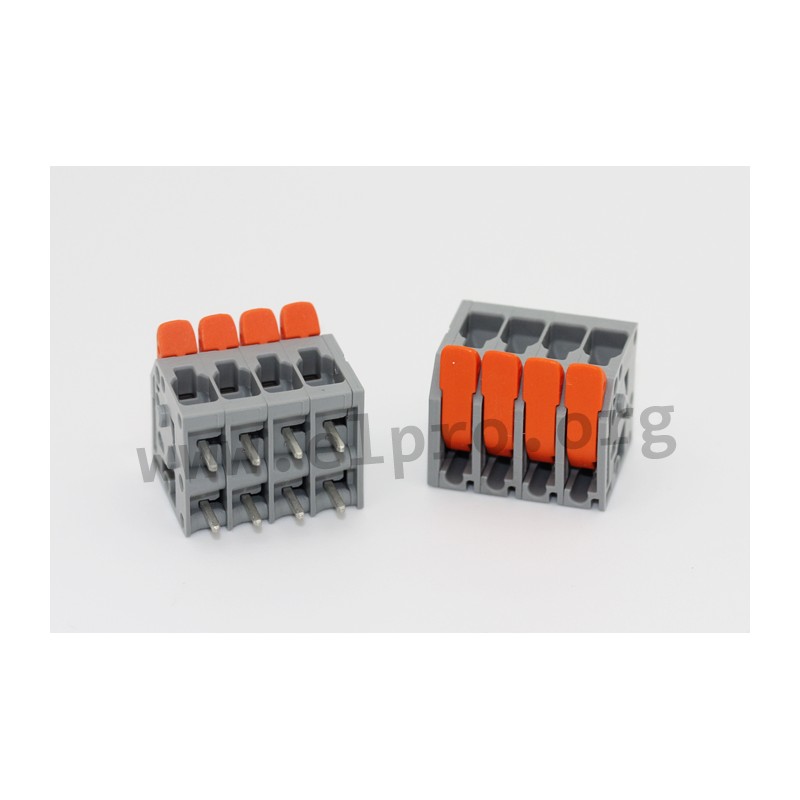

Wago spring force terminal series 2604

PCB terminal block (4mm²) with push-in cage clamp and lever allow 100% tool-free handling. They are suitable for power supplies and enable a secure bonding by easy closing the lever. The flush-mount push-buttons close with minimal force. We are offering various types by manufacturer WAGO in straight or angled design.

  • rated cross section single stranded wire: 0.2 to 4mm²
  • rated cross section fine stranded wire: 0.2 to 4mm²
  • stripped length: 9 to 11mm
  • insulating material: PA 6.6
  • temperature range: -60 to +105°C
  • flammability class: UL94V-0
  • colour: grey

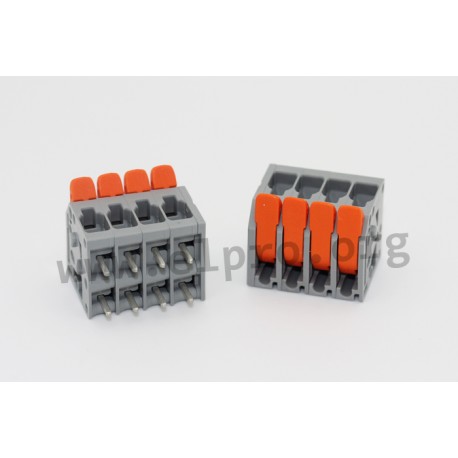

spring force terminals series 2604 by WAGO

2604-3104

109193 2604-3104 2604-3104 Wago spring force terminal series 2604. PCB terminal block (4mm²) with push-in cage clamp and lever allow 100% tool-free handling. They are suitable for power supplies and enable a secure bonding by easy closing the lever. The flush-mount push-buttons close with minimal force. We are offering various types by manufacturer WAGO in straight or angled design. rated cross section single stranded wire: 0.2 to 4mm² rated cross section fine stranded wire: 0.2 to 4mm² stripped length: 9 to 11mm insulating material: PA 6.6 temperature range: -60 to +105°C flammability class: UL94V-0 colour: grey

Specifications

manufacturer
Manufacturer's name 2604-3104
Design straight
Number of poles 4
Actuator lever
Data Sheet

Unit price

2,79 €

Stock: 115
Further delivery:
CW 09/2025

Minimum order quantity 5 units or
multiples of 5.
