250-403

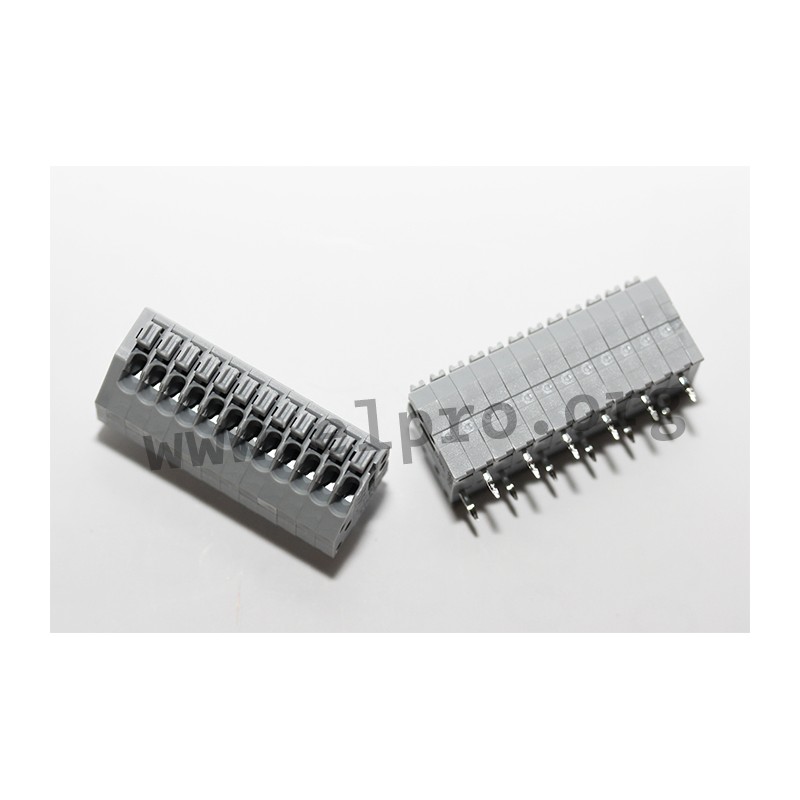

Wago spring terminal block series 250

  • spring force terminals with a lever and staggered poles
  • 45° wire entry angle
  • in grey
  • with 2-, 3-, 4-, 5-, 6-, 8-, 10-, 11- or 12-poles
  • insulator made of PA 6.6 (UL94V-0)
  • rated cross section single stranded wire: 0,14 to 0,5mm2
  • rated cross section fine stranded wire: 0,2 to 0,5mm2
  • rated voltage: 160V
  • rated current: 4A
  • pitch: 2,5mm

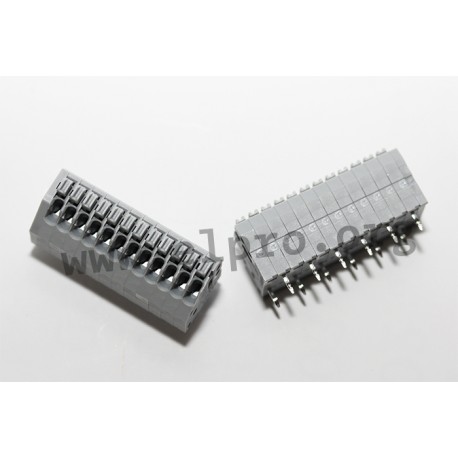

series 250 by Wago

250-403

41873 250-403 250-403 Wago spring terminal block series 250. spring force terminals with a lever and staggered poles 45° wire entry angle  in grey with 2-, 3-, 4-, 5-, 6-, 8-, 10-, 11- or 12-poles insulator made of PA 6.6 (UL94V-0) rated cross section single stranded wire: 0,14 to 0,5mm2 rated cross section fine stranded wire: 0,2 to 0,5mm2 rated voltage: 160V rated current: 4A pitch: 2,5mm

Specifications

manufacturer
Manufacturer's name 250-403
Design with lever
Number of poles 3
Length [mm] 9

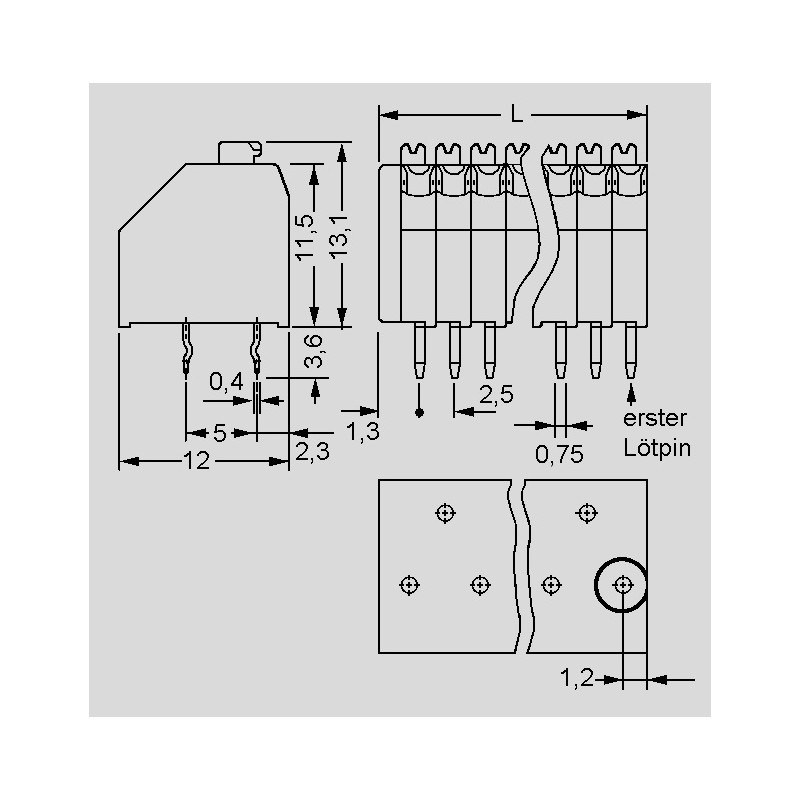

Data Sheet

Unit price

0,588 €

Stock: 425
Further delivery:
CW 01/2025

Minimum order quantity 5 units or
multiples of 5.
