> Passive elements>Terminals>Spring terminal blocks>Wago spring terminal blocks, pitch 3,5mm, 8A, 45°, with lever, 250 series>250-208

Manufacturers

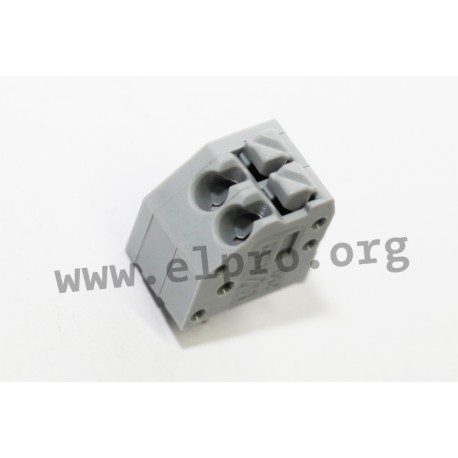

250-208

spring force terminals series 250 by Wago

• with lever
• conductor: 45°
• pitch: 3.5mm
• staggered poles
• 8-pole
• by Wago
• rated voltage: 250V
• rated current: 8A
• rated cross section single and fine stranded wire: 0.2 to 1.5mm2
• stripped length: 8.5 to 9.5mm
• insulating material: PA 6.6
• temperature range: -60 to +105°C
• flammability class: UL94V-0
• colour: grey

series 250 by Wago

250-208

41858 250-208 250-208 spring force terminals series 250 by Wago. • with lever• conductor: 45°• pitch: 3.5mm• staggered poles• 8-pole• by Wago• rated voltage: 250V• rated current: 8A• rated cross section single and fine stranded wire: 0.2 to 1.5mm2• stripped length: 8.5 to 9.5mm• insulating material: PA 6.6• temperature range: -60 to +105°C• flammability class: UL94V-0• colour: grey

Specifications

manufacturer
Manufacturer's name 250-208
Design with lever
Length [mm] 29,5
Data Sheet

Unit price

1,44 €

Stock: 89
Further delivery:
CW 01/2025

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
