233-108

Wago spring terminal block series 233

  • spring terminal blocks without a lever in grey
  • 2-, 3-, 4-, 5-, 6-, 8-, 10-, 12-, 16- or 24-pole
  • 45° wire entry angle
  • with 2 soldering pins per pole and an insulator made of PA 6.6 (UL94V-0)
  • suitable for a wire cross section of 0,08 to 0,5mm2
  • rated voltage: 160V
  • rated current: 6A
  • pitch: 2,5mm

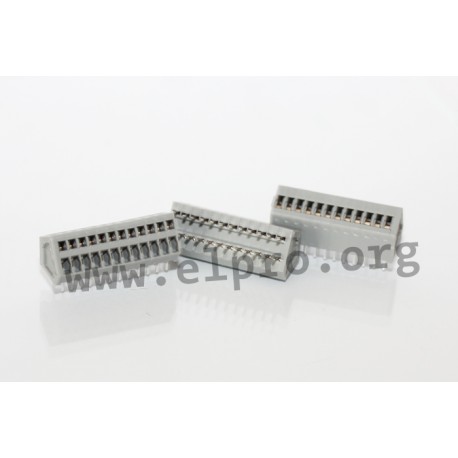

series 233 by Wago

233-108

41867 233-108 233-108 Wago spring terminal block series 233. spring terminal blocks without a lever in grey 2-, 3-, 4-, 5-, 6-, 8-, 10-, 12-, 16- or 24-pole 45° wire entry angle with 2 soldering pins per pole and an insulator made of PA 6.6 (UL94V-0) suitable for a wire cross section of 0,08 to 0,5mm2 rated voltage: 160V rated current: 6A pitch: 2,5mm

Specifications

manufacturer
Manufacturer's name 233-108
Design without lever
Number of poles 8
Length [mm] 22,3
Data Sheet

Unit price

2,39 €

Stock: 220
Further delivery:
CW 01/2025

Minimum order quantity 5 units or
multiples of 5.
