1364B.68

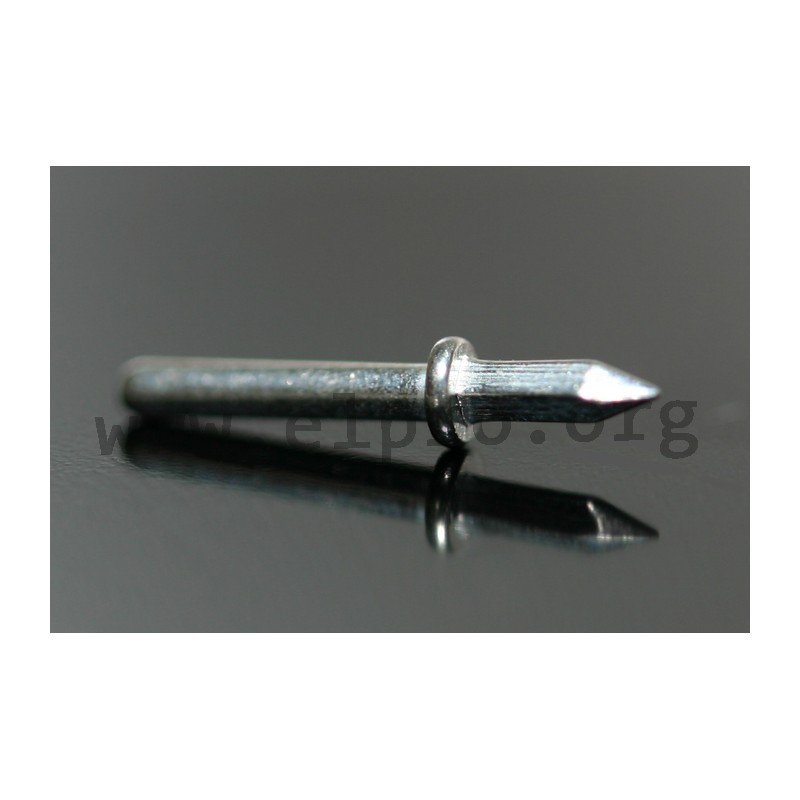

Vogt contact pin series 1364 and 1365

  • contact pins made of slid brass (CuZn37)
  • tin-plated surfaces
  • with a square or round press-in shaft (1364P.68)

Matching contact springs

1364B.68

32806 1364B.68 1364B.68 Vogt contact pin series 1364 and 1365. contact pins made of slid brass (CuZn37) tin-plated surfaces with a square or round press-in shaft (1364P.68) Matching contact springs

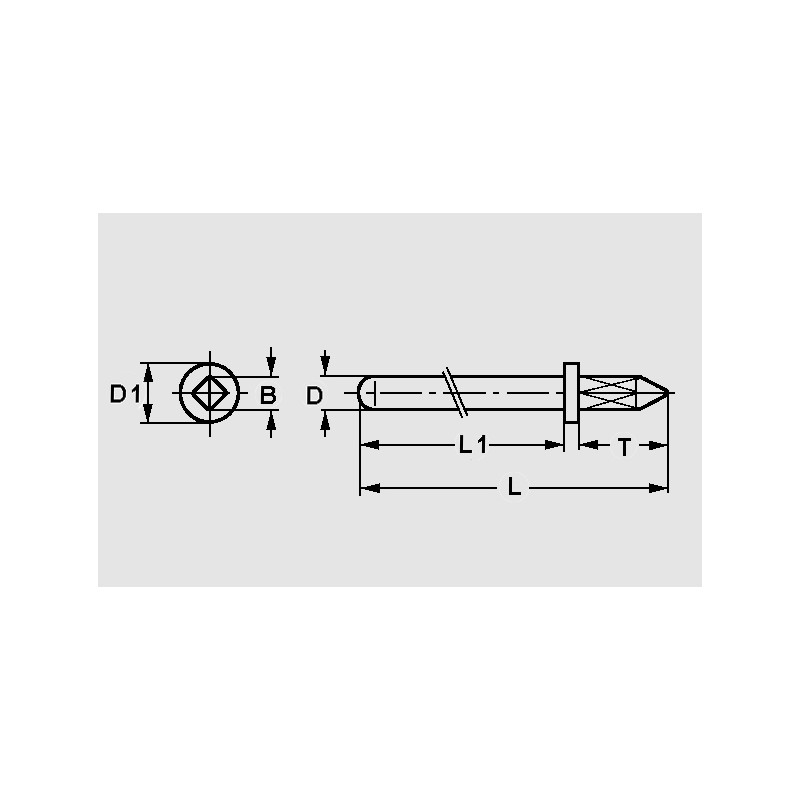

Specifications

manufacturer
Manufacturer's name 1364B.68
D1 [mm] 2
Width [mm] 1,05
L1 [mm] 8
T [mm] 3
Length [mm] 11,5
Data Sheet

Unit price

0,0239 €

Stock: 42860
Further delivery:
CW 14/2025

Minimum order quantity 1 to 860 units or multiples of 1.000 plus 0 to 860 .
