> Passive elements>Resistors>Metal oxide resistors>Vitrohm metal oxide resistors, 0207 housing, 5%, 1W, POS series>595-0 5,6 k

Manufacturers

595-0 5,6 k

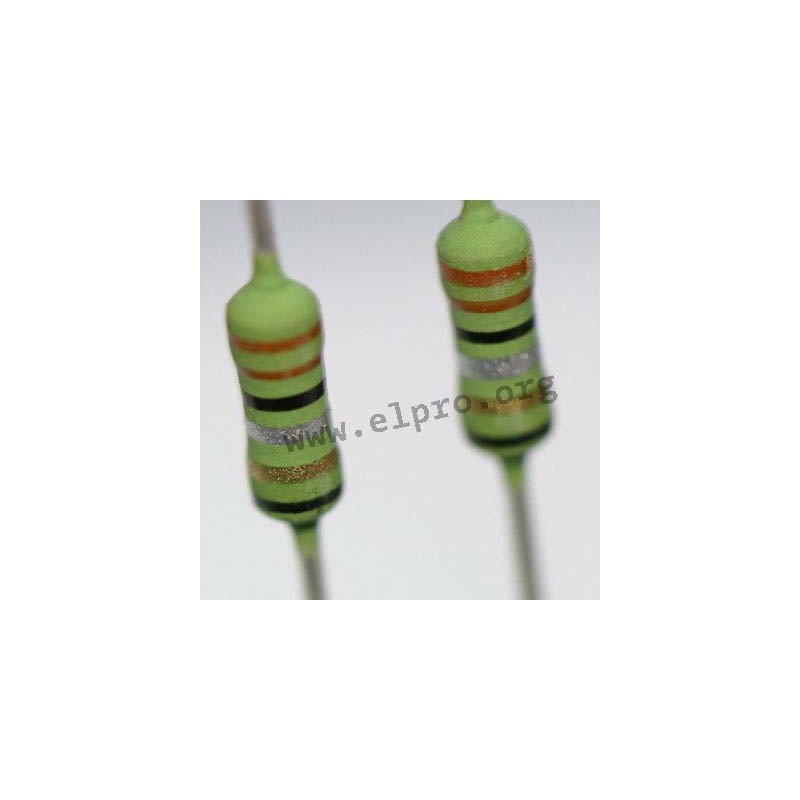

metal oxide resistors

• taped
• rugged metal oxide film
• high power dissipation in small size
• high temperature coating, non-flammable
• resistance tolerance: ±5%
• power (70°C): 1W
• operating voltage, max.: 500Veff
• thermal resistance, min.: 125K/W
• insulation resistance, max.: 1000MΩ
• insulation voltage (1 min): 500Veff
• temperature range: -55...+250°C

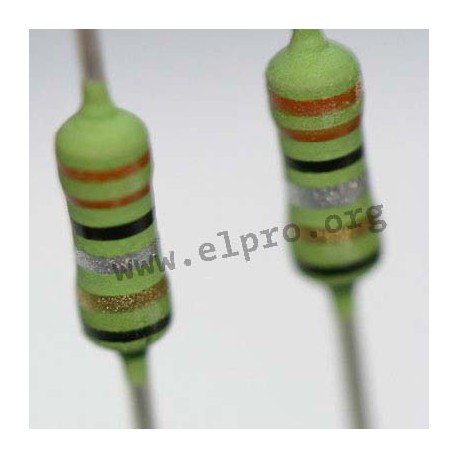

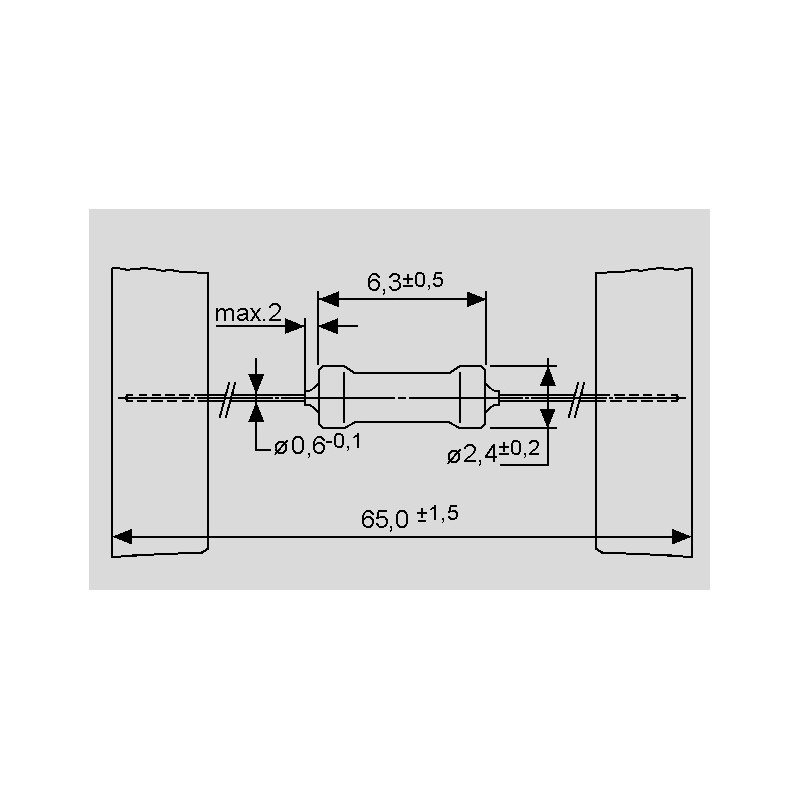

0207 housing

595-0 5,6 k

5902 595-0 5,6 k POS100JT-52-5K6AA POS100JT-52-5K6AA metal oxide resistors. • taped• rugged metal oxide film• high power dissipation in small size• high temperature coating, non-flammable• resistance tolerance: ±5%• power (70°C): 1W• operating voltage, max.: 500Veff• thermal resistance, min.: 125K/W• insulation resistance, max.: 1000MΩ• insulation voltage (1 min): 500Veff• temperature range: -55...+250°C

Specifications

manufacturer
Manufacturer's name POS100JT-52-5K6AA
Design 0207
Resistance [Ω] 5,6k
Power [W] 1
Tolerance [%] 5

Unit price

0,033 €

Stock: 3951
Further delivery:
CW 21/2025

Minimum order quantity 1 to 51 units or multiples of 100 plus 0 to 51 .
