> Passive elements>Resistors>Metal oxide resistors>Vitrohm metal oxide resistors, 0207 housing, 5%, 1W, POS series>595-0 1,2 R

Manufacturers

595-0 1,2 R

metal oxide resistors

• taped
• rugged metal oxide film
• high power dissipation in small size
• high temperature coating, non-flammable
• resistance tolerance: ±5%
• power (70°C): 1W
• operating voltage, max.: 500Veff
• thermal resistance, min.: 125K/W
• insulation resistance, max.: 1000MΩ
• insulation voltage (1 min): 500Veff
• temperature range: -55...+250°C

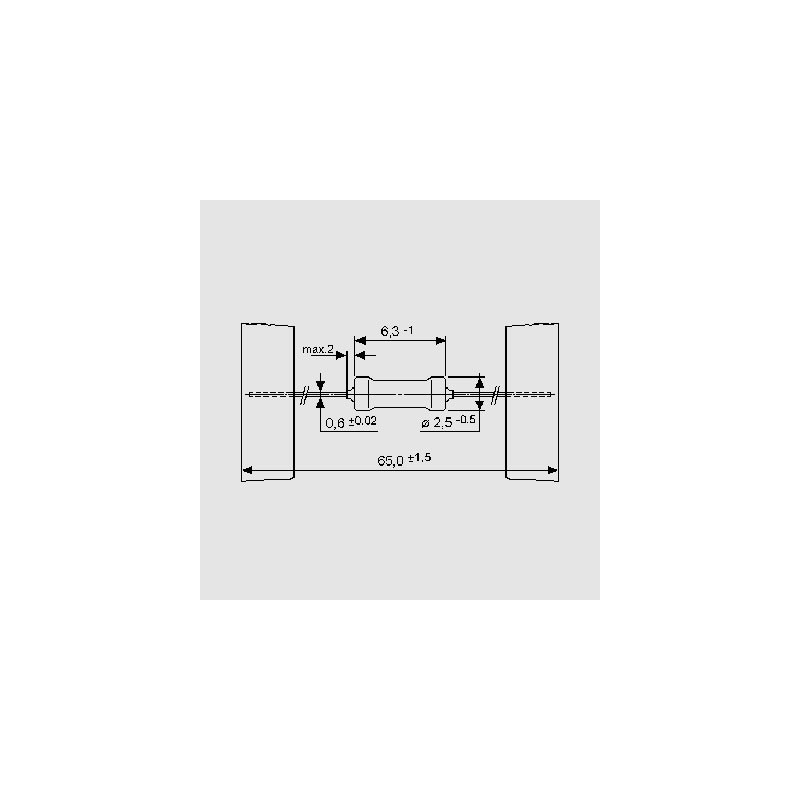

0207 housing

595-0 1,2 R

5803 595-0 1,2 R 595-0 1,2 R metal oxide resistors. • taped• rugged metal oxide film• high power dissipation in small size• high temperature coating, non-flammable• resistance tolerance: ±5%• power (70°C): 1W• operating voltage, max.: 500Veff• thermal resistance, min.: 125K/W• insulation resistance, max.: 1000MΩ• insulation voltage (1 min): 500Veff• temperature range: -55...+250°C

Discontinued items. Only remainder of stock available.

Specifications

Design 0207
Resistance [Ω] 1,2
Power [W] 1
Tolerance [%] 5

Unit price

0,05 €

Stock: 90
