> Passive elements>Resistors>Metal oxide resistors>Vitrohm metal oxide resistors, 0414 housing, 5%, 2W, POS series>593-0 15 R

Manufacturers

593-0 15 R

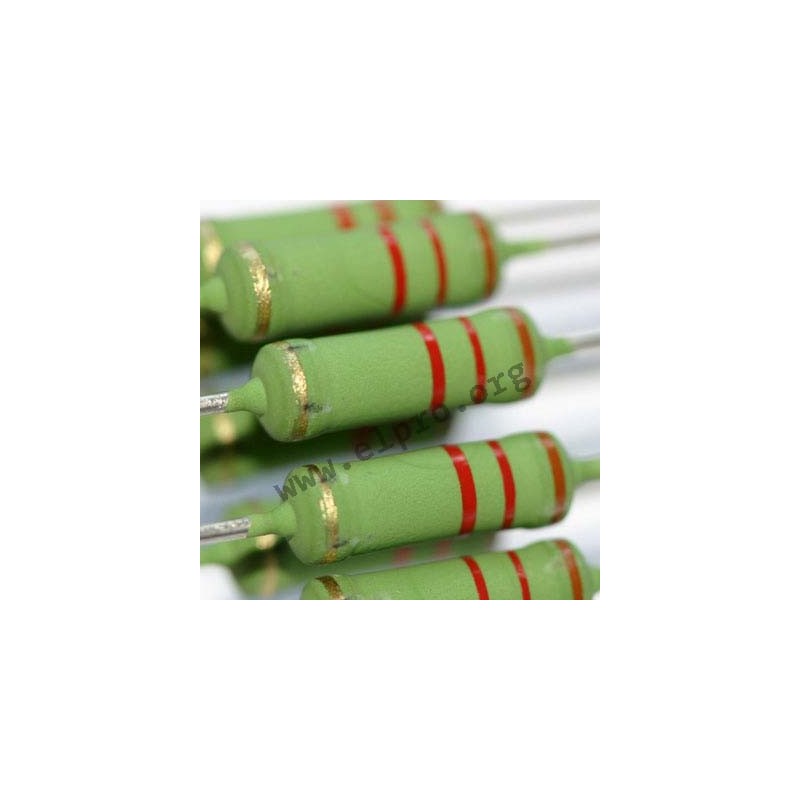

metal oxide resistors

• taped
• rugged metal oxide film
• high power dissipation in small size
• high temperature coating, non-flammable
• resistance tolerance: ±5%
• power (70°C): 2 Watt
• operating voltage: 500Veff
• thermal resistance, min.: 80K/W
• insulation resistance: >1000MΩ
• insulation voltage (1 min): 500Veff
• temperature range: -55...+235°C

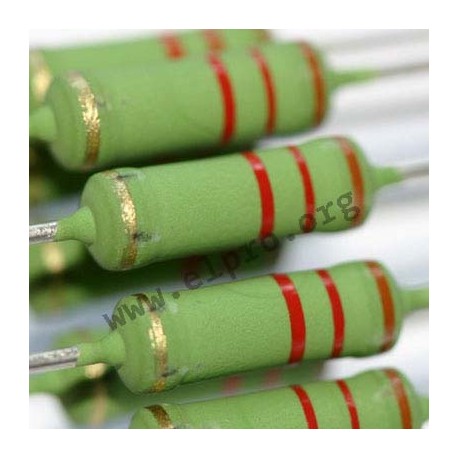

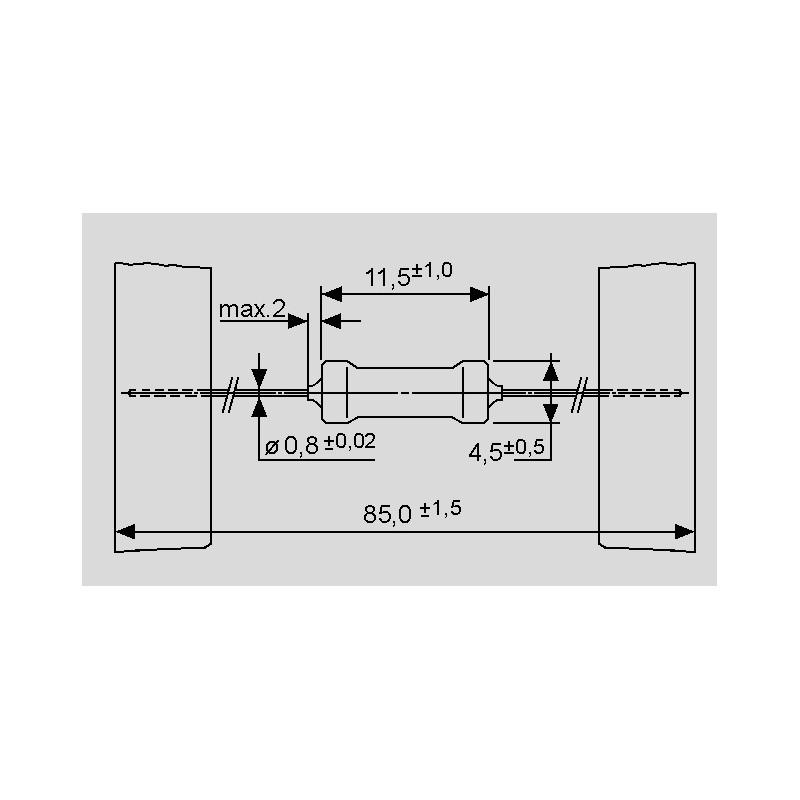

0414 housing

593-0 15 R

5733 593-0 15 R POS200JT-73-15RAA POS200JT-73-15RAA metal oxide resistors. • taped• rugged metal oxide film• high power dissipation in small size• high temperature coating, non-flammable• resistance tolerance: ±5%• power (70°C): 2 Watt• operating voltage: 500Veff• thermal resistance, min.: 80K/W• insulation resistance: >1000MΩ• insulation voltage (1 min): 500Veff• temperature range: -55...+235°C

Specifications

manufacturer
Manufacturer's name POS200JT-73-15RAA
Design 0414
Resistance [Ω] 15
Power [W] 2
Tolerance [%] 5
Data Sheet

Unit price

0,08 €

Stock: 443
Further delivery:
CW 26/2025

Minimum order quantity 1 to 43 units or multiples of 100 plus 0 to 43 .
