Manufacturers

590-0 39 k

metal oxide resistors

* taped
* rugged metal oxide film
* high power dissipation in small size
* high temperature coating, non-flammable
* resistance tolerance:: ±5%
* power (70°C): 3 Watt
* operating voltage: 750Veff
* thermal resistance: <70K/W
* insulation resistance: >103MΩ
* insulation voltage (1 min): 500Veff
* temperature range: -55...+250°C

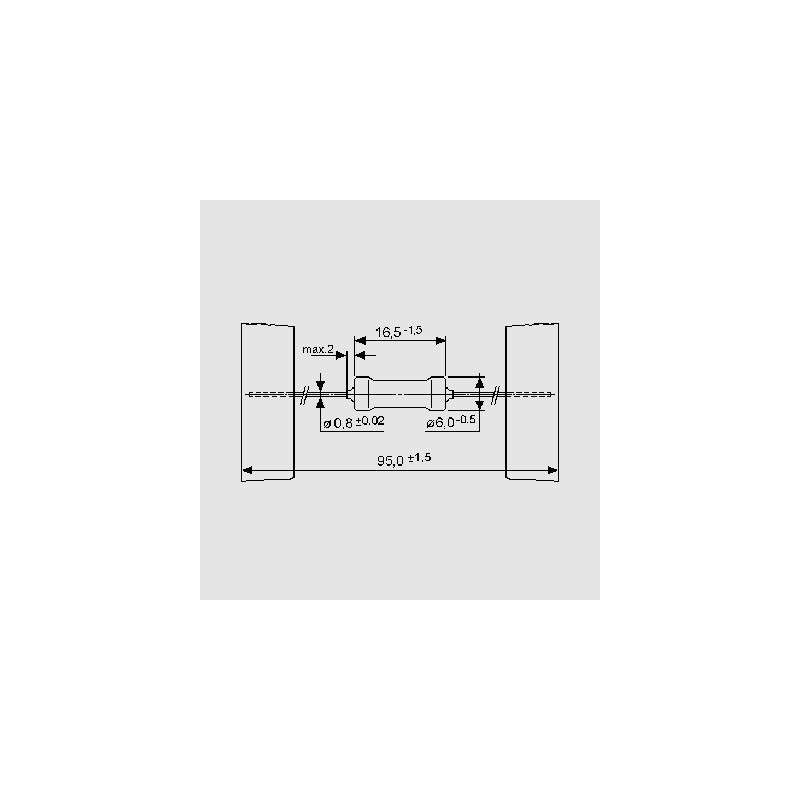

0617 housing

590-0 39 k

5605 590-0 39 k 590-0 39 k metal oxide resistors. * taped * rugged metal oxide film * high power dissipation in small size * high temperature coating, non-flammable * resistance tolerance:: ±5% * power (70°C): 3 Watt * operating voltage: 750Veff * thermal resistance: &lt;70K/W * insulation resistance: &gt;103MΩ * insulation voltage (1 min): 500Veff * temperature range: -55...+250°C

Discontinued items. Only remainder of stock available.

Specifications

Design 0617
Resistance [Ω] 39k
Power [W] 3
Tolerance [%] 5
Data Sheet

Unit price

0,15 €

Stock: 6
