> Passive elements>Resistors>Metal oxide resistors>Vitrohm metal oxide resistors, 0617 housing, 5%, 3W, POS series>590-0 100 R

Manufacturers

590-0 100 R

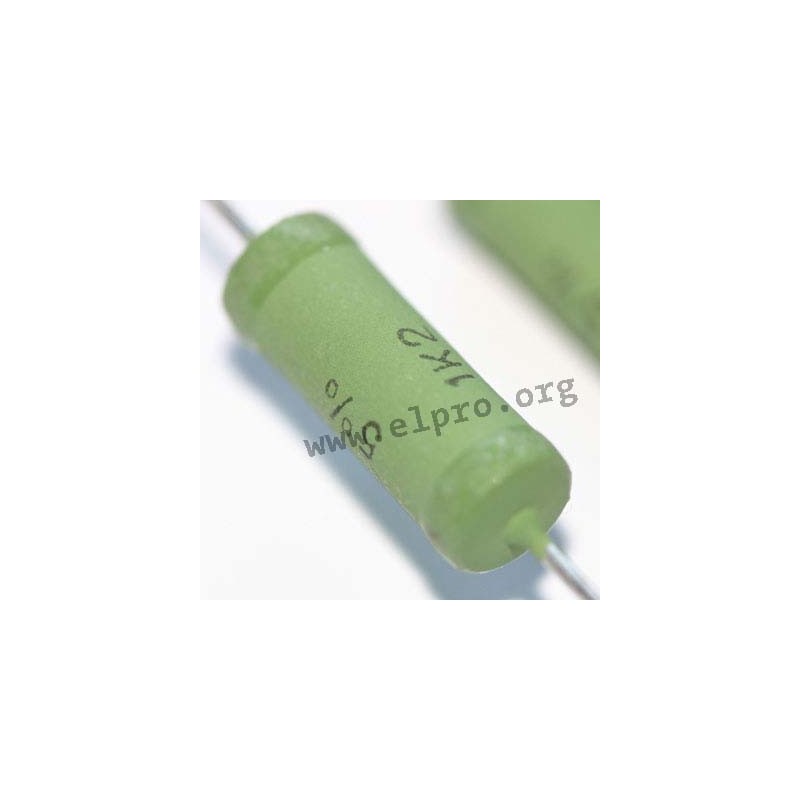

metal oxide resistors

• taped
• rugged metal oxide film
• high power dissipation in small size
• high temperature coating, non-flammable
• resistance tolerance:: ±5%
• power (70°C): 3 Watt
• operating voltage: 750Veff
• thermal resistance, min: 60K/W
• insulation resistance: >103MΩ
• insulation voltage (1 min): 500Veff
• temperature range: -55...+250°C

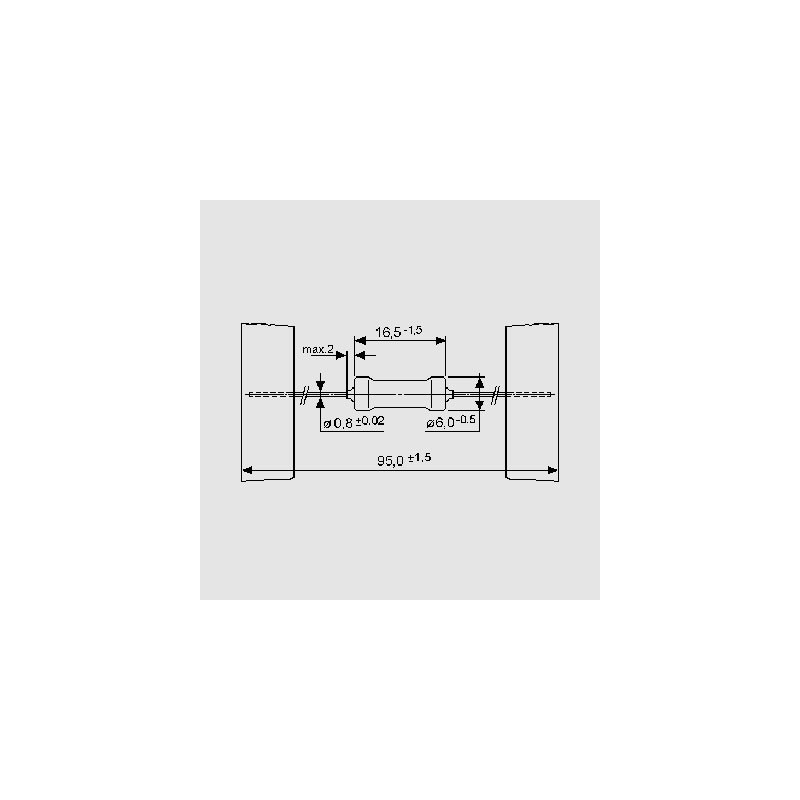

0617 housing

590-0 100 R

5572 590-0 100 R POS300JT-77-100RAA POS300JT-77-100RAA metal oxide resistors. • taped• rugged metal oxide film• high power dissipation in small size• high temperature coating, non-flammable• resistance tolerance:: ±5%• power (70°C): 3 Watt• operating voltage: 750Veff• thermal resistance, min: 60K/W• insulation resistance: >103MΩ• insulation voltage (1 min): 500Veff• temperature range: -55...+250°C

Specifications

manufacturer
Manufacturer's name POS300JT-77-100RAA
Design 0617
Resistance [Ω] 100
Power [W] 3
Tolerance [%] 5
Data Sheet

Unit price

0,225 €

Stock: 981
Next incoming goods:
CW 07/2025
1000 units

Further delivery:
CW 08/2025

Minimum order quantity 1 to 81 units or multiples of 100 plus 0 to 81 .
