216-8 220 R

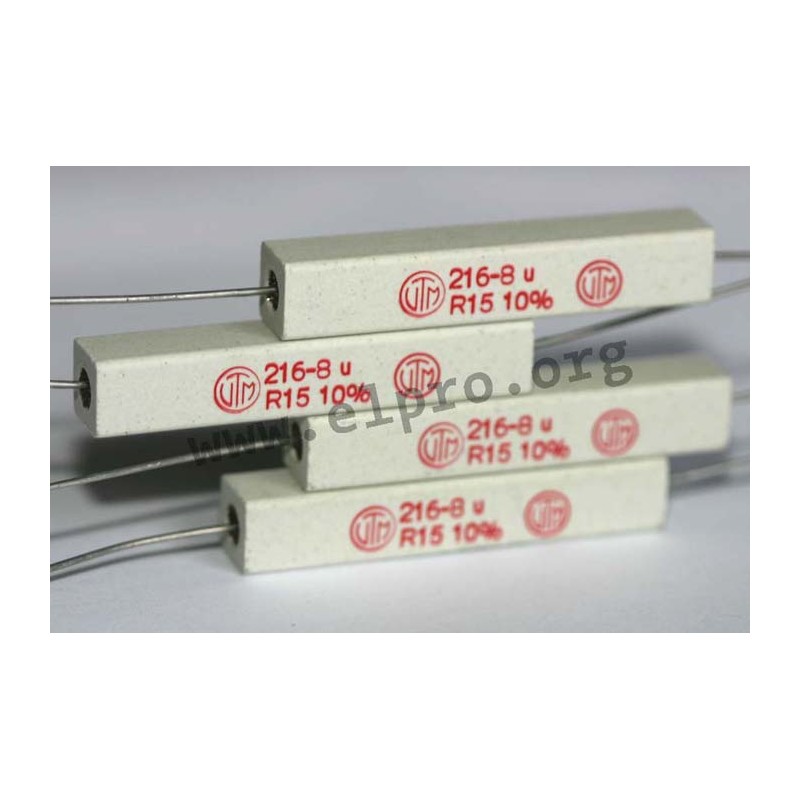

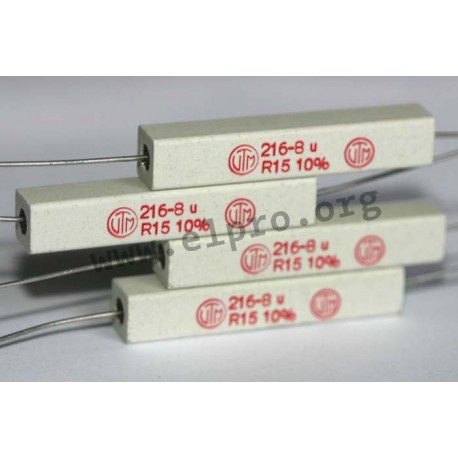

ceramic high-load resistors

• series: KH216-8
• bulk
• wound on a glass fiber core with special direct terminals, temperature resistant
• wound resistor embedded in a cement sealed ceramic tube
• resistance tolerance: ±10%
• power rating (70°C): 11W
• operating voltage, max.: (PxR)1/2
• thermal resistance: 25K/Ω
• insulation resistance: >104MΩ
• insulation voltage: 2000Veff
• temperature coefficient: 0 ±40ppm/K
• temperature range: -55 to +350°C
• climatic category: 55/200/21
• failure rate (value dependent): approx. 100x10-9/h
• terminal tensile strength: 50N
• solderability: 2.5s
• derating: linear 70°C to 350°C (0Ω)
• by Vitrohm

Vitrohm series KH216-8

216-8 220 R

4441 216-8 220 R KHS11AKB-AX-220RAA KHS11AKB-AX-220RAA ceramic high-load resistors. • series: KH216-8• bulk• wound on a glass fiber core with special direct terminals, temperature resistant• wound resistor embedded in a cement sealed ceramic tube• resistance tolerance: ±10%• power rating (70°C): 11W• operating voltage, max.: (PxR)1/2• thermal resistance: 25K/Ω• insulation resistance: >104MΩ• insulation voltage: 2000Veff• temperature coefficient: 0 ±40ppm/K• temperature range: -55 to +350°C• climatic category: 55/200/21• failure rate (value dependent): approx. 100x10-9/h• terminal tensile strength: 50N• solderability: 2.5s• derating: linear 70°C to 350°C (0Ω)• by Vitrohm

Specifications

manufacturer
Manufacturer's name KHS11AKB-AX-220RAA
Resistance [Ω] 220
Power [W] 11
Tolerance [%] 10
Data Sheet

Unit price

0,654 €

Stock: 229
Next incoming goods:
CW 48/2024
100 units

Further delivery:
CW 20/2025

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
