208-8 1,2 R

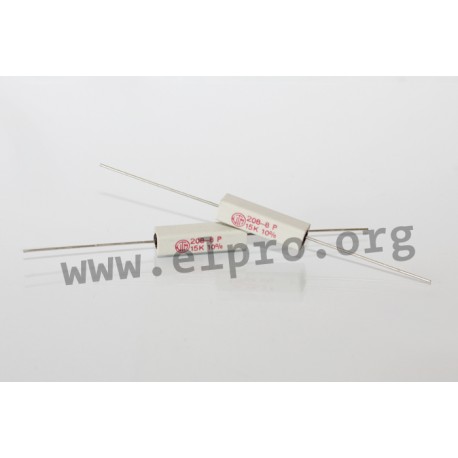

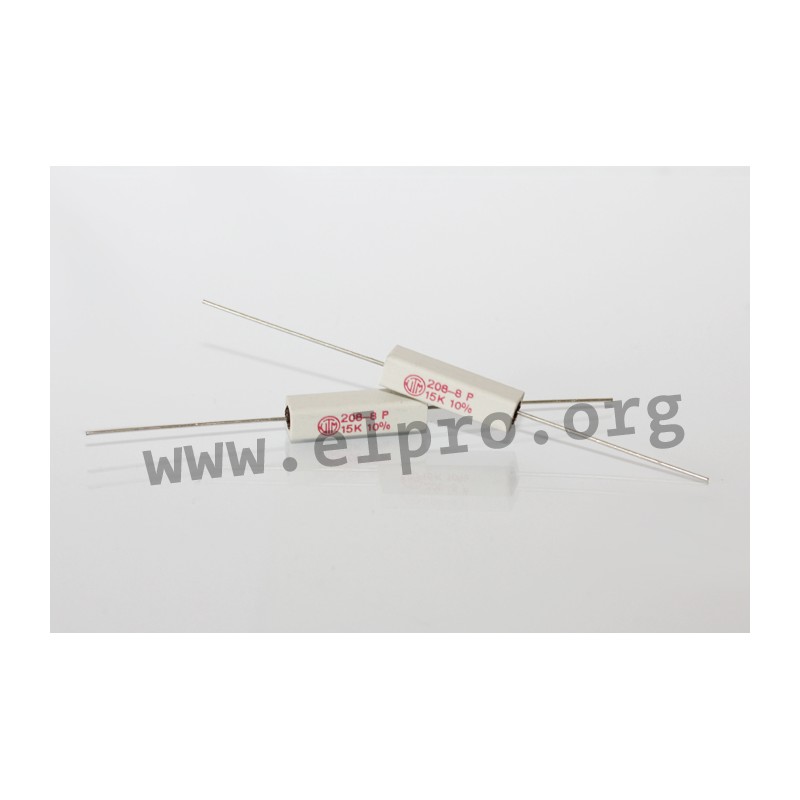

ceramic high-load resistors

• power: 5W
• tolerance: 10%
• style: bulk
• wound on a glass fiber core with special direct terminals, temperature resistant
• wound resistor embedded in a cement sealed ceramic tube
• operating voltage, max.: (PxR)1/2
• thermal resistance: 50K/Ω
• insulation resistance, min.: 104 MΩ
• insulation voltage (1min.): 2000Vrms
• temperature coefficient
0R075...0R3: +400 ±50ppm/K
0R33...470R: 0 ±40ppm/K
510R...15K: 0 ±10ppm/K
• temperature range: -55...+350°C
• climatic category: 55/200/21
• failure rate (value dependent): approx. 100x10-9/h
• terminal tensile strength: 50N
• solderability: 2,5s
• derating: linear 70°C to 350°C (0W)
• by Vitrohm

208-8 1,2 R

208-8 1,2 R

4238 208-8 1,2 R KHS500KB-AX-1R2AA KHS500KB-AX-1R2AA ceramic high-load resistors. • power: 5W• tolerance: 10%• style: bulk• wound on a glass fiber core with special direct terminals, temperature resistant• wound resistor embedded in a cement sealed ceramic tube• operating voltage, max.: (PxR)1/2• thermal resistance: 50K/Ω• insulation resistance, min.: 104 MΩ• insulation voltage (1min.): 2000Vrms• temperature coefficient0R075...0R3: +400 ±50ppm/K0R33...470R: 0 ±40ppm/K510R...15K: 0 ±10ppm/K• temperature range: -55...+350°C• climatic category: 55/200/21• failure rate (value dependent): approx. 100x10-9/h• terminal tensile strength: 50N• solderability: 2,5s• derating: linear 70°C to 350°C (0W)• by Vitrohm

Specifications

manufacturer
Manufacturer's name KHS500KB-AX-1R2AA
Resistance [Ω] 1,2
Power [W] 5
Tolerance [%] 10
Data Sheet

Unit price

0,312 €

Stock: 214
Next incoming goods:
CW 51/2024
200 units

Further delivery:
CW 20/2025

Minimum order quantity 1 to 4 units or multiples of 10 plus 0 to 4 .
