> Passive elements>Resistors>Wire resistors>Vitrohm wire resistors, 0613 housing, 5%, 2,5W, CR series>AC 03 0,27 R

Manufacturers

AC 03 0,27 R

cemented wire resistors

* taped
* wound on a ceramic core
* enamelled resistor core
* resistance tolerance: ±5%
* power rating(P70): 2.5W
* insulation voltage, max.: 75Veff
* temperature range: -55...+350°C

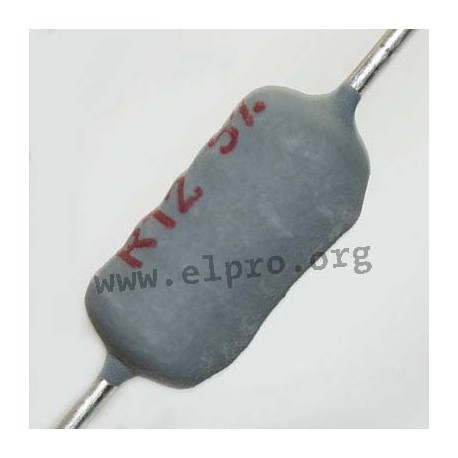

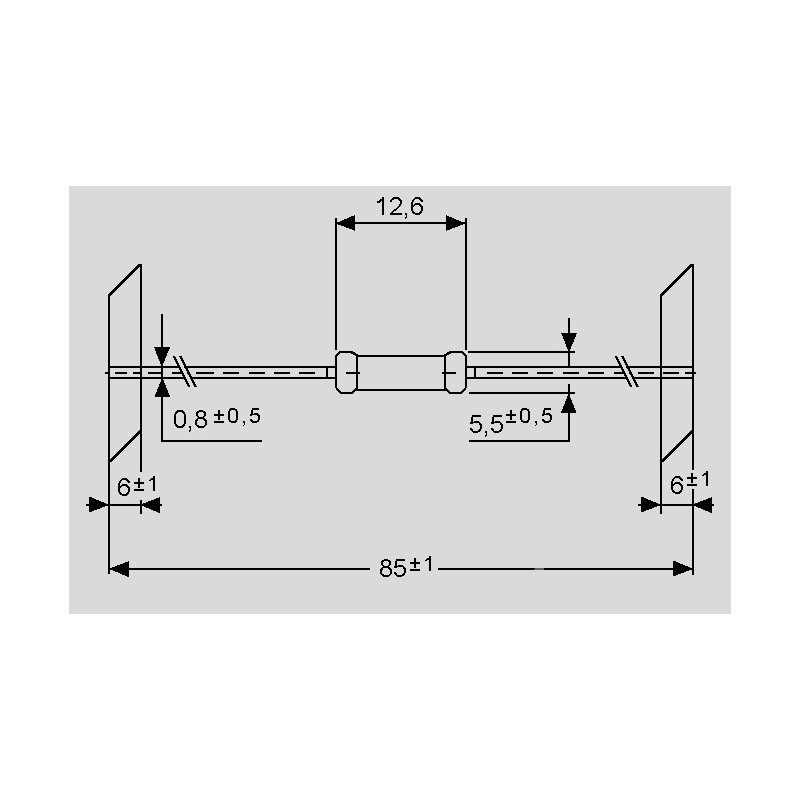

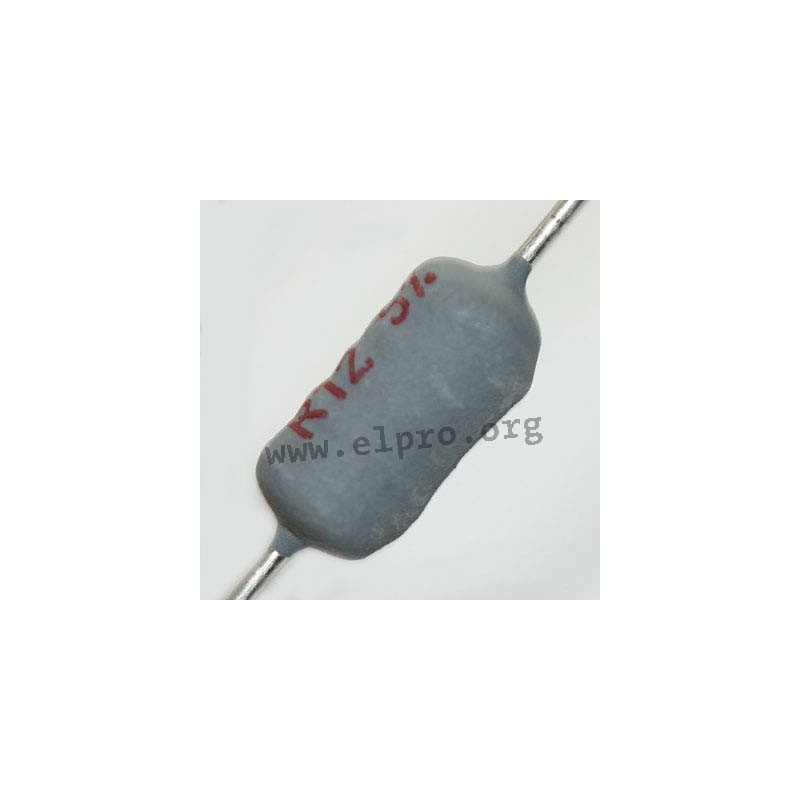

0613 housing

AC 03 0,27 R

6971 AC 03 0,27 R CRS300JT-73-R27AA CRS300JT-73-R27AA cemented wire resistors. * taped * wound on a ceramic core * enamelled resistor core * resistance tolerance: ±5% * power rating(P70): 2.5W * insulation voltage, max.: 75Veff * temperature range: -55...+350°C

Specifications

manufacturer
Manufacturer's name CRS300JT-73-R27AA
Design 0613
Resistance [Ω] 0,27
Power [W] 2,5
Tolerance [%] 5
Data Sheet

Unit price

0,19 €

Stock: 14865
Further delivery:
CW 10/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
