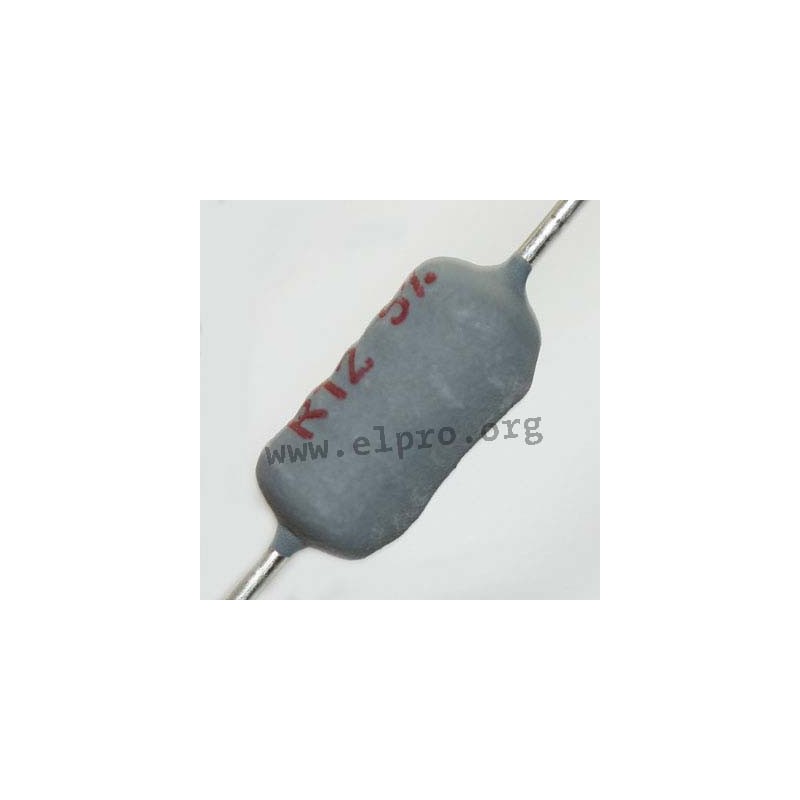

AC 03 0,12 R

cemented wire resistors

• taped
• wound on a ceramic core
• enamelled resistor core
• resistance tolerance: ±5%
• power rating(P70): 2.5W
• insulation voltage, max.: 75Veff
• temperature range: -55...+350°C

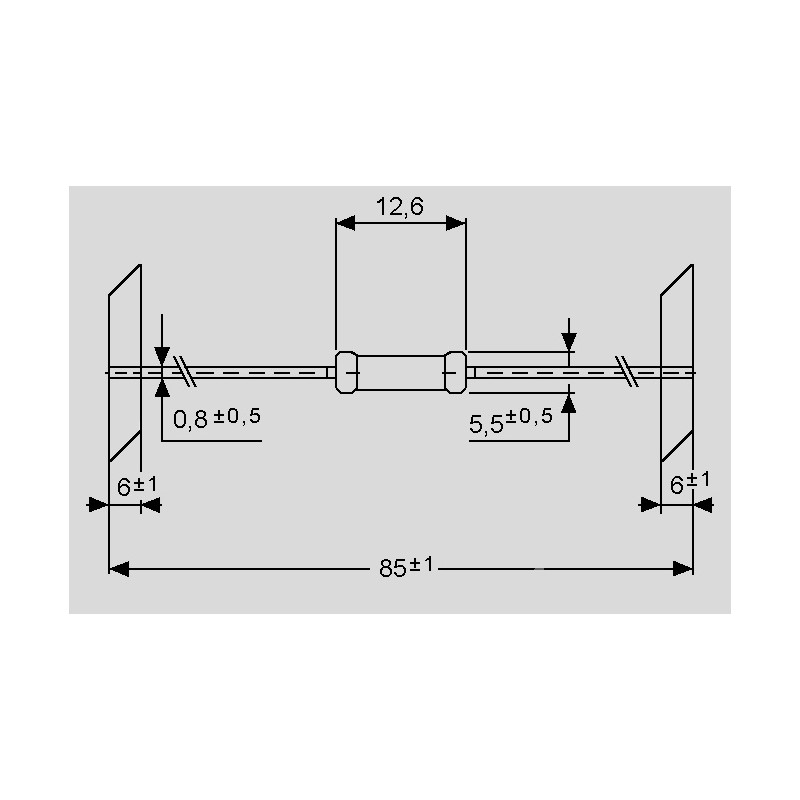

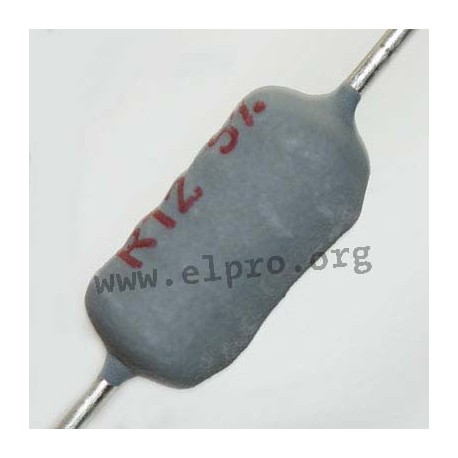

0613 housing

AC 03 0,12 R

6967 AC 03 0,12 R CRS300JT-73-R12AA CRS300JT-73-R12AA cemented wire resistors. * taped * wound on a ceramic core * enamelled resistor core * resistance tolerance: ±5% * power rating(P70): 2.5W * insulation voltage, max.: 75Veff * temperature range: -55...+350°C

Specifications

manufacturer
Manufacturer's name CRS300JT-73-R12AA
Design 0613
Resistance [Ω] 0,12
Power [W] 2,5
Tolerance [%] 5
Data Sheet

Unit price

0,181 €

Stock: 1.231
Further delivery:
CW 22/2025

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
