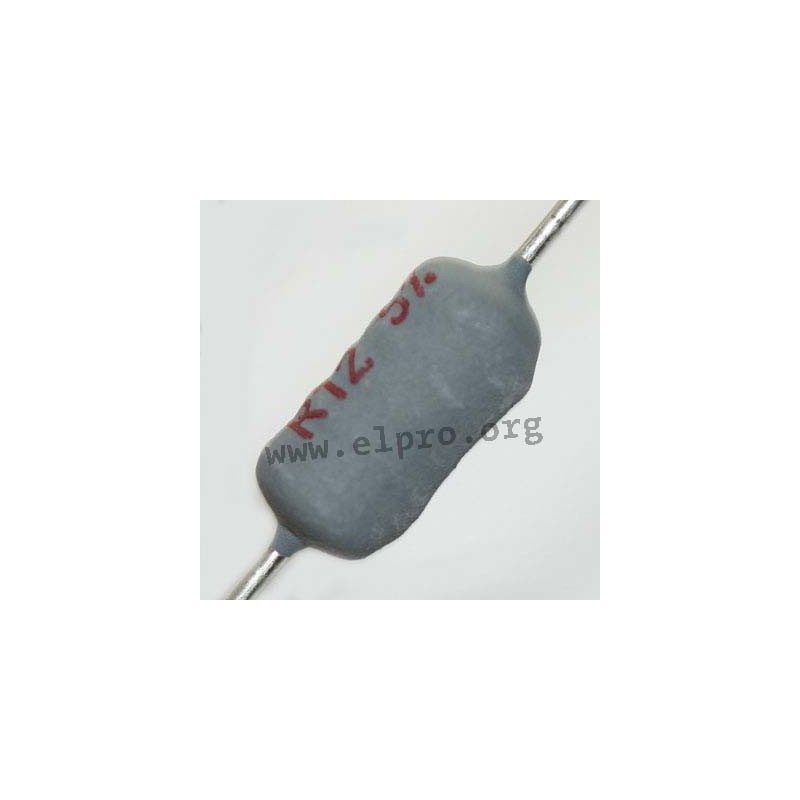

AC 03 0,47 R

cemented wire resistors

* taped
* wound on a ceramic core
* enamelled resistor core
* resistance tolerance: ±5%
* power rating(P70): 2.5W
* insulation voltage, max.: 75Veff
* temperature range: -55...+350°C

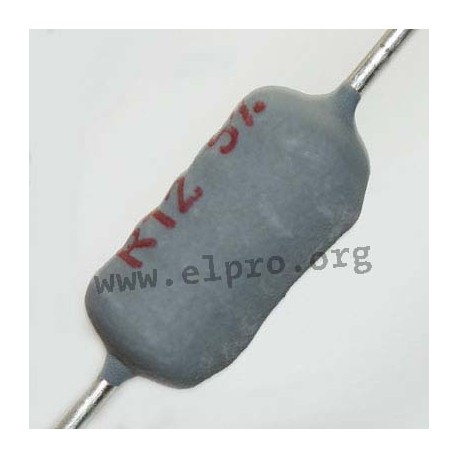

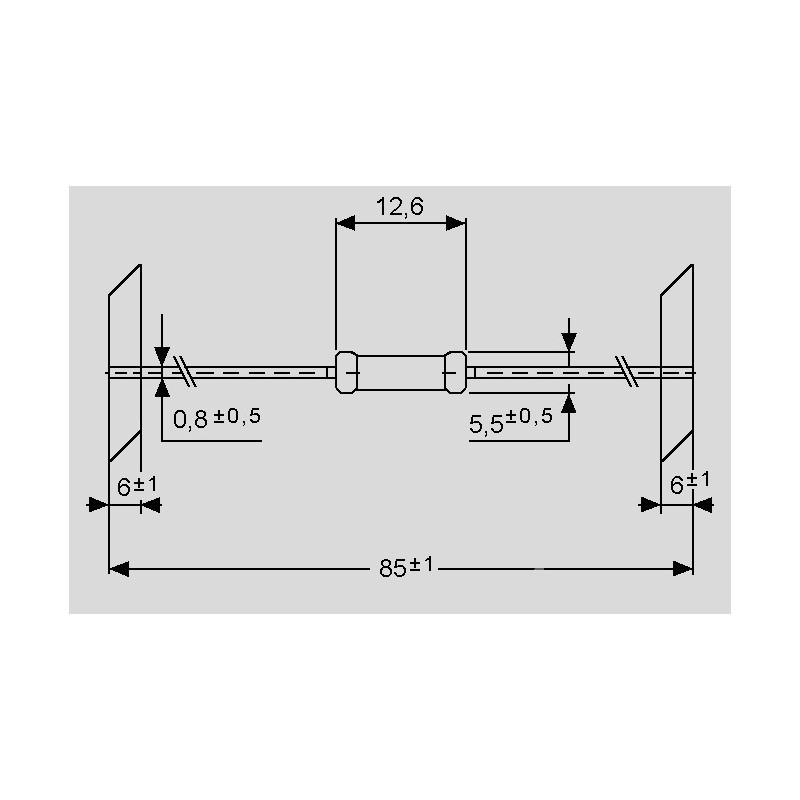

0613 housing

AC 03 0,47 R

35510 AC 03 0,47 R AC03000004707JAC00 AC03000004707JAC00 cemented wire resistors. * taped * wound on a ceramic core * enamelled resistor core * resistance tolerance: ±5% * power rating(P70): 2.5W * insulation voltage, max.: 75Veff * temperature range: -55...+350°C

Specifications

manufacturer
Manufacturer's name AC03000004707JAC00
Design 0613
Resistance [Ω] 0,47
Power [W] 2,5
Tolerance [%] 5
Data Sheet

Unit price

0,20 €

Stock: 1134
Further delivery:
CW 10/2025

Minimum order quantity 1 to 4 units or multiples of 10 plus 0 to 4 .
