0614 5% 0,22 R

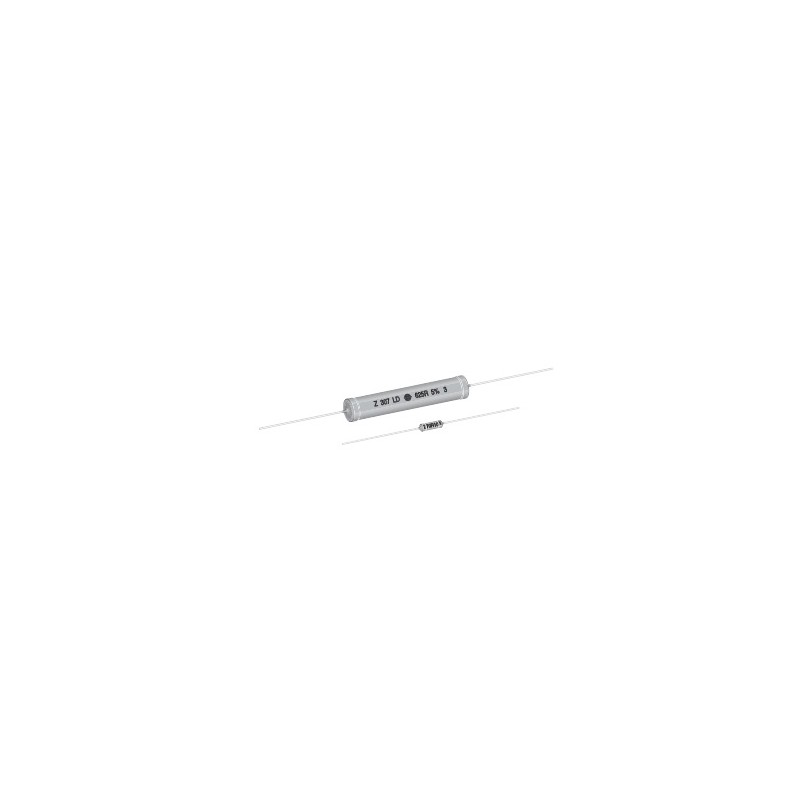

wirewound resistors Z302 by Vishay

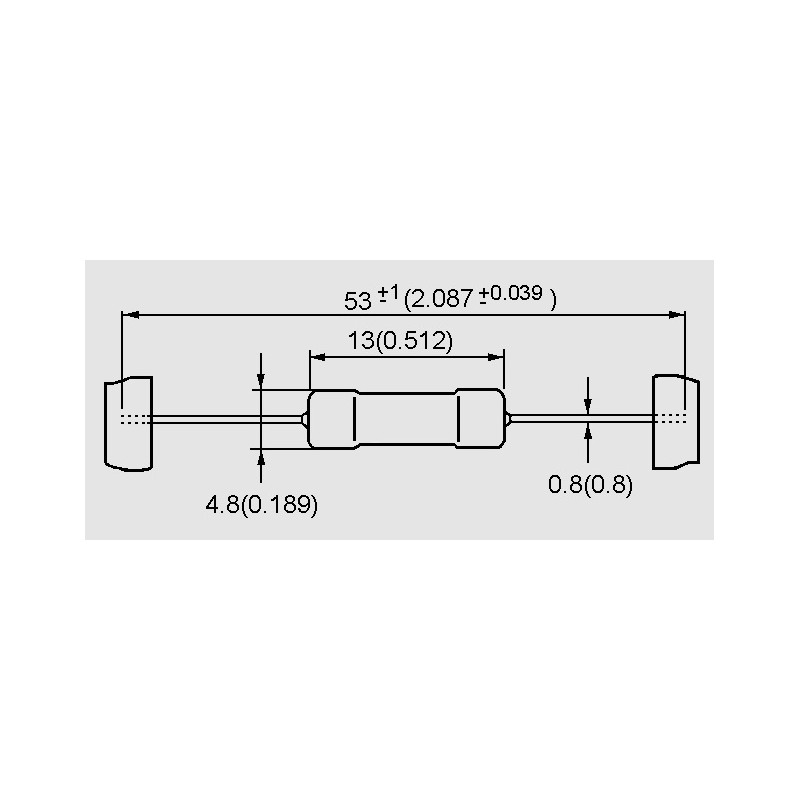

* housing: 0614
* taped
* series: Z302
* all welded construction
* ceramic core
* non-flammable cement coating
* resistance tolerance: ±5%
* power rating (P40): 3W
* working voltage, max.: (PxR)1/2
* resistance range (TC100...180ppm/K): 1.8R-3.3kΩ
* by Vishay
series Z302 by Vishay

0614 5% 0,22 R

42341 0614 5% 0,22 R Z32041412207J6C000 Z32041412207J6C000 wirewound resistors Z302 by Vishay. * housing: 0614* taped* series: Z302* all welded construction* ceramic core* non-flammable cement coating* resistance tolerance: ±5%* power rating (P40): 3W* working voltage, max.: (PxR)1/2* resistance range (TC100...180ppm/K): 1.8R-3.3kΩ* by Vishay

Specifications

manufacturer
Manufacturer's name Z32041412207J6C000
Design 0614
Resistance [Ω] 0,22
Power [W] 3
Tolerance [%] 5
Data Sheet

Unit price

0,673 €

Stock: 280
Further delivery:
CW 05/2025

Minimum order quantity 10 units or
multiples of 10.
