> Passive elements>Resistors>Metal oxide resistors>Vishay metal oxide resistors, 0207 housing, 5%, 1W, Draloric, WK2 series>WK2 1.5R

Manufacturers

WK2 1.5R

metal oxid resistors WK2 by Vishay Draloric

• housing: 0207
• power: 1 W
• tolerance: 5%
• style: taped
• rugged metal oxide film
• high power dissipation in small size
• high temperature coating, non-flammable
• operating voltage.: 500Vrms
• thermal resistance.: 140K/Ω
• insulation resistance.: 1000MΩ
• insulation voltage (1 min): 500Vrms
• temperature coefficient: ±200ppm/K
• temperature range: -55...+200°C
• climatic category: 55/200/56
• failure rate, max.: 1x10-8/h
• by Vishay Draloric
• weight: 0.2g

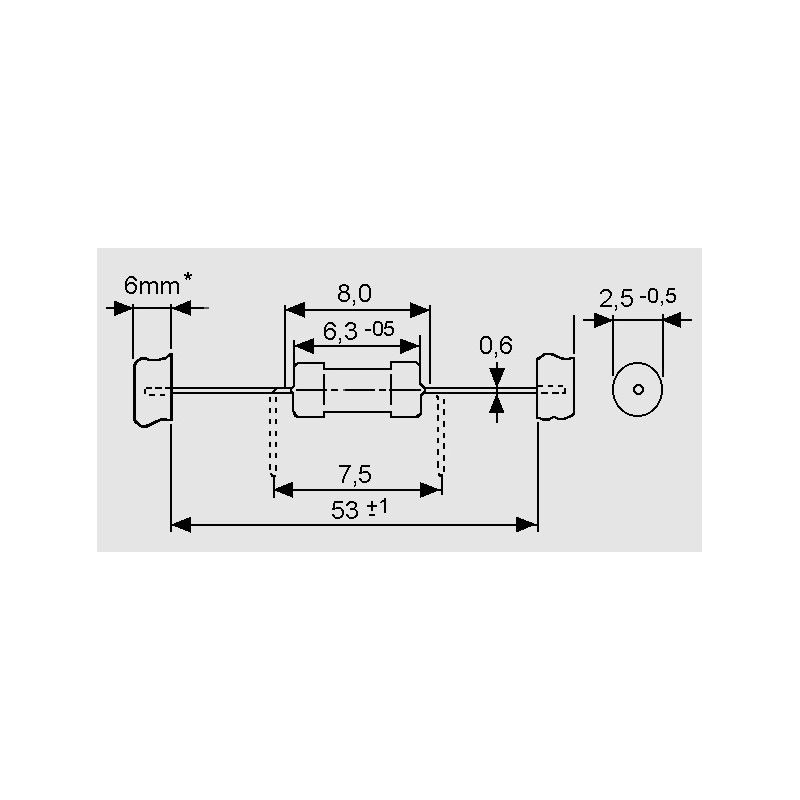

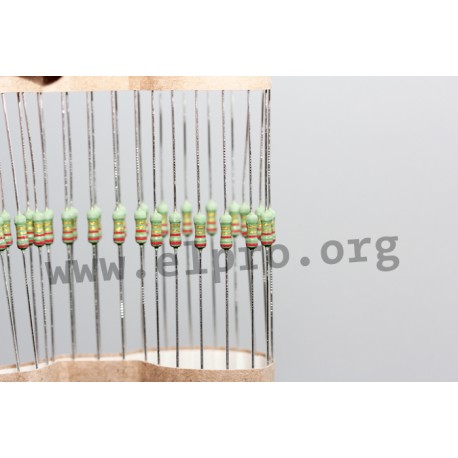

0207 housing

WK2 1.5R

44428 WK2 1.5R WK202070A1508J2200 WK202070A1508J2200 metal oxid resistors WK2 by Vishay Draloric. * housing: 0207* power: 1 W* tolerance: 5%* style: taped* rugged metal oxide film* high power dissipation in small size* high temperature coating, non-flammable* operating voltage.: 500Vrms* thermal resistance.: 140K/Ω* insulation resistance.: 1000MΩ* insulation voltage (1 min): 500Vrms* temperature coefficient: ±200ppm/K* temperature range: -55...+200°C* climatic category: 55/200/56* failure rate, max.: 1x10-8/h* by Vishay Draloric* weight: 0.2g

Specifications

manufacturer
Manufacturer's name WK202070A1508J2200
Design 0207
Resistance [Ω] 1,5
Power [W] 1
Tolerance [%] 5
Data Sheet

Unit price

0,066 €

Stock: 2.100
Next incoming goods:
CW 15/2025
2.000 units

Further delivery:
CW 29/2025

Minimum order quantity 100 units or
multiples of 100.
