WK2 220k

metal oxid resistors WK2 by Vishay Draloric

* housing: 0207
* power: 1 W
* tolerance: 5%
* style: taped
* rugged metal oxide film
* high power dissipation in small size
* high temperature coating, non-flammable
* operating voltage.: 500Vrms
* thermal resistance.: 140K/Ω
* insulation resistance.: 1000MΩ
* insulation voltage (1 min): 500Vrms
* temperature coefficient: ±200ppm/K
* temperature range: -55...+200°C
* climatic category: 55/200/56
* failure rate, max.: 1x10-8/h
* by Vishay Draloric
* weight: 0.2g

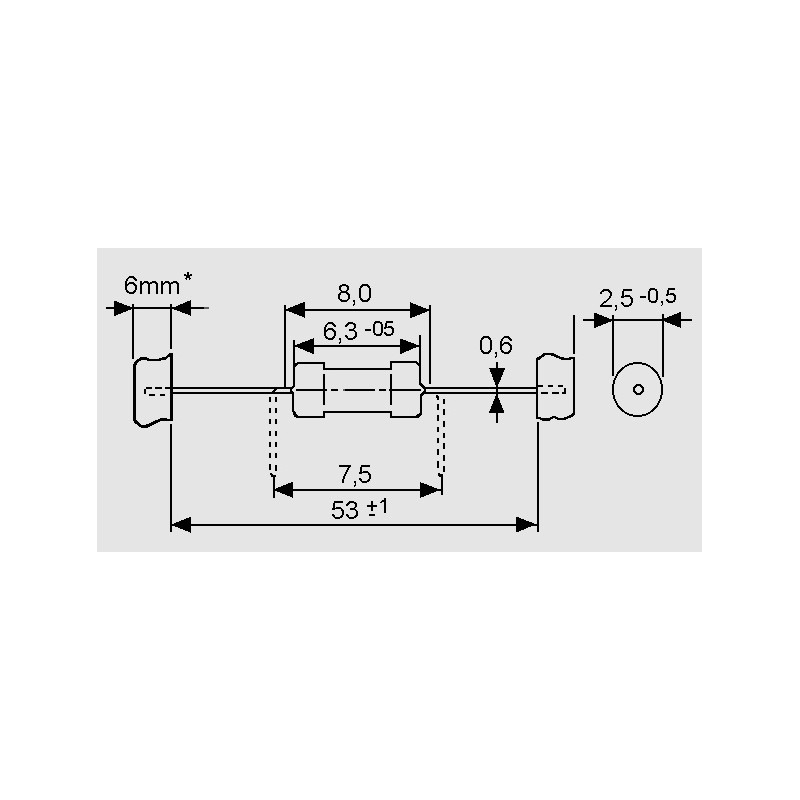

0207 housing

WK2 220k

44424 WK2 220k WK202070A2203J2200 WK202070A2203J2200 metal oxid resistors WK2 by Vishay Draloric. * housing: 0207* power: 1 W* tolerance: 5%* style: taped* rugged metal oxide film* high power dissipation in small size* high temperature coating, non-flammable* operating voltage.: 500Vrms* thermal resistance.: 140K/Ω* insulation resistance.: 1000MΩ* insulation voltage (1 min): 500Vrms* temperature coefficient: ±200ppm/K* temperature range: -55...+200°C* climatic category: 55/200/56* failure rate, max.: 1x10-8/h* by Vishay Draloric* weight: 0.2g

Specifications

manufacturer
Manufacturer's name WK202070A2203J2200
Design 0207
Resistance [Ω] 220k
Power [W] 1
Tolerance [%] 5
Data Sheet

Unit price

0,035 €

Stock: 3100
Next incoming goods:
CW 01/2025
4000 units

Further delivery:
CW 13/2025

Minimum order quantity 100 units or
multiples of 100.
