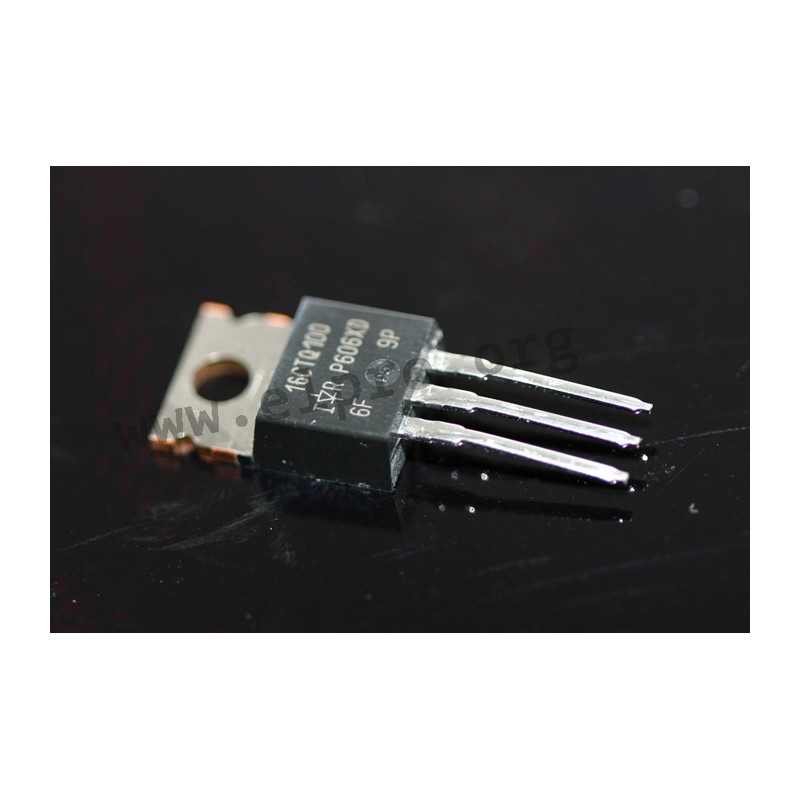

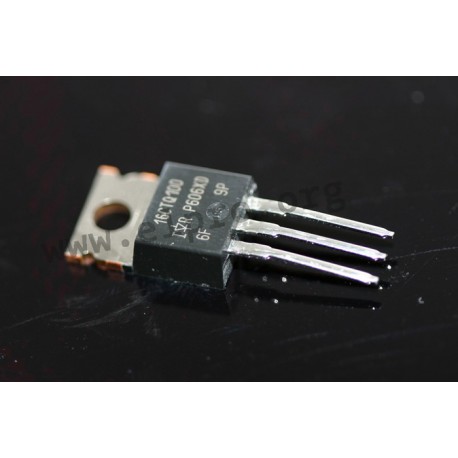

16 CTQ 100

Vishay Schottky diode series VS

  • Schottky diodes
  • in a TO220AB (10 C_/16 C_) resp. TO247AC housing (30 C_/40 C_)
  • operating temperature: -55 to +175°C

16 CTQ 100

118 16 CTQ 100 VS-16CTQ100-M3 VS-16CTQ100-M3 Vishay Schottky diode series VS. Schottky diodes in a TO220AB (10 C_/16 C_) resp. TO247AC housing (30 C_/40 C_) operating temperature: -55 to +175°C

Specifications

manufacturer
Manufacturer's name VS-16CTQ100-M3

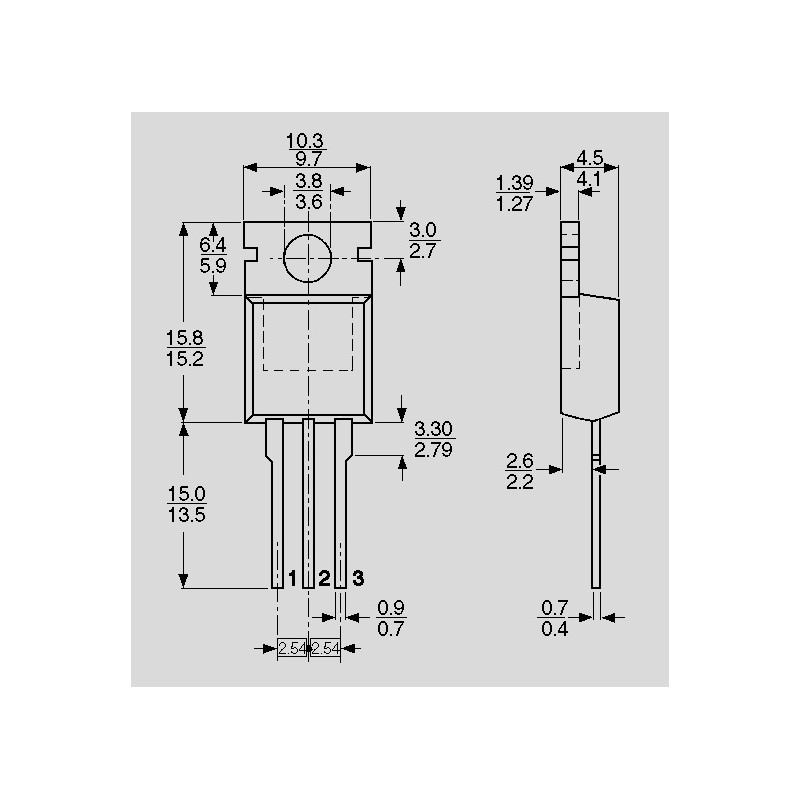

Case TO220AB
(Max.) peak recurrent reverse voltage [V] 100
Forward voltage [V] 0,72
(Max.) average forward (rectified) current [A] 2x8
Reverse current [µA] 0,55
Data Sheet

Unit price

0,855 €

Stock: 3830
Further delivery:
CW 08/2025

Minimum order quantity 10 units or
multiples of 10.
