36 MT 80

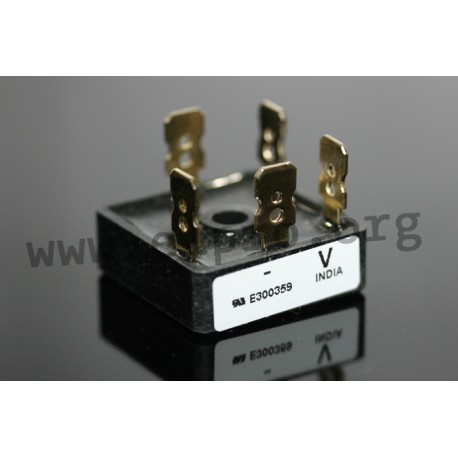

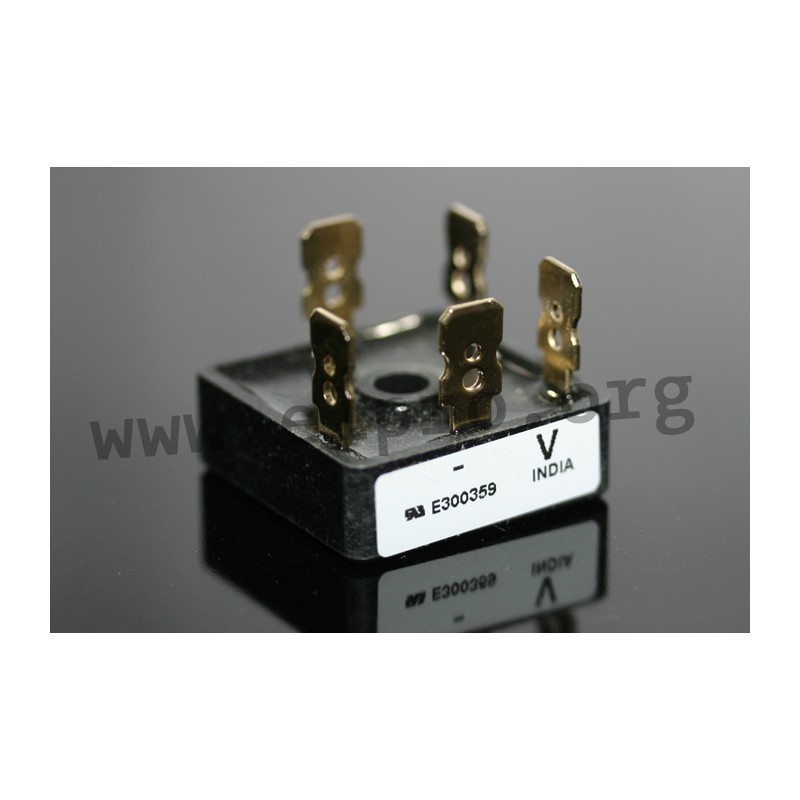

Vishay 3-phase bridge rectifier series VS-26MT and VS-36MT

  • 3-phase power bridge rectifiers
  • in an epoxy housing with cooling plate
  • maximal solderability: 260°C (10s)
  • operating temperature: -55 to +150°C
  • forward current: 25 to 35A
36 MT

36 MT 80

1960 36 MT 80 VS-36MT80 VS-36MT80 Vishay 3-phase bridge rectifier series VS-26MT and VS-36MT. 3-phase power bridge rectifiers in an epoxy housing with cooling plate maximal solderability: 260°C (10s) operating temperature: -55 to +150°C forward current: 25 to 35A

Specifications

manufacturer
Manufacturer's name VS-36MT80
Case 3-phase...
(Max.) peak recurrent reverse voltage [V] 800
Forward voltage [V] 1,19
(Max.) average forward (rectified) current [A] 35
Reverse current [µA] 100
(Max.) RMS voltage [V] 900
Data Sheet

Unit price

13,69 €

Stock: 36
Further delivery:
CW 14/2025
