> Semiconductors>Rectifiers>3-Phase power bridge rectifiers>Vishay 3-phase bridge rectifiers, 25 and 35A, VS-26MT and VS-36MT series>36 MT 160

Manufacturers

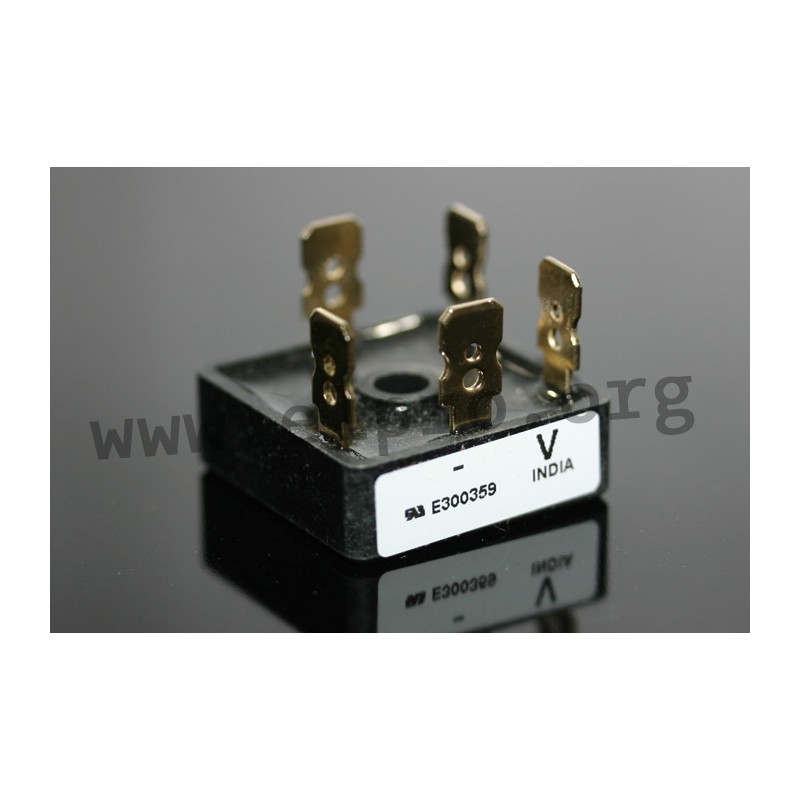

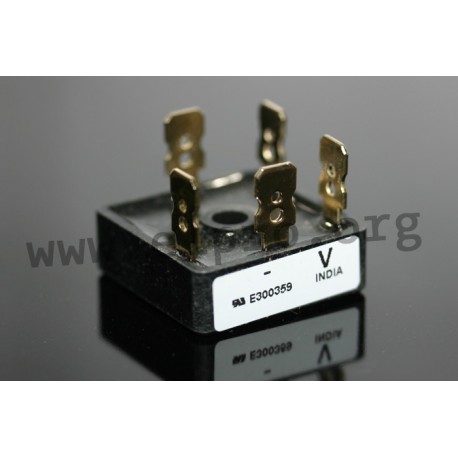

36 MT 160

Vishay 3-phase bridge rectifier series VS-26MT and VS-36MT

  • 3-phase power bridge rectifiers
  • in an epoxy housing with cooling plate
  • maximal solderability: 260°C (10s)
  • operating temperature: -55 to +150°C
  • forward current: 25 to 35A
36 MT 160

36 MT 160

1959 36 MT 160 VS-36MT160 VS-36MT160 Vishay 3-phase bridge rectifier series VS-26MT and VS-36MT. 3-phase power bridge rectifiers in an epoxy housing with cooling plate maximal solderability: 260°C (10s) operating temperature: -55 to +150°C forward current: 25 to 35A

Specifications

manufacturer
Manufacturer's name VS-36MT160

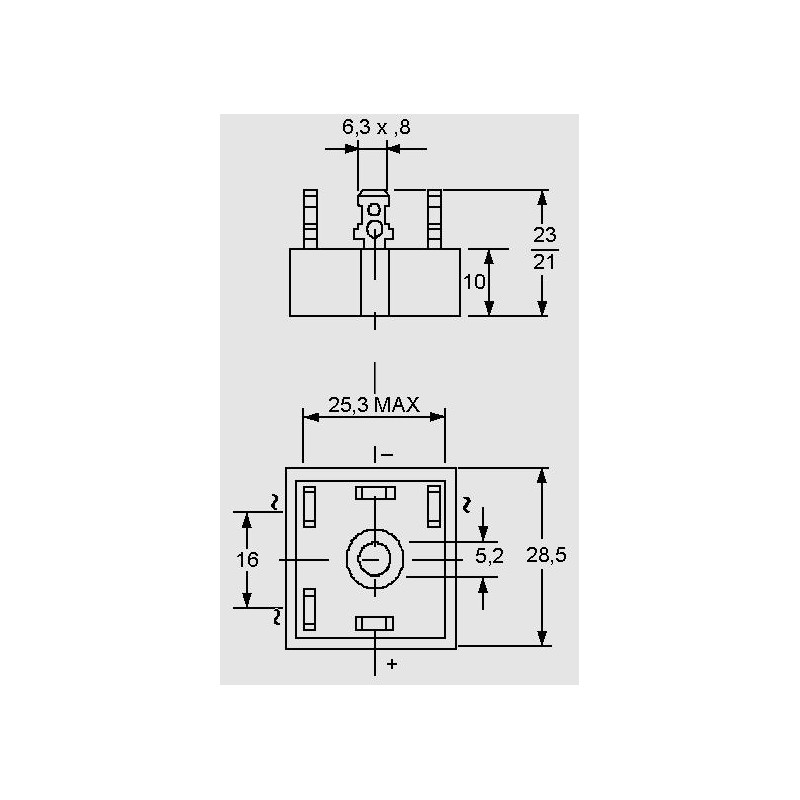

Case 3-phase...
(Max.) peak recurrent reverse voltage [V] 1600
Forward voltage [V] 1,19
(Max.) average forward (rectified) current [A] 35
Reverse current [µA] 100
(Max.) RMS voltage [V] 1700
Data Sheet

Unit price

9,89 €

Stock: 127
Further delivery:
CW 06/2025
